Automatic Galvanized Cold Roll Forming Machine 380v 3 Phase 50 Hz Frequency

Automatic Galvanized Cold Roll Forming Machine 380v 3 Phase 50 Hz Frequency
Automatic Galvanized Cold Roll Forming Machine 380v 3 Phase 50 Hz Frequency Automatic Galvanized Cold Roll Forming Machine 380v 3 Phase 50 Hz Frequency Automatic Galvanized Cold Roll Forming Machine 380v 3 Phase 50 Hz Frequency Automatic Galvanized Cold Roll Forming Machine 380v 3 Phase 50 Hz Frequency

Large Image :  Automatic Galvanized Cold Roll Forming Machine 380v 3 Phase 50 Hz Frequency

Product Details:
Place of Origin: China
Brand Name: CHBEST
Certification: CE,BV,SGS
Model Number: YX-300
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD15000-USD36500/set
Packaging Details: 20GP/40GP container
Delivery Time: 5-60days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 20sets/month

Automatic Galvanized Cold Roll Forming Machine 380v 3 Phase 50 Hz Frequency

Description
Name: Automatic Galvanized Material Steel Z Purlin Roll Forming Making Machine Line Color: As Your Request
Customized: Yes Material: Galvanized
Warranty: 2 Years Cutting Type: Hydraulic
Condition: New Use: Roof
Voltage: 380v Production Capacity: 15m/min
High Light:

c channel roll forming machine

,

steel frame roll forming machine



Automatic Galvanized Material Steel Z Purlin Roll Forming Making Machine Line



Technical Detail

A. General

Suitable Material Hot rolled strip steel, Q235 or equivalent
Material Thickness 1.5-3.0 mm
Material Width 175-465mm
Dimension About 10.0*1.2*1.75m(L*W*H) , as per the drawing
Working Space About 20.0*2.7m(L*W)

Length of

the Sheet

You can set the length according to your need.

It is controlled by PLC

which can ensure the accuracy of ±1mm.

Cutting

Automatically stop and cutting when it comes to the set

length.



B. Components Details

Roller Material GCR15 steel after treatment
Main Frame 350# steel. More stable and no shaking.
Middle Plate

20mm. We use thicker plates to ensure stability

of our products.

Forming Steps 11-16, according to the drawing.
Shaft Material Φ70 mm, high grade 45# steel.

Treating process: tempering- finish turning,

high rigidity, hard to deform.

Cutting

Blade Material

Cr12, hardness HRC60-62.
Treating process: heat treatment- plane abrasion- wire electrode cutting.



C. Electric Components

Suitable Power 380V, 50 Hz, 3 phase or according to your need.
Screen 7 inch touch screen, easy to operate.
PLC Delta DVP14ES

Well-adapted to various conditions, such as moisture,

electromagnetic disturbance.

Frequency Converter

Delta VFD-M. It has the advantage of slowing down before cutting,

to ensure the length accuracy (±1mm,

far better than industrial standard ±3mm).

Length

Measurement Device

Omron, made in Japan.
It features with high accuracy and stability.

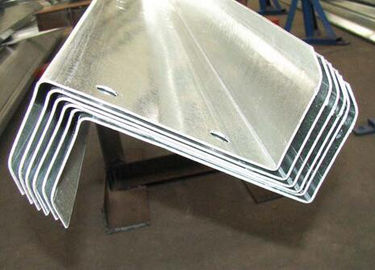

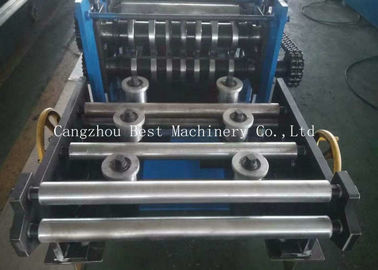

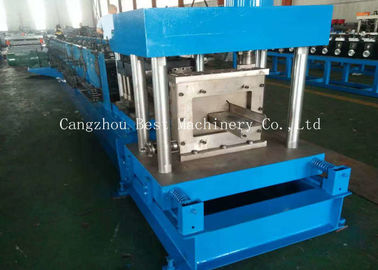

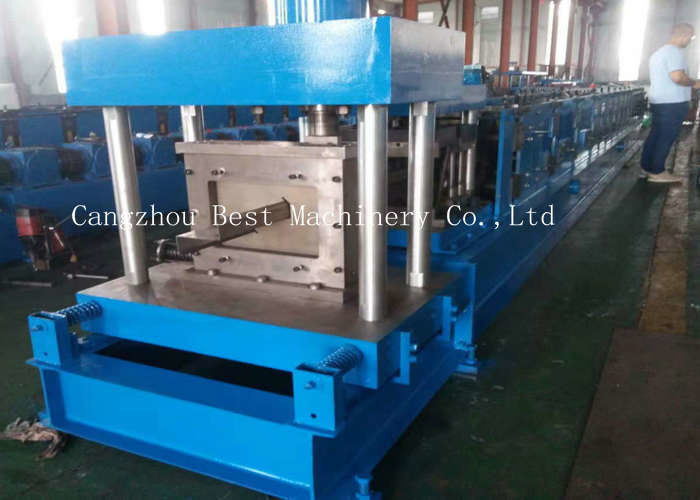

Machine pictures:

Automatic Galvanized Cold Roll Forming Machine 380v 3 Phase 50 Hz Frequency 0

Automatic Galvanized Cold Roll Forming Machine 380v 3 Phase 50 Hz Frequency 1



Packing and Loading:

1. One 40ft container for loading one set machine with manual decoiler;

2. The whole Wiped Anti Rust Oil, PLC controller covered by foam film;

3. Spare parts and some small parts packed in plastic tooling box;

4. All Components Fixed by steel wire with Container.

Automatic Galvanized Cold Roll Forming Machine 380v 3 Phase 50 Hz Frequency 2Automatic Galvanized Cold Roll Forming Machine 380v 3 Phase 50 Hz Frequency 3

Automatic Galvanized Cold Roll Forming Machine 380v 3 Phase 50 Hz Frequency 4Automatic Galvanized Cold Roll Forming Machine 380v 3 Phase 50 Hz Frequency 5



Our service:

1. One year warranty, whole life technical support.
2. Installation & adjustment: We can take video for the customer and customer can also come to our factory, we can train customer how to install and adjust the machine.
3. Oversea service: the buyer should charge of visa, return ticket, food and accommodation overseas and pay salary everyday.



FAQ:

1.Q:Are you a manufacturer?

   A:Yes absolutely. Welcome a lot for your visiting to us.



2.Q:What’s the delivery time?

   A:Normaly will take 60days, for small lines will take 30 days.



3.Q:Do you have after-sale support?

   A:Yes, we’re always here for giving you advice and support for technical details since we have senior technician.



4.Q:Is there quality control when manufacturing the lines?

   A:Yes, we have a group of team who will be responsible for quality control from laying off the raw material, processing the rollers and the other parts, make treatment on the roller surface and shaft, assembling, testing and packaging.



5.Q:What’s your strength comparing to the other supplier?

   A:We’ll supplying you the best quality and service. We’ll give you good advise beyond your requirements. The lines are easily for installation and with low mantenance requirements.



6.Q:Can we be your agency abroad?

   A:Surely if you have business for roll forming lines and we will welcome a lot for cooperating together.
