Color Steel Glazed Tile/Brick Tile/Q Tile Making Machine PLC Control 4-6m/Min Speed

Color Steel Glazed Tile/Brick Tile/Q Tile Making Machine PLC Control 4-6m/Min Speed
Color Steel Glazed Tile/Brick Tile/Q Tile Making Machine PLC Control 4-6m/Min Speed Color Steel Glazed Tile/Brick Tile/Q Tile Making Machine PLC Control 4-6m/Min Speed Color Steel Glazed Tile/Brick Tile/Q Tile Making Machine PLC Control 4-6m/Min Speed Color Steel Glazed Tile/Brick Tile/Q Tile Making Machine PLC Control 4-6m/Min Speed

Large Image :  Color Steel Glazed Tile/Brick Tile/Q Tile Making Machine PLC Control 4-6m/Min Speed

Product Details:
Place of Origin: China Hebei
Brand Name: CHBEST
Certification: CE/BV/SGS
Model Number: XY750
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: plastic film for naked machine
Delivery Time: 20-30 days
Supply Ability: 20 sets/month

Color Steel Glazed Tile/Brick Tile/Q Tile Making Machine PLC Control 4-6m/Min Speed

Description
Product Name: Hydraulic Cutting Color Steel Glazed Tile Making Roll Forming Machine Warranty: 2 Years
Machine Speed: 4-6m/min Material Thickness: 0.3-0.8mm
Driven System: Chain Or Gear Box Control System: PLC
Cutting Type: Hydraulic
High Light:

roof panel roll forming machine

,

steel roof tile forming machine



Hydraulic Cutting Color Steel Glazed Tile Making Roll Forming Machine



Glazed Tile are widely used in building: the steel-structured large-scale warehouses, plants, supermarkets, shopping malls, trade markets, stadiums, holiday villages, sanatoriums, hotels, villas, residences, and different kinds of greenhouses. What's more, equipment can be designed and manufactured as customers'

requests.



Draft parameter



1. Steel Sheet Thickness: 0.3-0.8mm (depend on requirement )
2. Transmission way: single chain
3. Transmission material: 45# steel, high frequency quenching
4. Material of blad: Cr12, quenching treatment
5. Capacity of Decoiler: 5 ton passive decoiler
6. Forming Speed: 4-6m/min
7. Roller Groups: 16 stations
8. Roller Material: 45# steel, high frequency quenching treatment, HRC58-62
9. Feeding material: galvanized steel or color-coated coil
10. Principal Axis: 45# high grade steel with quenching treatment
11. Main motor power: 7.5 Kw

12. Hydraulic power: 5.5Kw



Working flow



Decoiler----feeding----roll forming----pressing----cut to length----output table

Machine components



No. Name Qty
1. De-coiler 1 Set
2. Roll Forming Machine 1 Set
3. Pressing Device 1 Set
4. Hydraulic Cutting Device 1 Set
5. PLC Control Box 1 Set
6. Hydraulic Pump 1 Set
7. Stacker 1 Set


Parameter

No. Item Specification
1 Steel coil Width

Max

1250/1220/1219/1000/914mm

Material Ppgi/gi/gl/Alu-zinc
Thickness

0.21-0.29mm

0.3-0.6mm

0.3-0.8mm

Hardness Normal hardness/G550/HRB90
2 Forming Frame 300-450mm Height
Stations

As design of drawing

Main: 9-18 stations

Rollers

High grade No 45# steel with

hard 0.05mm chromed

Shaft High grade No 45# steel
Diameter of shaft

As design of drawing

Main: 70-80mm

Chain Main: 1-1.5inch
3 Control PLC control China/Taiwan/Japan/Germany brand
Main motor Main: 3-11kw
Language English or as your request
4 Cutting Cutter High grade Cr12 steel
Cutting system Hydraulic
Hydraulic pump Main: 3-7.5kw
Cutter frame Steel plate welding
5 Decoiler Manual 5 Tons
6 Product Receiving table Manual



Our Service



Before ordering:

We can help to analyze the roof tile in your market. Which one is popular and which one will be popular.

Then your product is hot sale roof tile .



We can confirm all details of the roof tile roll forming machine together, including the drawing, thickness of

material, hardness of the steel coil, the input width of the steel coil, capacity of the roll forming machine.



We can help you to find the real manufacturer of steel coil manufacturer. Say bye to Trade company. So you can order the material coil with lowest price.



During production:

We can send the pictures to show you the schedule of your roll forming machines.

We will show you my blogger account for you to learn knowledge of roll forming machine if you would like

We will ask you what color of the roll forming machine body. Produce the machine under your suggestion



After-sale service:

We supply one year guarantee for the machine. The parts of the roll forming machine are free to send you and you will pay the cost of freight. And you can aslo solve it if you ordered more parts for your rol forming machine



We supply all life tech support of our roll forming machines, Any questions, you can contact me by whatsapp.



Photos

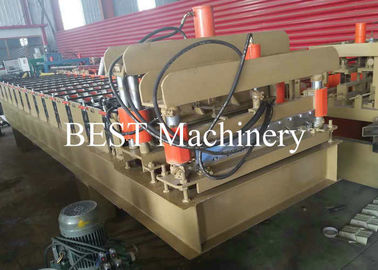

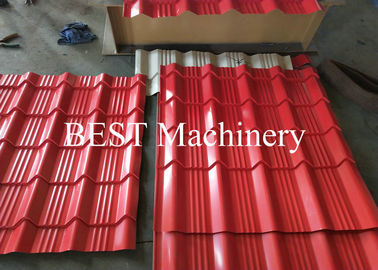

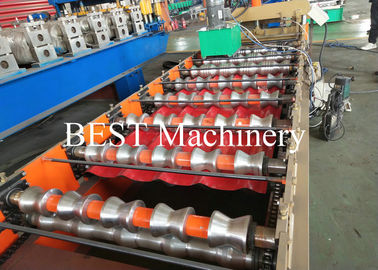

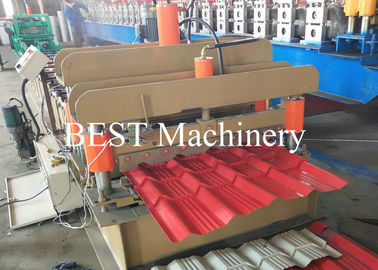

Color Steel Glazed Tile/Brick Tile/Q Tile Making Machine PLC Control 4-6m/Min Speed 0





Color Steel Glazed Tile/Brick Tile/Q Tile Making Machine PLC Control 4-6m/Min Speed 1Color Steel Glazed Tile/Brick Tile/Q Tile Making Machine PLC Control 4-6m/Min Speed 2
