Product Details:
Place of Origin: China Hebei
Brand Name: CHBEST
Certification: CE/BV/SGS
Model Number: XY80-300
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: plastic film for naked machine
Delivery Time: 30-40 days
Supply Ability: 20 sets/month

Pre Punching / Post Cutting C Z U Purlin Roll Forming Machine Gcr15 Steel Roller Material

Description
Product Name: In Stock Pre Punching/Post Cutting C Z U Purlin Roll Forming Machine Machine Speed: 4-6m/min
Machine Dimention: 7.5mx1.8mx1.4m Roller Material: Gcr15 Steel
Cutting Type: Hydraulic Warranty: 2 Years
Life Time: More Than 10 Years Delivery Date: 5days
High Light:

c channel roll forming machine

,

steel frame roll forming machine

,

pre channel forming machine



In Stock Pre Punching/Post Cutting C Z U Purlin Roll Forming Machine



Advantage:One machine can produce  C Z U purlin, size range 80--300mm,machine can change size automatically, save cost and space.


Working flow


Decoiler-----feeding----- leveling ------- punching------roll forming -----cutting----output table

Machine Component



De-coiler------------------------------------------1set

Leveling device----------------------------------1set

Forming machine--------------------------------1set

Cutting device -----------------------------------1set

Punching device----------------------------------1set

PLC control box ---------------------------------1set

Hydraulic pump station-------------------------1set

Production support table-----------------------1set



Parameter



1. Configurations Manual Uncoiler, Guiding Platform, 9 Shaft Strip Leveler, Main Machine Of Roll Forming, Hydraulic Motor, Pre-Punching Device,Pre-Cutting Device, Hydraulic Station, PLC Control, Supporter Table.
2. Control System PLC Inverter Encoder Touch Screen
3. Main Frame 400mm H-Beam
4. Total Power 22 kw
5. Power Supply 380V, 3-Phase,50Hz
6. Forming Speed 12-24m/min
7. Roll Station 18 stands
8. Roller Diameter 80mm
9. Effective Width 80-300mm
10. Feeding Thickness 1.5-3.0mm
11. Backboard Thickness 20mm
12. Cutter Standard GCr12
13. Roller Standard Gcr15#
14. Overall Size About 8500×1000×1400mm
15. Total Weight About 10T
16. Custom According to customer's requirements



Components specification



(1) Manual Uncoiler

Max.Capacity:5T



(2)Pre-Punching Device

It adopts hydraulic motor drive and PLC computer-controlled to fix length of die cutting.

Cutting length tolerance:±2mm

Material:GCr12 with quenched treatment 60-62°C



(3)Hydraulic System

Match equipment: Electro motor, a set of hydraulic tank, a set of hydraulic oil pump, and electromagnetic valve.

Power: 22 KW



(4)Control System

It adopts PLC control system, Color Touch Screen; the target length can be adjusted by it.

Computed mode: automatic or manual



(5)Encoder

The counter gauges length, and modulates pulses.



(6)Simple Stack

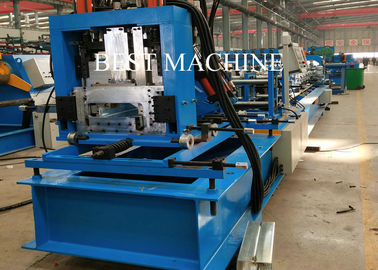

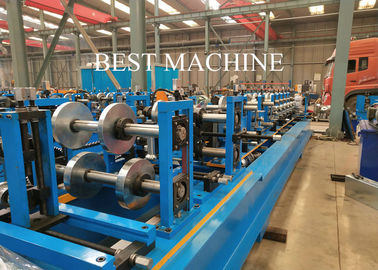

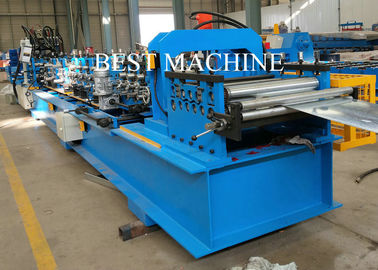

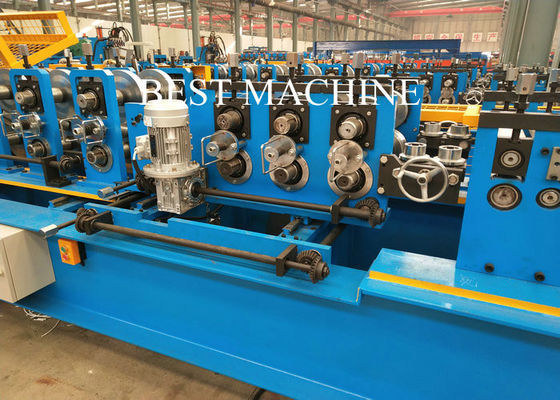

Machine and Product Photo


Pre Punching / Post Cutting C Z U Purlin Roll Forming Machine Gcr15 Steel Roller Material 0Pre Punching / Post Cutting C Z U Purlin Roll Forming Machine Gcr15 Steel Roller Material 1



Pre Punching / Post Cutting C Z U Purlin Roll Forming Machine Gcr15 Steel Roller Material 2



Installation and Training:



① If buyers visit our factory and check the machine, we will teach you how to install and use the machine, and also train your workers/technician face to face.
② Without visiting, we will send you user manual and video to teach you to install and operate.
③If buyer needs our technician to go to your local factory,please arrange round trip tickets, food and hotel and everyday salary USD100, visa cost and necessary things.
