Product Details:
|
| Product Name: | Africa Pouplar Ridge Cap Roll Forming Machine For Roof Tile/IBR Roof Sheet | Machine Speed: | 8-12m/min |
|---|---|---|---|
| Machine Dimention: | 5.5mx1mx1.4m | Machine Power: | 3kw+3kw |
| Control System: | PLC | Cutting Type: | Hydraulic |
| Warranty: | 18months | ||
| High Light: | ridge cap forming machine,ridge cap machine |
||

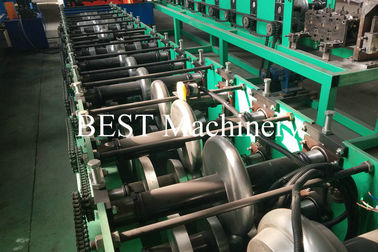

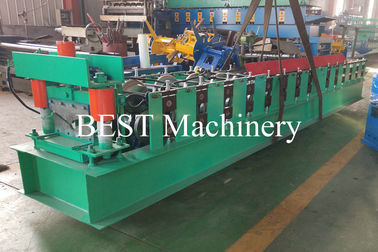

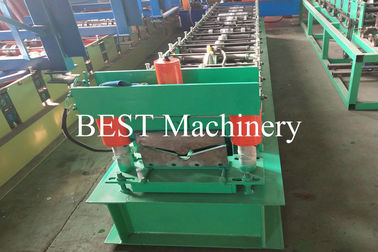

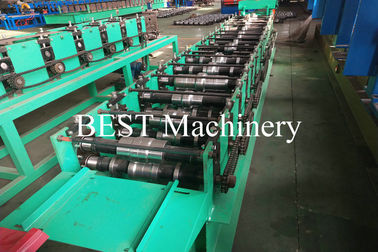

Africa Pouplar Ridge Cap Roll Forming Machine For Roof Tile/IBR Roof Sheet
Product Description
| Name | Africa Pouplar Ridge Cap Roll Forming Machine For Roof Tile/IBR Roof Sheet |
| Suitable Material | Colored or galvanized steel coil, HRB60 or equivalent |
| Thickness Range | 0.3-0.8 mm |
| Coil Width Range | According to your actual drawing. |
| Electric Power |
380V, 50 Hz, 3 phase or according to your need. |
| Dimension | About 6.4*0.6*1.1m(L*W*H), as per the drawing |
| Cutting | Automatically stop and cutting when it comes to the set length. |
| Length of the Sheet |
You can set the length according to your need. It is controlled by PLC length accuracy: ±1mm. |
Working Flow:
Decoiler------feeding------roll forming------cut to length-----output table
Main technical parameter:
1.DECOILER
(1) Max. Width: 1250 mm
(2) Inner Diameter: Φ450 – Φ550 mm
(3) Out Diameter: 1500 mm
(4) Max. Loading Capacity: 5000 kgs
(5)Type: Manual
2. ROLL FORMING MACHINE
(1) Material Thickness: 0.3-0.8mm PPGI and GI
(2) NO. of roller Stations: 19groups
(3) Material for Rollers: high grade 45# steel polished and coated with chrome HRC55-60°
(4) Material for shaft: high grade 45# steel polished and coated with chrome HRC55-60°
(5) Diameter of shaft: 70mm
(6) Frame panel thickness: 20mm
(7) Bottom frame: 350 H-section steel
(8) Motor Power: 5.5kw
(9)Driven type: 1.0＂Chain
(10)Speed:8-12m/min
3. CUT-OFF DEVICE
(1)Material for Cut-Off Modular:Cr12 steel after treatment
(2)Hardness for Heat Treatment:HRC55 – 60°
(3)Cut-Off Type: Hydraulic, Automatic Cut-Off
(4) Motor for Hydraulic Stand: 3 kW
4.PLC CONTROL BOX
(1) Type: PLC Frequency Control System with touch screen
(2) PLC Brand:Delta
(3) Encoder Brand: Omron
(4)Length Error: ±2mm
(5)Language: English and Chinese
(6)Voltage: 380v/50HZ, 3Phase
(it depends on customer requirement)
5. HYDRAULIC PUMP STATION
(1) Motor power: 3 kw
(2)Oil type: 46# hydraulic oil
(3) Pump brand: China brand
6. PRODUCTION SUPPORT TABLE
(1) No power type
(2)Length: 2m
Company profile
Cangzhou Best Machinery Manufacuring co., LTD is specialized in the manufacture of high-end equiment cold bending forming equipment manufacturer,has a professional engineer for technical guidance.Engineers engaged in cold bending mechanical equipment design for more than 20years,has a wealth of design concept.Can provide users with a special type of design and manufacture.At the same time to sell equipment for installation,guidance,production,commissioning one-stop service.
Packing&Loading
1. one 40ft container for loading one set machine with manual decoiler;
2. the whole Wiped Anti Rust Oil, PLC controller covered by foam film;
3. Spare parts and some small parts packed in plastic tooling box;
4. All Components Fixed by steel wire with Container.
