Product Details:
|
| Product Name: | Automatic Change Size Z Section/Purlin Roll Forming Machine Pre Punching | Machine Speed: | 4-6m/min |
|---|---|---|---|
| Roller Material: | Gcr15 Steel | Cutting Type: | Hydraulic |
| Warranty: | 2 Years | Life Time: | More Than 10 Years |
| High Light: | channel roll forming machine,steel frame roll forming machine |
||
Automatic Change Size Z Section/Purlin Roll Forming Machine Pre Punching
Advantage:One machine can produce C Z U purlin, size range 80--300mm,machine can change size automatically, save cost and space.
Working flow
Decoiler-----feeding----- leveling ------- punching------roll forming -----cutting----output table
Machine Component
De-coiler-------------------------------------------1set
Forming machine--------------------------------1set
Cutting device -----------------------------------1set
PLC control box ---------------------------------1set
Hydraulic pump station-------------------------1set
Production support table-----------------------1set
Parameter
Article No. | Item Name | Specification |
1 | Width of feeding material | <1000mm coil sheet |
2 | Thickness of feeding material | 1.5-3.0 mm coil sheet |
3 | Roller station | 15 stations |
4 | Shaft Diameter | 75-95 mm |
5 | Productivity | 8-25 m/min |
6 | Rollers' material | Bearing steel |
7 | Shaft material | 45# steel |
8 | Weight | 9 tons |
9 | length | 8-11m |
10 | Voltage | 380V 50Hz 3phases |
11 | Control | PLC |
12 | Decoiler | 8 Tons |
13 | Motor | 22 kw |
14 | Driving way | Chain transmission |
15 | Chain size | 1.5-2 inch |
16 | Cutting system | Hydraulic cutter |
Installation and Training:
① If buyers visit our factory and check the machine, we will teach you how to install and use the machine, and also train your workers/technician face to face.
② Without visiting, we will send you user manual and video to teach you to install and operate.
③If buyer needs our technician to go to your local factory,please arrange round trip tickets, food and hotel and everyday salary USD100, visa cost and necessary things.
We have a wonderful team with highly technology and excellent sales, which offer professional products and related service. We paid attention to quantity and after service, got great feedback and honor from all the clients. We have a great team for after service. We have sent several patch after service team to oversea to finish the products installation and adjustment.
Our products were sold to more than 20 countries already. Also included US and Germany.
Main product :
Roof roll forming machine
C and Z purlin roll forming machine
Downpipe roll forming machine
Hydraulic decoiler
Light keel roll forming machine6
Bending machine
Shearing machine
slitting machine
Roller shutter door roll forming machine

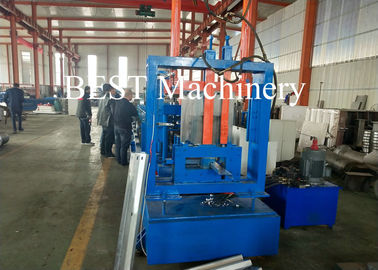

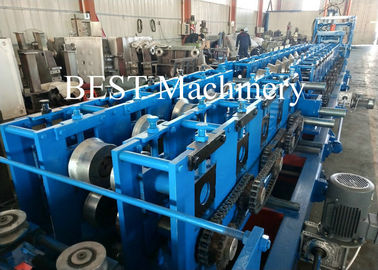

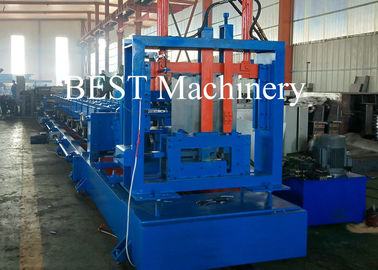

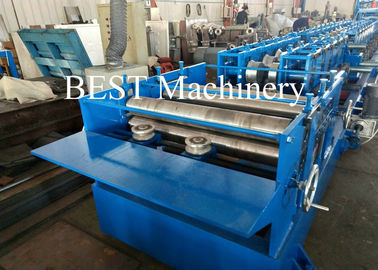

Machine and Product Photo
