Product Details:
|
| Name: | Compleate Line Customized Metal Roof Sheet Roll Forming Making Machine | Roller Material: | 45# Steel |
|---|---|---|---|
| The Shaft: | 70mm | Cutting Blade Material: | Cr12 |
| Screen: | Color Touch Screen | Bottom Frame: | 350H Steel |
| Control System: | PLC | Type: | Roof Sheet Machine |
| Forming Speed: | 20-25m/min | ||
| High Light: | metal roofing equipment,metal sheet roof roll forming machine |
||
Compleate Line Customized Metal Roof Sheet Roll Forming Making Machine
1. Machine details:
|
DECOILER |
|
ROLL FORMING MACHINE (2) NO. of roller Stations: 16groups (5) Diameter of shaft: 70mm |
|
CUT-OFF DEVICE (1)Material for Cut-Off Modular:Cr12 steel after treatment |
|
PLC CONTROL BOX (4) Length Error: ±2mm (5) Language: English and Chinese (6) Voltage: 380v/50HZ, 3Phase (it depends on customer requirement) |
|
HYDRAULIC PUMP STATION (1) Motor power: 3 kw |
|
PRODUCTION SUPPORT TABLE (1) No power type |
2. Parameters
| Main parameters of roofing sheet manufacturing machine | ||
| 1 | Suitable to process | Color steel plate, galvanized sheet, aluminum coils and etc. |
| 2 | Width of the feeding material | 1200mm/1000mm |
| 3 | Roller station | 16 rows |
| 4 | Thickness of feeding material | 0.3-0.8mm |
| 5 | Productivity | 20-25m/min |
| 6 | Rollers' material | 45# forging steel |
| 7 | Diameter of shaft | 70 mm |
| 8 | Weight | About 3.0 T |
| 9 | Size | 6.8*1.55*1.45mm |
| 10 | Voltage | 380V 50Hz 3phases |
| 11 | Roller's material | 45# forging steel |
| 12 | Wall thickness of main forming machine |
20mm steel plate
|
| 13 | Main forming machine body | 350mm H steel |
| 14 | Motor power | 3 3 kw |
| 15 | Voltage | 380V, 50Hz,3Phase |
3. Packing
Standard Export Packing.
1). One 40ft container for loading one set machine with manual decoiler;
2). The whole Wiped Anti Rust Oil, PLC controller covered by foam film;
3). Spare parts and some small parts packed in plastic tooling box;
4). All Components Fixed by steel wire with Container.
4. Installation and Training:
① If buyers visit our factory and check the machine, we will teach you how to install and use the machine, and also train your workers/technician face to face.
② Without visiting, we will send you user manual and video to teach you to install and operate.
③ If buyer needs our technician to go to your local factory,please arrange board and lodging and other necessary things.
5. Company information:
Cangzhou Best Machinery Manufacturing co., LTD is specialized in the manufacture of high-end equipment cold bending forming equipment manufacturer,has a professional engineer for technical guidance.Engineers engaged in cold bending mechanical equipment design for more than 20 years,has a wealth of design concept.Can provide users with a special type of design and manufacture.At the same time to sell equipment for installation,guidance,production,commissioning one-stop service.

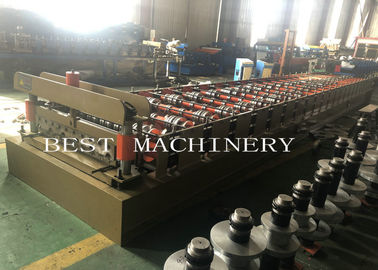

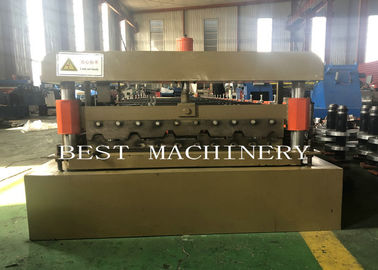

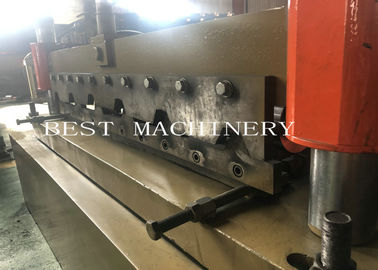

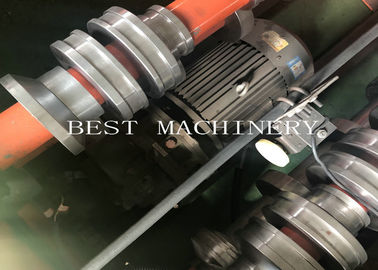

6. Machine photos for reference:
