Product Details:
|
| Product Name: | Road Safety W Beam Crash Barrier Gear Box Guardrail Roll Forming Machine | Cutting Type: | Hydraulic |
|---|---|---|---|
| Punching Type: | Hydraulic | Control System: | PLC |
| Warranty: | 2 Years | Life Time: | More Than 10 Years |
| High Light: | guardrail roll forming machine,crash barrier roll forming machine |
||
Road Safety W Beam Crash Barrier Gear Box Guardrail Roll Forming Machine
Highway guardrails provide a visual and physical barrier between traffic and work areas. It is used for protection against accidents due to lift trucks or other mobile equipment in dock areas, aisles, around special equipment, . Reduce costly damage to equipment and inventory. Modular system is easily expanded or moved as needed. For indoor or outdoor use.
Highway Guard rail or guardrail, sometimes referred to as guide rail or railing, is a system designed to keep people or vehicles from (in most cases unintentionally) straying into dangerous or off-limits areas. A handrail is less restrictive than a guard rail and provides both support and the protective limitation of a boundary.
We can make two waves, three waves for highway guardrail.
Working flow
Decoiler-----feeding----- leveling ------roll forming ------ punching-----cutting----output table
Machine Component
| Name | NO. | Unit |
| 1.De-coiler | 1 | set |
| 2.Forming machine | 1 | set |
| 3.Punching device | 1 | set |
| 4.Cutting device | 1 | set |
| 5.PLC control box | 1 | set |
| 6.Hydraulic pump station | 1 | set |
| 7.Production support table | 1 | set |
Punching device
Hydraulic station motor:18.5KW,
Piston pump:25Mpa,
Working table:900 mm X900 mm,
Cutter material:Cr12mov,
Device Size: 1400*1100*1200mm,
Hole size: as per the profile drawing
Forming step: 14
Motor power: 45Kw,
Reducer: ZQ650,
Spindle diameter: ¢80mm,material 45 # quenching and tempering treatment
Roller material: Gcr15(HRC55～60),quenching to 58 ° -62 °, surface plating treatment,
Forming speed: 12～22m/min(4320mm--3pieces)
Transmission: gear-box driving,
Shear type: hydraulic punching,
Blade material: Cr12 and quenched to 58 ° -62 °,
Cylinder diameter: 250mm,
Working pressure: 30mpa,
ELECTRONIC CONTROL SYSTEM
(1) Type: PLC Frequency Control System with touch screen
(2) PLC Brand: Delta
(3) Encoder Brand: Omron
(4)Length Error: ±2mm
(5)Language: English and Chinese
(6)Voltage: 380v/50HZ, 3Phase (it depends on customer requirement)
Processing Flow

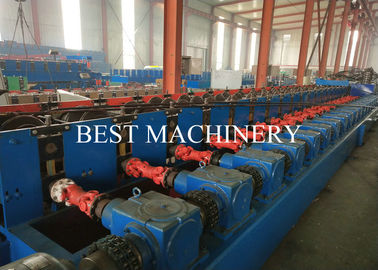

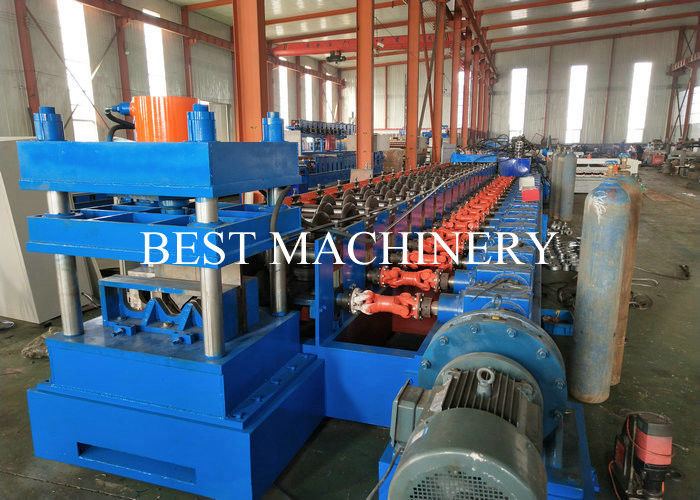

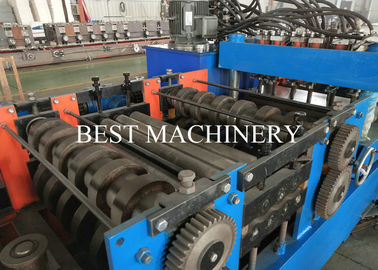

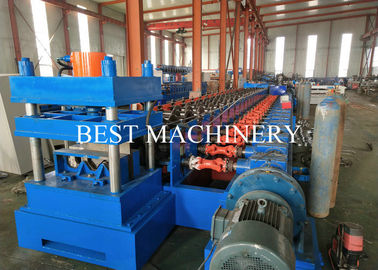

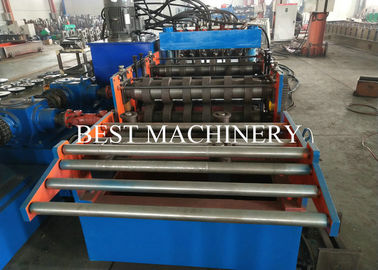

Machine Photos
Installation and Training:
① If buyers visit our factory and check the machine, we will teach you how to install and use the machine, and also train your workers/technician face to face.
② Without visiting, we will send you user manual and video to teach you to install and operate.
③If buyer needs our technician to go to your local factory,please arrange round trip tickets, food and hotel and everyday salary USD100, visa cost and necessary things.
