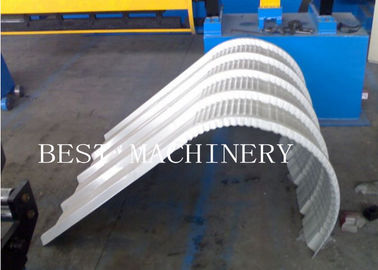

Hydraulic Roofing Sheet Crimping Roll Forming Machine 0.3-0.8mm Thickness

Hydraulic Roofing Sheet Crimping Roll Forming Machine Factory Price

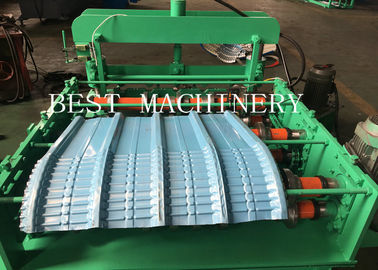

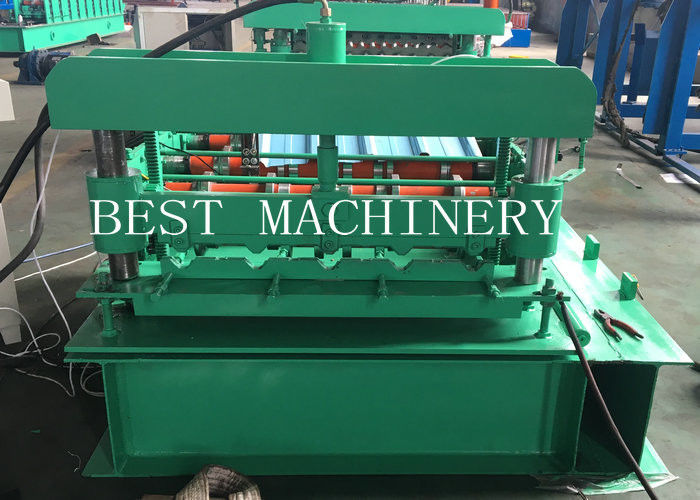

Crimping Machine:

Rollers: design by senior engineers with Auto-cad software, manufactured with 45# high grade steel by CNC machine tools and coated with hard chrome;

Shaft: manufactured with 45# high grade steel by CNC machine tools;

Supporting frame: steel wallboard to guide the forming station bearing basement;

Roller stations:3groups

Shaft diameter:70mm

Bottom frame:20mm

Main power:3kw

Transmission:1''

Cutter Device:

Function: cutting action is controlled by PLC. The main machine automatically stops and the cutting will take place. After the cutting, the main machine will automatically start.

Power supply: hydraulic station;

Frame: welding steel frame;

Stroke switch: non-contact photoelectric switch;

Cutting after forming: cut the sheet after roll forming to required length;

Length measuring: automatic length measuring.

Power:3lw

Hydraulic System:

It is controlled by gear wheel oil pump. After filling the hydraulic oil into the hydraulic oil tank, the pump drive the cutter machine to begin the cutting job.

Match equipment: The system includes a set of hydraulic tank , a set of hydraulic oil pump, two hydraulic pipes.and two sets of electromagnetism valves.

Adopted top brand hydraulic system components to ensure the stability and lifetime, avoid leakage.

Supplies the initial power to the cuter through a closed oil tank. It is off without cutting, which can save the power.

Electric control system:

Automatic length measurement: one unit tooling of length measuring which is lightly pressed on the surface of the steel sheet; the tolling will roll with the moving speed of the steel sheet and then sense to measure its length; length inaccuracy can be amended easily.

Automatic quantity measurement;

PLC is used to control length & quantity. Machine will automatically cut to length and stop when required quantity is achieved;

Control panel: Button-type switch, LED display length and quantity ;

Unit of length: millimeter;

Motor Over-Load, System Over-Current, Short circuit Protection function;

Display total length and total quantity produced.

Payment type:30%as deposit, 70% as balance before loading.

Installation and Training

① If buyers visit our factory and check the machine, we will teach you how to install and use the machine, and also train your workers/technician face to face.
② Without visiting, we will send you user manual and video to teach you to install and operate.
③ If buyer needs our technician to go to your local factory,please arrange board and lodging and other necessary things.

FAQ:
1) Q: Do you have after sales support?
A: Yes, we are happy to give advice and we also have skilled technicians available across the world
We need your machines running in order to keep your business running.
2)Q: How do your machines compare with other big companies in this market?
A: We are up to date with the latest technology and improve our machines accordingly
3) Q: Will you deliver the right goods as ordered? How can I trust you?
A: Yes, we will. The core of our company culture is honesty and credit
BEST MACHINERY is ALIBAB's Gold supplier with BV assessment and CE certificate.
4)Q:What can you do if the machine broken?
A:Our machine's warranty period is 18months,if the broken parts can't repair
we can send the new parts replace the broken parts free,but you need pay the express cost yourself if after warranty period
we can through negotiation for to solve the problems,and we supply the technical support for the whole life of the equipment.
5) Q:Can you be responsible for transport?
A:Yes,please tell me the destination port or address we have rich experience in transport.
6) Q:Can you supply the raw materials?
A:Yes,we can supply the galvanized steel coil,galvalume steel coil,color steel coil,and aluminum coil

Standard Export Packing.
