Product Details:
|
| Raw Material: | 0.8-1.5 Mm | NO. Of Roller Stations: | 14 Groups |
|---|---|---|---|
| Diameter Of Shaft: | 70mm | Frame Panel Thickness: | 20mm |
| Motor Power: | 5.5kw | Driven Type: | 1.0＂Chain |
| PLC Brand: | Delta | ||
| High Light: | concrete door window frame making machine,steel door frame roll forming machine |
||

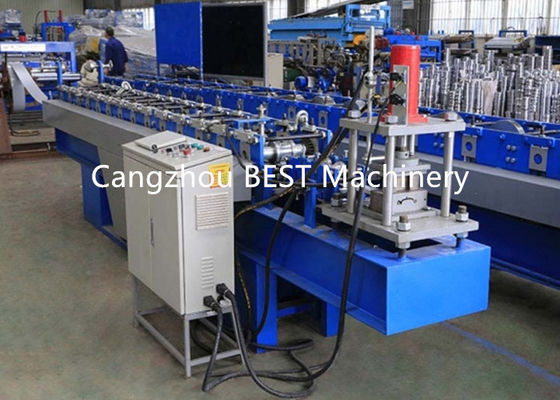

Roller shutter doors auto roll forming machine sheet self lock lath former machinery
What is the application of fenestrated rolling shutter machine?
Our rolling shutter machine can produce many kinds of shutter doors. When maximum security and airflow are a must,fenestrated shutter door is needed.It is ideal for parking structures, container docks or any application where security and airflow needed.
Components of line
1. Decoiler 1 unit
2. Roll Forming System 1 unit
3. Cutting Device 1 unit
4. Hydraulic Station 1 unit
5. PLC control system 1 unit
Roller shutter door profile drawing:
Technique parameters
(1) Processing material: aluzinc/galvanized steel/colored steel coil
(2) Material thickness: 0.3- 1.5mm
(3) Product size:4000*1000*800mm
(4) Main motor power: 5.5kw
(5) Pump power: 4kw
(6) Shaft diameter: 60mm
(7) Forming steps: 10steps
(8) Roller material: high grade 45# steel, hard Chromium plating
(9) Main frame: Steel tube frame
(10) Medium plate thickness: 16mm
(11) Speed:8-12m/min
(12)Material of the cutting blade:Cr12
(13) Control system: PLC computer control
(14) Power supply: 380V, 3 Phase, 50Hz (can change as customers request)
(15) Feeding width:135mm
(16) Machine Weight: about 2 ton
1.Term of payment: TT, 30%TT should be paid as advanced deposit ,70%TT before shipment .
2.Delivery time: Within 35 working days after received of the deposit
3.After-service:Engineer available to service machinery onerseas
Our product advantage
Products Feature:
1. A stylish and attractive design, giving the apperance of a traditional roof tile.
2. Resistant to frost, heat,hail and gales; 100% waterproof, due to the lateral run-off channel on each sheet for several models.
3.The raw material can be in different color, with elegant and noble looking. It is widely used
as the garden like factory, hotel, exhibition, villa,civil construction etc.
Machine Feature:
1.Precise forming
2. High-solid forming stand guarantees the goods and uniform high quality of final productd
3. The operation automatically minimizes the tolerance of cutting length
