Kenya Most Popular Corugated Roman Tile Roll Forming Making Machine Sales
1. Working Flow:
Decoiler--feeding materil--roll formng--pressing and cutting--output table
2. Component:
COMPONENT FOR Roof Sheet Glazed Tiles Roll Forming Machine
|
|
|
|
|
|
|
|
|
|
|
Feeding device
|
|
|
|
Roll forming system
|
|
|
|
Cut Equipment
|
|
|
|
Hydraulic system
|
|
|
|
|
|
|
Supporter/Automatic Stacker
|
|
|
3. Technique parameters
(1) Processing material: aluzinc/galvanized steel/colored steel coil
(2) Material thickness: 0.3-0.8mm
(3) Effective width: 935mm
(4) Feeding width: 1000mm
(5) Main motor power: 4 kw
(6) Pump power: 4kw
(7) Shaft diameter: 75mm
(8) Forming steps: 13steps
(9) Roller material: 45# forged steel, with hard chrome plating
(10) Main frame: 350H steel
(11) Medium plate thickness: 16mm
(12) Control systerm:Delta PLC computer control with inverter
(13) Cutting blade material:Cr12
(14) Speed:about 10-12 meter/min
(15) Drived by Chain:1inch
4. Our service:
| 1. Installation and training: |
|
A.If buyers visit our factory and check the machine, we will teach you how to install and use the machine,
and also trainyour workers/technician face to face.
|
| B.Without visiting, we will send you user manual and video to teach you to install and operate. |
|
C.If buyer needs our technician to go to your local factory, please arrange board and lodging and
other necessary things.
|
| 2. after Service |
| A.One year guarantee for whole machine. |
| B.24 hours technical support by email or phone call. |
| C.If there is any problem found of the machine, we will repair it for free in one year. |
FAQ:
1. Can you make the machine according to my design or photo type?
A: Yes. We have an experienced engineers to work out the most suitable design and production plan for the machine.
2: How can we be assured that you will deliver us quality machine with spare parts?
A: 1. Customers to send the technical people to our factory for checking the quality.
2. We can send the technicians to the buyer`s factory for the installation and trainning .
3. What about your warrenty?
A: Within the 18 month period, we could supply you the replacement parts for free .
If any damaged parts caused by quality problems after two years,we will also help but customer pay the cost .
If you are interested in our machine, please contact me to get more details...

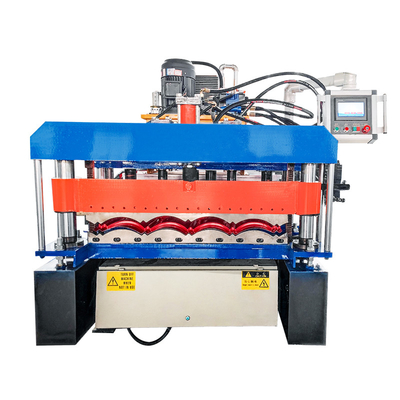

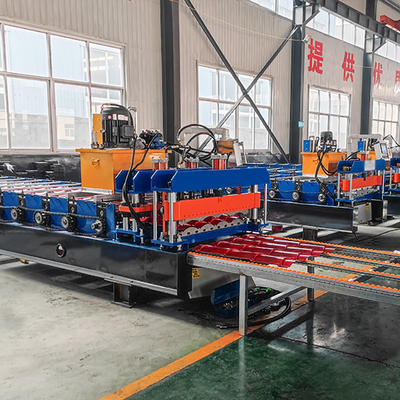

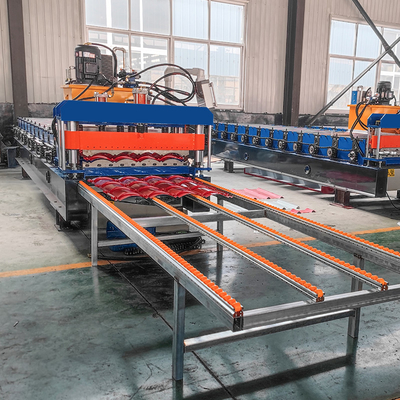

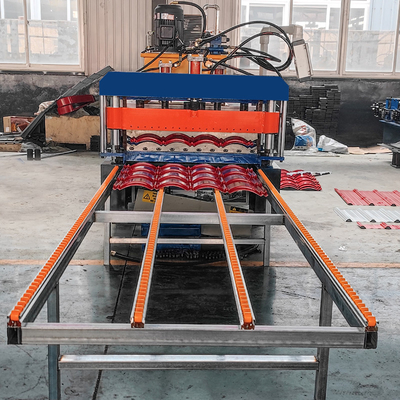

5. Machine photos:
