Product Details:
|
| Name: | 255mm Ridge Cap Roll Forming Machine With Pressing Used For Tile | Production Capacity: | 10-15m/min |
|---|---|---|---|
| Use: | Roof | Power(W): | 3+3kw |
| Warranty: | 2 Years | Color: | As Your Request |
| Customized: | Yes | Voltage: | As Your Request |
| Thickness: | 0.3-0.8mm | Place Of Origin: | Hebei,China |
| High Light: | ridge cap forming machine,steel roof tile forming machine |
||
255mm Ridge Cap Roll Forming Machine With Pressing Used For Tile
Our Ridge Cap Forming Machine Advantage
1. Good quality: We have a professional designer and experienced engineer team.And
the raw material and accessories we use are good.
2. Good service: we provide the technical support for whole life of our machines.
3. Guarantee period: within one year since the date of finishing commissioning. The guarantee covers all the electric, mechanic and hydraulic parts in the line except for the easy-worn parts.
4. Easy operation:All machine cotrolling by PLC computer controlling systerm.
5. Elegant apperance:Protect the machine from rust and the painted colour can be customized
6. Reasonable price:We offer the best price in our industry.
Machine Parameters:
| NO | Name | Specification | |
| 1. | Decoiler | Weight capacity | PPGI steel |
| Coil Width | 305mm | ||
| Inner Diameter | 470-530mm | ||
| 2. | Film covering | Width | 305mm |
| 3. | Forming Machine | Roller station | 14Rows |
| Diameter of shaft | 70mm | ||
| Material of rollers | 45#Steel | ||
| Technology of rollers | Quench to increase the hardness | ||
| Surface of rollers | Plate hard Chrome 0.05mm | ||
| Main bearing | 6210 /bearing steel | ||
| Frame | 300MmC-Beam | ||
| Middle plate thickness | 16mm | ||
| Chain | 1inch | ||
|
4. |
Cut Off |
Operation | Automatic hydraulic type |
| Material of blade | CR12 steel | ||
| Oil pressure station | Motor,oil pump,electromagnetic valve etc. | ||
| Motor of oil pressure station | 3KW | ||
| Working pressure | 0-14MPA | ||
|
5 |
Automatic stacker
|
Size | 6Meters |
| Type | Automatic Side Roll-out | ||
| Main motor | 5.5KW | ||
| voltage | 480V 60HZ | ||
|
6. |
Electric Box With touch screen |
Data input | imperial system (inches and decimals) |
| PLC control system | Delta Brand | ||
| Frequency converter | Delta Brand | ||
| Counter | Omron | ||
| On-Off | Delixi | ||
| 7. | Language | English | |
| 8. | Length of line | 10Meters | |
| 9. | Speed | 4M/Minut | |
Our service:
1). Payment Term: 30% of the total contract value paid by T/T as down payment, the rest 70% of the total contract value to be paid by T/T after inspection by buyer in seller’s factory while before delivery.
2). Delivery Time: The seller guarantees the equipment will be ready for shipment within 30working days after receipt of deposit from the buyer. This machine is in stock now
3). Service: We could send the technician to your country to fix the machine if you need.
4). Warranty: 12 months During the warranty, the replaceable parts are free, but the buyers need to pay for the shipping fee.

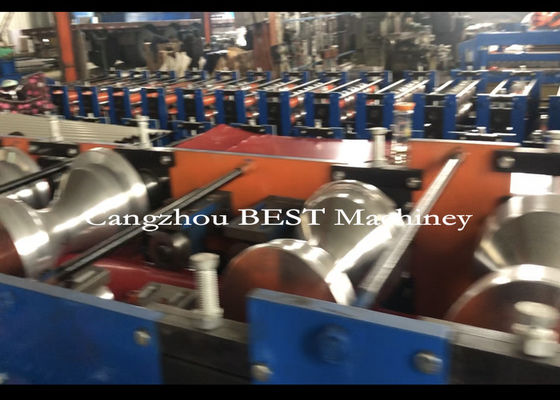

Machine photos:
