Product Details:
Place of Origin: China,Hebei
Brand Name: CHBEST
Certification: CE/ISO
Model Number: CHBEST-400
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Packaging Details: Standard
Delivery Time: 35days

Custom Cold Making Ridge Cap Roll Forming Machine With Two Year Warranty

Description
Name: Ridge Cap Cold Making Roll Forming Machine With PLC Control 380V50HZ Thickness: 0.4-0.5mm
Color: As Your Require Warranty: 2 Year
Voltage: 380V/50HZ/3PHASE Shaft Material: 45# Steel
High Light:

ridge cap forming machine

,

ridge cap machine

Ridge Cap Cold Making Roll Forming Machine With PLC Control 380V50HZ



Roll Forming Machine

Rolled Material: PPGI and GI
Rollers: 12steps

Material for Rollers: 45# steel polished and coated with chrome HRC55-60℃
Material for shaft: High grade No.45 steel after treatment

Hardness for Heat Treatment: HRC55 – 60℃

Diameter of shaft: 70mm

Frame panel thickness: 14mm

Bottom frame: 35# H-section steel
Motor Power: 3 kw
Rolling Speed: 8-10 m / min

Driven type: 1.0"Chain

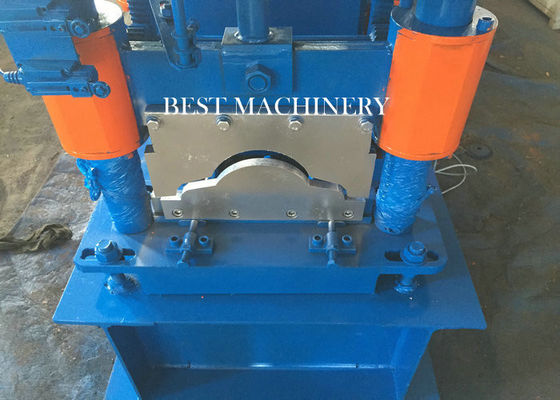

Cutting Device

Material for Cut-Off Modular:Cr12 steel
Hardness for Heat Treatment:HRC55 – 60℃
Motor for Hydraulic Stand:3 kw



Control System

Type

PLC Frequency Control System with touch screen

PLC Brand Delta

Encoder Brand

Omron
Length Error

±2mm

Language

English and Chinese

Voltage

380V/50HZ/3PHASE





Hydraulic Pump

Motor power

3kw

Oil type

46# hydraulic oil
Pump Brand

China brand





Output Table

No power type
Length: 2m







Packing Detall

1.

1*20 GP container ; main machine naked and fastened with iron wire in the container.

2

rollers were painted with oil and packed with plastic film.

3 electrics devices be packed with wooden box.for Standard export packing.
4

All Components Fixed by steel wire with Container.



Company Profile

Cangzhou Best Machinery Manufacturing co., LTD is specialized in the manufacture of high-end equipment cold bending forming equipment manufacturer,has a professional engineer for technical guidance.Engineers engaged in cold bending mechanical equipment design for more than 20years,has a wealth of design concept.Can provide users with a special type of design and manufacture.At the same time to sell equipment for installation,guidance,production,commissioning one-stop service.





Other Machine

Roof sheet machine, c z purlin machine,roller shutter door machine, double layer machine, roof tile machine, ceiling drywall machine, cable tray machine,ridge cap machine, water tube machine, water gutter machine, decking sheet machine, sandwich panel machine and so on.
