Low Noise Corrugated Roof Tile Roll Forming Machine 350H Steel Hydraulic Cutting

Low Noise Corrugated Roof Tile Roll Forming Machine 350H Steel Hydraulic Cutting
Low Noise Corrugated Roof Tile Roll Forming Machine 350H Steel Hydraulic Cutting Low Noise Corrugated Roof Tile Roll Forming Machine 350H Steel Hydraulic Cutting Low Noise Corrugated Roof Tile Roll Forming Machine 350H Steel Hydraulic Cutting Low Noise Corrugated Roof Tile Roll Forming Machine 350H Steel Hydraulic Cutting

Large Image :  Low Noise Corrugated Roof Tile Roll Forming Machine 350H Steel Hydraulic Cutting

Product Details:
Place of Origin: China, Hebei
Brand Name: CHBEST
Certification: CE/ISO
Model Number: CHBEST-960
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Packaging Details: Standard
Delivery Time: 35days

Low Noise Corrugated Roof Tile Roll Forming Machine 350H Steel Hydraulic Cutting

Description
Name: Corrugated Roof Tile Roll Forming Machine 350H Steel Hydraulic Cutting Color: As Your Require
Bottom Frame: 350H Steel Warranty: 2 Year
Voltage: 380V/50HZ/3PHASE Material: PPGI/GI
High Light:

roof panel roll forming machine

,

steel roof tile forming machine



Corrugated Roof Tile Roll Forming Machine 350H Steel Hydraulic Cutting



Work Flow

Decoiler--------feeding--------roll forming--------pressing and cut to length-----output table



Machine Component

Decoiler-------1set

Roll Forming Machine-------1set

Pressing And Cutting Device-----1set

PLC Control System------1set

Hydraulic Pump------1set

Output Table-------1set



Decoiler

Max. Width

1500mm

Inner Diameter

450-550mm

Out Diameter

1500mm
Capacity 5000kgs
Type Manual Or Hydraulic

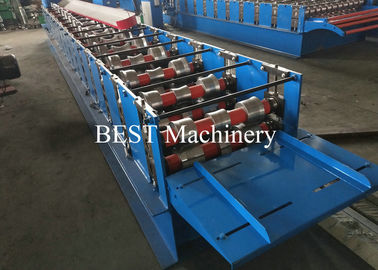

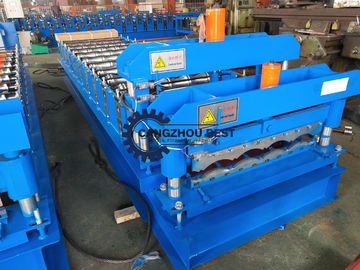

Roll Forming Machine

Material Thickness: 0.3-0.8mm PPGI and GI

NO. of roller Stations: 11roller stations
Material for Rollers: high grade 45# steel polished and coated with chrome HRC55-60°

Material for shaft: high grade 45# steel polished and coated with chrome HRC55-60°

Diameter of shaft: 70mm

Frame panel thickness: 20mm

Motor Power: 3kw
Driven type: 1.0"Chain

Speed:8-10m/min

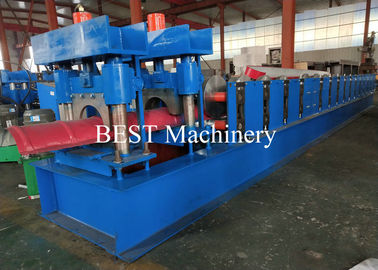

Pressing And Cutting Device

Type

Hydraulic, Automatic Cut-Off

Material for Cut-Off Modular

Cr12 steel after treatment.Hardness for Heat Treatment:HRC55 – 60°

Motor for Hydraulic Stand

3kw

Press tool material

Cr 12 steel after heat-treated



PLC Control System

Type: PLC Frequency Control System with touch screen
PLC Brand: Delta
Encoder Brand: Omron

Length Error: ±2mm

Language: English and Chinese



Hydraulic Pump

Motor power

3kw

Oil type

46# hydraulic oil

Pump brand

China brand



Output Table

No power type
Length: 2m



Packing Detall

1

1*40 GP container ; main machine naked and fastened with iron wire in the container.

2

Rollers were painted with oil and packed with plastic film.

3

Electrics devices be packed with wooden box.for Standard export packing.

4

All Components Fixed by steel wire with Container.





Company Profile

Cangzhou Best Machinery Manufacturing co., LTD is specialized in the manufacture of high-end equipment cold bending forming equipment manufacturer,has a professional engineer for technical guidance.Engineers engaged in cold bending mechanical equipment design for more than 20years,has a wealth of design concept.Can provide users with a special type of design and manufacture.At the same time to sell equipment for installation,guidance,production,commissioning one-stop service.





Our Service

Pre-Sales-Service

If buyers visit our factory and check the machine, we will teach you how to install and use the machine, and also train your workers/technician face to face.

Without visiting, we will send you user manual and video to teach you to install and operate.

After-Sales-Service

Training how to instal the machine, training how to use the machine.

Engineers available to service machinery overseas.

If buyer needs our technician to go to your local factory,please arrange board and lodging and other necessary things.



Low Noise Corrugated Roof Tile Roll Forming Machine 350H Steel Hydraulic Cutting 0



Low Noise Corrugated Roof Tile Roll Forming Machine 350H Steel Hydraulic Cutting 1
