Fully Automatic C Purlin Roll Forming Machine With PLC Control Systems

Certification
China Cangzhou Best Machinery Co., Ltd certification
I'm Online Chat Now

Fully Automatic C Purlin Roll Forming Machine With PLC Control Systems

Fully Automatic C Purlin Roll Forming Machine With PLC Control Systems
Fully Automatic C Purlin Roll Forming Machine With PLC Control Systems Fully Automatic C Purlin Roll Forming Machine With PLC Control Systems Fully Automatic C Purlin Roll Forming Machine With PLC Control Systems Fully Automatic C Purlin Roll Forming Machine With PLC Control Systems

Large Image :  Fully Automatic C Purlin Roll Forming Machine With PLC Control Systems

Product Details:
Place of Origin: China, Hebei
Brand Name: CHBEST
Certification: CE/ISO
Model Number: CHBEST-80-300
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Packaging Details: Standard
Delivery Time: 35days
Supply Ability: 15sets/month

Fully Automatic C Purlin Roll Forming Machine With PLC Control Systems

Description
Name: Automatic C Purlin Steel Profile Channel Roll Forming Machine 15-20m/min Color: As Your Require
Shaft Material: 45# Steel Control System: PLC
Thickness: 1-3mm Warranty: 2 Year
High Light:

c channel roll forming machine

,

steel frame roll forming machine

 Automatic C Purlin Steel Profile Channel Roll Forming Machine



Company Profile

Cangzhou Best Machinery Manufacturing co., LTD is specialized in the manufacture of high-end equipment cold bending forming equipment manufacturer,has a professional engineer for technical guidance.Engineers engaged in cold bending mechanical equipment design for more than 20years,has a wealth of design concept.Can provide users with a special type of design and manufacture.At the same time to sell equipment for installation,guidance,production,commissioning one-stop service.



Work Flow

Decoiler -----guiding -------leveling -------roll forming

(size automatically)-----Punching---------cut to length---------output table



Machine Component

Decoiler 1set
Roll Forming 1set
Punching Device 1set
Cutting Device 1set
PLC Control Box 1set
Hydraulic Pump 1set
Output Table 1set



Decoiler

Width 500mm
Inner Diameter 450-550mm
Outter Diameter 1500mm
Capacity 5000kg
Type Manual Or Hydraulic





Leveling Device

Thickness: 1-3 mm
Rollers for Leveling: 5 rollers
Material for Rollers: GCr15 steel
Hardness for Heat Treatment: HRC55 – 60

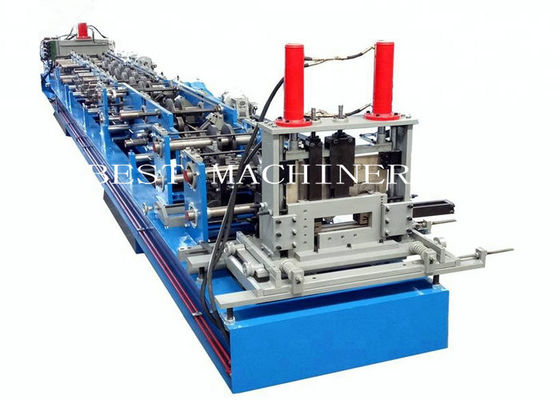

Roll Forming Machine

(1) Rolled Material: Galvanized steel 1.5-3.0mm (2)Material Thickness: 1-3mm
(3) Rollers: 15Groups
(4) Material for Rollers: GCr15 steel after treatment

(5) Hardness for Heat Treatment: HRC55 – 60

(6) Frame panel thickness: 20mm

(7) Bottom frame: 40# H-section steel
(8) Motor Power: 18.5kw
(9) Rolling Speed: 15m / min(don’t include punching)

(10) Driven type: double sides double row 1"Chain

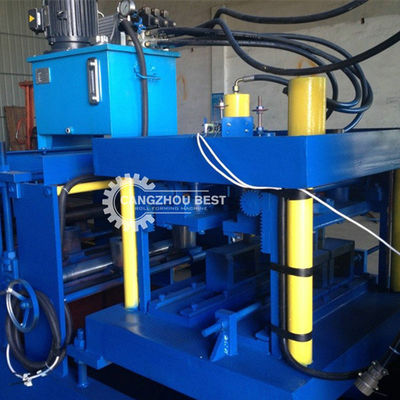

Punching And Cutting Device

Material for Cut-Off Modular

Cr12 steel

Hardness for Heat Treatment

HRC55 – 60

Cut-Off Type

Hydraulic, Automatic Cut-Off

Cut-Off Modular

1 set

Motor for Hydraulic Stand

5.5kw

Material for punching die

Cr12 steel





Electronic Control System

Type: PLC Frequency Control System with double touch screen
PLC Brand: FATEK made in Taiwan
Encoder Brand: Omron

Length Error: ±2mm

Transducer: Changzhou TongLi

Language: English and Chinese

Voltage: 380v/50HZ, 3Phases (it depends on customer requirement)



Hydraulic Pump

Oil type: 46# hydraulic oil
Pump brand: China brand





Fully Automatic C Purlin Roll Forming Machine With PLC Control Systems 0





Fully Automatic C Purlin Roll Forming Machine With PLC Control Systems 1



Fully Automatic C Purlin Roll Forming Machine With PLC Control Systems 2
