W Beam Guard Rail Roll Forming Machine , Cold Forming Machine Fast Speed

Description
Name: W Beam Highway Guardrail Crash Barrier Roll Forming Machinery Manufacturer Production Capacity: 8-12m/min
Place Of Origin: Hebei, China Brand Name: CHBEST
Operate Style:: Automatic Motor Brand: China Facous
Color: As Your Request Thickness: Over 3mm
Customized: Yes Raw Material:: Galvanized
High Light:

guardrail roll forming machine

,

crash barrier roll forming machine

W Beam Highway Guardrail Crash Barrier Roll Forming Machinery Manufacturer





1. What is highway guardrail?

Guardrail barrier is widely used for highway safety and fixed on the side of the roads especially on curves and slopes for preventing vehicles from riding out from roads.

Camgzhou Best is a professional factory specializing in the guardrail barrier. We supply a variety of applications and types of the barrier. We have w-beam highway guardrail and thrie-beam highway guardrail. According to materials and surface treatments, there are hot-dip galvanized guardrails, and plastic coated guardrail.

Guard rail barrier can provide railing protection to motor vehicles at dangerous road areas such as steep slope, high embankments, obscure curves, sharp corners to absorb sudden impact during collision, thus minimizing injury to vehicle and passenger. The barrier also acts as a protector for pedestrians along the highway.

Guardrail barriers are able to prevent the vehicle from skidding back onto the carriageway by controlling exit angles by gradual deceleration and effective redirection of the vehicle back on to the road. Guardrail barrier can be quickly repaired in case of accidents.



2. Technical Parameters:

Item: Specification: Notes:
1. Information of raw material Suitable material: Galvanized coil
Width: 748 mm
Thickness: 2.5-3.5mm
Yield strength: Q235A HR
2. Production specification Detailed as the file
3. Power requirement: Main power: 22kw two sets

With inventor

(normal standard)

Cutter power:

15.5kw(pressure:25mpa)

3 pcs cutter

Speed of machine: 10-15meters/min



4. Hydraulic de-coiler:

Loading: 5tons Main power:3kw
Inner diameter 508mm
Type: Automatic type











5. Machine specification:

Structure: 400I beam



Transform method : Gearbox with shaft

Roll stations:

20 roll stations

(with 6pcs rollers for leveling diameter:80mm)

Splint thickness: 22mm
Diameter of shaft: 110mm,
Material of shaft: Forged 45# steel
Type of cutting: Saw cutting
Material of roller:

CR12 with heat treatment:

HRC58-62

Sizes of machine: 15.5*1.0*1.5meters
Material of punching mold: Cr12,hydraulic pre-punching
Sizes of chain: 2.0inch





3. Main features

The highway guardrail roll forming machine can be designed as two or three wave profiles in one machine, you just need to add some stations at the end of the machine. This guardrail roll forming machine composed with 5 ton manual decoile, feeding guide device, straighten and leveling device, front hydraulic punching device, roll forming machine, hydraulic cutting and auto stacker or manual stacker for finished products.



4. Machine details:

Decoiler

Steel coil width ( Max ): from 1000 mm to 1250 mm;
Internal diameter of coil: variable, from 480 mm to 530 mm
Maximal out diameter:2000mm
Maximum coil weight: 5000 Kgs;

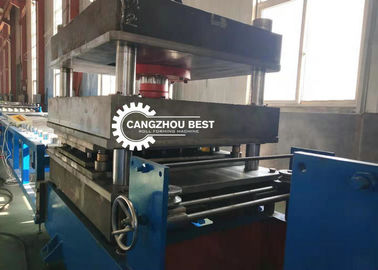

Punching

using hydraulic punching
oil cylinder dia: DIA 140mm
working pressure:20mpa
mould material: Cr12 quenched 58°-62°
hydraulic power:7.5kw
size: 1.5m long*1.1m wide*1.2m high

Forming section



main motor power: 30kw
Decelerating motor: BWD14-43-37kw, made in Shanghai or Changzhou
drive: gearbox driving with shafts
The thickness of the sheet: 2-3 mm
main shaft dia: DIA 100mm material: number 45 forge steel
roller material: GCR15 quenched 58°-62°,chromed
roll station:13 stations, guide pillar type.
Timing by transducer:5m--20m/min(not including punching)
Transducer: Yaskawa made in Japan. 380V 50HZ

Cutting



Cutting: hydraulic cut
knife material: Cr12,quenched 58°-62°
oil cylinder dia: 150mm
working pressure: 30mpa
working journey: 80mm

Hydraulic





1. Hydraulic station power: 11kw
2. Hydraulic pressure: 12-20Mpa

Control carbinet



(1) Voltage, Frequency, Phase: 380V, 50Hz, 3Phase( It depends on the buyer’s requirement.)
(2) Automatic length measurement:
(3) Automatic quantity measurement
(4) Computer used to control length and quantity. Machine will automatically cut to length and stop when required quantity is achieved
(5) Length inaccuracy can be amended easily.
(6) Control panel: Button-type switch and touch screen
(7) Unit of length: millimeter (switched on the control panel)
(8) Language: Chinese and English
Run out table

Jointed by 60mm*40mm tube
size:1.5mlong*0.8mwide*0.6-1mhigh
Quantity: 2 units

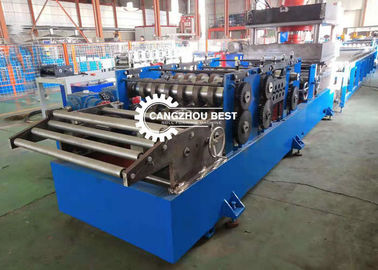

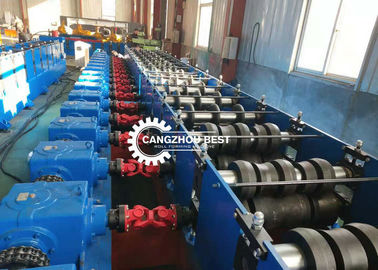

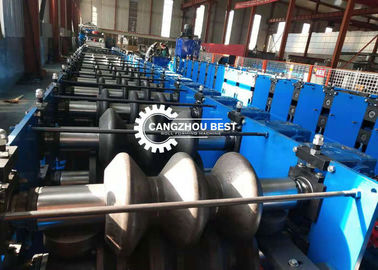

5. Photos:

W Beam Guard Rail Roll Forming Machine , Cold Forming Machine Fast Speed 0

W Beam Guard Rail Roll Forming Machine , Cold Forming Machine Fast Speed 1
