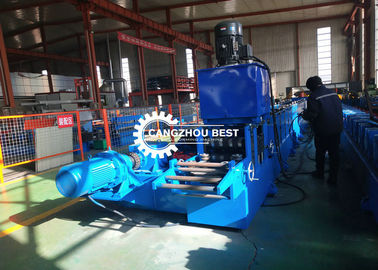

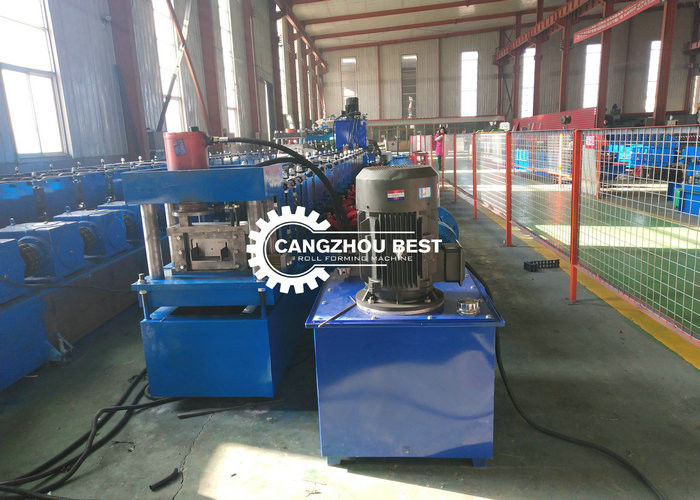

5mm U Post Channel Guardrail Forming Machine Hydraulic Cutting Gear Box Drive

5mm U Post Channel Guardrail Forming Machine Hydraulic Cutting Gear Box Drive
5mm U Post Channel Guardrail Forming Machine Hydraulic Cutting Gear Box Drive 5mm U Post Channel Guardrail Forming Machine Hydraulic Cutting Gear Box Drive 5mm U Post Channel Guardrail Forming Machine Hydraulic Cutting Gear Box Drive 5mm U Post Channel Guardrail Forming Machine Hydraulic Cutting Gear Box Drive

Large Image :  5mm U Post Channel Guardrail Forming Machine Hydraulic Cutting Gear Box Drive

Product Details:
Place of Origin: China Hebei
Brand Name: CHBEST
Certification: CE/BV/SGS
Model Number: XY70
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: plastic film for naked machine
Delivery Time: 50-60 days
Supply Ability: 10sets/month

5mm U Post Channel Guardrail Forming Machine Hydraulic Cutting Gear Box Drive

Description
Product Name: 5mm U Post Channel Hydraulic Cutting Roll Forming Machine Gear Box Drive Cutting Type: Hydraulic
Punching Type: Hydraulic Control System: PLC
Warranty: 2 Years Life Time: More Than 10 Years
High Light:

highway guardrail forming machine

,

crash barrier roll forming machine

5mm U Post Channel Hydraulic Cutting Roll Forming Machine Gear Box Drive



Our factory produce all kinds of roll forming machine, guardrail machine, u post machine, cable tray machine and so on, good price and good quality,good service.Welcome to get inquiry.


Working flow


Decoiler-----feeding----- leveling ------roll forming ------ punching-----cutting----output table

Machine Component



Decoiler ,roll forming machine, hydraulic cutting ,punching, electric system(PLC control system),hydraulic system, stacker.



Name NO. Unit
1. De-coiler 1 set
2. Forming machine 1 set
3. Punching device 1 set
4. Cutting device 1 set
5. PLC control box 1 set
6. Hydraulic pump station 1 set
7. Production support table 1 set



Main technical parameter:

1. DECOILER: 1 SET
(1) Inner Diameter: Φ350 – Φ400 mm
(2) Out Diameter: 1500 mm
(3) Max. Loading Capacity: 5000 kgs

2. LEVELING DEVICE:1 SET
(1) Thickness: 2.0-4.0 mm
(2) Rollers for Leveling: 5 rollers
(3) Material for Rollers: GCr15 steel
(4) Hardness for Heat Treatment: HRC55 – 60


3. HYDRAULIC PUNCH DEVICE: 1 SET

(1) Punching mould material: Cr12 steel
(2) Motor for Hydraulic Punch:15kw

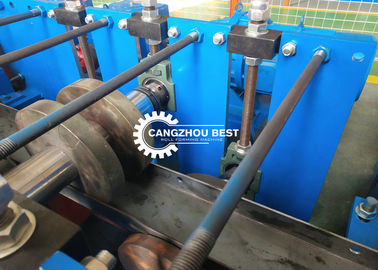

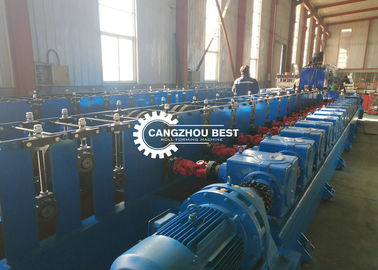

4. ROLL FORMING MACHINE:1 SET
(1) Rolled Material: Cold Rolled Steel Sheet
(2) Material Thickness: 2-4 mm
(3) Rollers: 14 Groups
(4) Material for Rollers: GCr15 steel after treating

(5) Material for shaft: GCr15 steel after treating

(6)   Hardness for Heat Treatment: HRC55 – 60

(7) Diameter of shaft: 80mm

(8 ) Frame panel thickness: 20mm

(9) Bottom frame: 36# H-section steel
(10) Motor Power: 22 kw
(11) Rolling Speed: about 6m/min

(12) Driven type:gear box

5. CUT-OFF DEVICE:1 SET
(1) Material for Cut-Off Modular:Cr12 steel
(2) Hardness for Heat Treatment:HRC55 – 60
(3) Cut-Off Type: Hydraulic, Automatic Cut-Off
(4) Cut-Off Modular:1 set
(5) Motor for Hydraulic Stand: 11 kw

6. ELECTRONIC CONTROL SYSTEM: PLC 1 SET
(1) Type: PLC Frequency Control System with touch screen
(2) PLC Brand: Delta
(3) Encoder Brand: Omron

(4) Length Error: ±1mm

(5) Language: English and Chinese



Working conditions
1. Machine size 11m x 1.8m (L XW)
2. Working size 30m x 3.5m (LXW)
3. Power supply 37kw
4. Frequency 50-60HZ
5.Wires/cables 4-6mm²(length according to workshop)
6. Labor cost 2 workers
7. Tools Spanners and screwdriver
8. Lift device 5t forklift or crane



Installation and Training:

① If buyers visit our factory and check the machine, we will teach you how to install and use the machine, and also train your workers/technician face to face.
② Without visiting, we will send you user manual and video to teach you to install and operate.
③ If buyer needs our technician to go to your local factory,please arrange round trip tickets, food and hotel and everyday salary USD100, visa cost and necessary things.
