Product Details:
Place of Origin: China Hebei
Brand Name: CHBEST
Certification: CE/BV/SGS
Model Number: XY868
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: plastic film for naked machine
Delivery Time: 20-30 days
Supply Ability: 20 sets/month

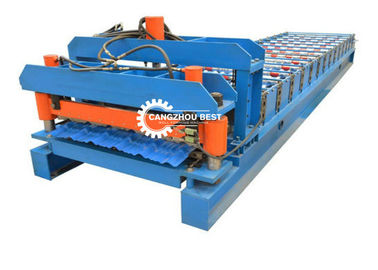

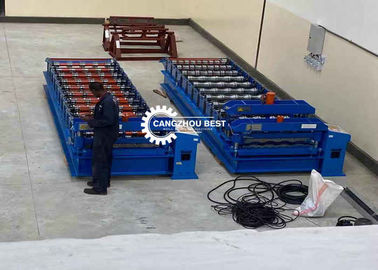

Q Type Roof Tile Roll Forming Machine Galvanized Steel PPGI Coil Oriental Afica Design

Description
Product Name: Q Type Roof Tile Roll Forming Machine Warranty: 2 Years
Machine Speed: 4-6m/min Material Thickness: 0.3-0.8mm
Driven System: Chain Or Gear Box Control System: PLC
Cutting Type: Hydraulic
High Light:

roof panel roll forming machine

,

steel roof tile forming machine



Galvanized Steel PPGI Coil Oriental Afica Design Q Type Roof Tile Roll Forming Machine



A. General details

Suitable Material PPGI/PPGL/GI/GL
Materials thickness 0.3mm-0.8mm
Dimension About 7.2*1.3*1.1m(L*W*H) , as per the drawing

Length of

the Sheet

can set the length according to your infact need.

It is controlled by PLC

which can ensure the accuracy of ±1mm.

Cutting

Automatically stop and cutting when it comes to the set

length.

B. Components Details

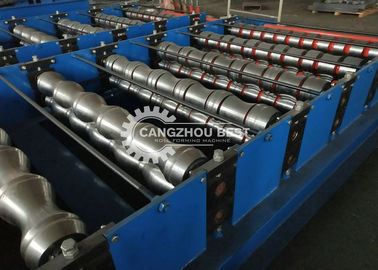

Roller Material High grade 45# steel. Hard chrome plating, 0.05mm.
Main Frame 350# steel. More stable and no shaking.
Middle Plate

20mm. We use thicker plates to ensure stability

of our products.

Forming Steps 11-20 steps, according to the drawing.
Shaft Material

Φ70 mm, high grade 45# steel.

Treating process: tempering- finish turning,

high rigidity, hard to deform.

Cutting

Blade Material

Cr12, hardness HRC60-62.

Treating process: heat treatment- plane abrasion- wire electrode cutting.

C. Electric Components

Suitable Power 380V, 50 Hz, 3 phase or according to your need.
Screen 7 inch touch screen, easy to operate.Brand Delta or based on your need
PLC

Delta Brand (Or Panasonic /Siemens )

Well-adapted to various conditions, such as moisture,

electromagnetic disturbance.

Frequency Converter

Sanjing ;

It has the advantage of slowing down before cutting,

to ensure the length accuracy (±1mm,

far better than industrial standard ±3mm).

Length

Measurement Device

Omron, made in Japan.

It features with high accuracy and stability.



Manual decoiler:

Dimensions: 1700mm*1000mm*800mm

Width of feeding: 1250mm
Capability: 5 Ton
Inter diameter: 450-550mm
Maximal out diameter: 1300mm
Mode of expand &fight: inner expand &fight by manual
Way of feeding: manual

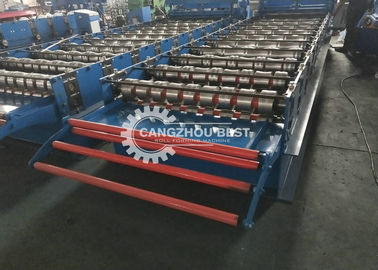

Forming section

Adjustable center of the forming rollers and of sufficient length to prevent lateral movement of the strip on its entry to flattener.
Feeding type: adjustable
Feeding width:900-1300mmmm
Entrance and guide roller: diameter is ¢76mm, material is SAE1045,surface with chrome



Cutting :

Cutting after forming: Cut the sheet after roll forming to required length.
Material of blade:Cr12, 58-62 HRC hardness
Cutting power by hydraulic,4KW
Working pressure: 12Mpa adjustable

Length measuring: Automatic encoder length measuring, Brand: Omron
The cutting sequence is also contained and controlled by the same PLC program



Pre-sale Service

1. Send you invitation letter, If you wanna visit our factory and check the machines.

2. Good Quality Manufacturer competitive price Quick Response Reliable Service for you.



Selling Service

1. Short delivery time after deposit 30-40 days.

2. Email you the production schedule and make prompt delivery for you.

3. We will count the cheapest shipping cost and fastest forwarder for you and send documents promptly.

4. Always be here for your service 12 hours per day.



After-sale Service

1. We welcome all feedback about our products and prices and services from our customers.

2. Any questions, please contact with us freely by E-mail or Telephone.



Q Type Roof Tile Roll Forming Machine Galvanized Steel PPGI Coil Oriental Afica Design 0Q Type Roof Tile Roll Forming Machine Galvanized Steel PPGI Coil Oriental Afica Design 1Q Type Roof Tile Roll Forming Machine Galvanized Steel PPGI Coil Oriental Afica Design 2
