Color Steel Profile Glazed Roof Tile Roll Forming Machine For Zinc Sheet

Color Steel Profile Glazed Roof Tile Roll Forming Machine For Zinc Sheet
Color Steel Profile Glazed Roof Tile Roll Forming Machine For Zinc Sheet Color Steel Profile Glazed Roof Tile Roll Forming Machine For Zinc Sheet Color Steel Profile Glazed Roof Tile Roll Forming Machine For Zinc Sheet Color Steel Profile Glazed Roof Tile Roll Forming Machine For Zinc Sheet

Large Image :  Color Steel Profile Glazed Roof Tile Roll Forming Machine For Zinc Sheet

Product Details:
Place of Origin: HEBEI CHINA
Brand Name: CHBEST
Certification: CE/BV/SGS
Model Number: YX825
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: standard
Delivery Time: 35days
Supply Ability: 14sets/month

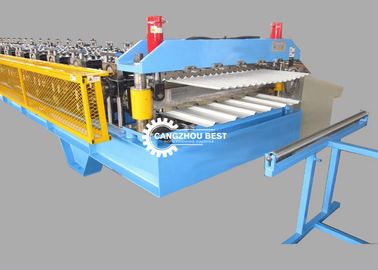

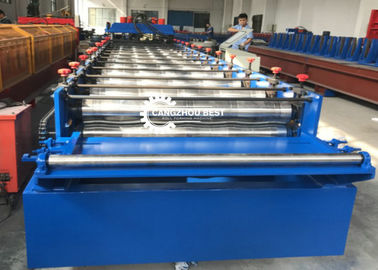

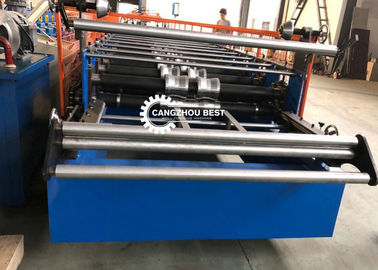

Color Steel Profile Glazed Roof Tile Roll Forming Machine For Zinc Sheet

Description
Name: Double Layer Color Steel Profile Roofing Glazed Tile Roll Forming Machine Zinc Sheet Machine Color: As Request
Machine Weight: 5tons Machine Length: 8.5m
Machine Width: 1.5m Machine Height: 1.5m
High Light:

roof panel roll forming machine

,

steel roof tile forming machine

Double Layer Color Steel Profile Roofing Glazed Tile Roll Forming Machine Zinc Sheet

Main parameters:

No. main parameter of CORRUGATED roll forming machine
1 Suitable to process Color steel plate, galvanized sheet, aluminum coils and etc.
2 Width of the feeding material 1000mm/1220mm
3 Roller station 16 rows
4 Thickness of feeding material 0.2-0.8mm
5 Power 4+3kw
7 Productivity 8-12m/min
8 Diameter of the roller Φ70mm
9 Weight About 4.5 T
10 Size 8500*1300*1400mm
11 Voltage 380V 50Hz 3phases
12 Rolling material Carbon Steel 45#
13 Material of the cutting plate 45#steel
14 Wall thickness of main forming machine 20mm steel plate
15 Main forming machine body 350 mm H steel
16 Control system PLC control

Can be customized according to customer requirements or drawings





Specifications



Roller



Rollers are custom designed and machined precisely by advanced technology, modern machines (lathes, CNC precision machining, plasma cutting machines) placed inside the factory.

Rollers are hardened through vacuum heat treatment (Taiwan technology) and chrome plating (55-58 HRC).



Frame

Made by hardened steel and connected by bolts which make machinery sturdy, easy to maintain, and avoid deformation while operating.



Cutting and Pressing


We apply the Kaizen and 5S principles to the manufacturing process. This improves the accuracy of machine parts.

Shearing and Punching die sets are separated, made by S50C or SKD, gone through vacuum heat treatment to have a longer lifespan (60-64 HRC).



Control System


Machine operate smoothly thanks to advanced automatic and easy-to-use PLC & Touchscreen controls. Modern controls that set up a clear, detailed, and understandable interface with the operator - increasing the functionality, usability, aesthetics, and precision of the machine.



Payment term
TT, you should pay 30% as the deposit on the order day, then pay 70% before delivery when you inspect goods well in factory or by video.


Warranty
18 months, and lifelong technical support service.


Installation
If you need, we will send one technician to your factory to install & testing the machine. You should assist the technician to get Visa and pay for flight tickets and local accommodation, and pay 100 USD/day for salary.


Package
Standard export package, water-proof package, covered with plastic film



FAQ:

Q: How can I contact you?

A: Please look at my contact card. You can talk to me anytime. Or send me enquiry email, I will reply you in 24 hours and offer the optimum solution to you

Q: What is the status of After-sale Services for customers and machineries?

A: Engineers available to service machinery overseas. But the customers/buyer should pay for installation and commissioning fee 100Three Layer Corrugated Roof Tile Roll Forming Machine/ Aluminum Metal Roofing Sheet Making Machine best price/day to our point account. We will provide the technical support for the whole life of the equipment and free training.



Color Steel Profile Glazed Roof Tile Roll Forming Machine For Zinc Sheet 0Color Steel Profile Glazed Roof Tile Roll Forming Machine For Zinc Sheet 1Color Steel Profile Glazed Roof Tile Roll Forming Machine For Zinc Sheet 2
