Product Details:
|
| Product Name: | Hydraulic U Post Guardrail Crash Barrier Support Cold Iron Sheet Roll Forming Machine | Cutting Type: | Hydraulic |
|---|---|---|---|
| Punching Type: | Hydraulic | Control System: | PLC |
| Warranty: | 2 Years | Life Time: | More Than 10 Years |
| High Light: | guardrail roll forming machine,crash barrier roll forming machine |
||

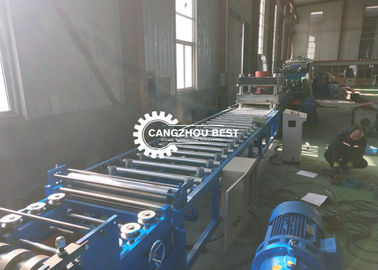

Hydraulic U Post Guardrail Crash Barrier Support cold Iron Sheet Roll Forming Machine
Components of machine:
| Decoiler | 1set (5T capacity) |
| Feeding & guiding device | 1set |

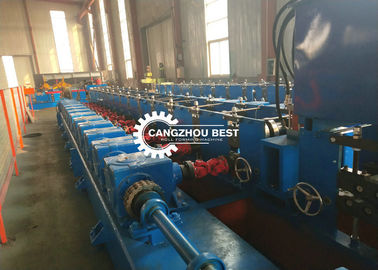

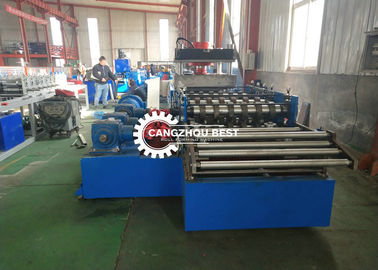

| Main roll forming machine | 1set |

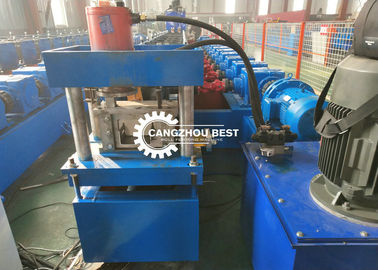

| Hydraulic punching and cutting system | 1set |
| Controlling system | 1set |
| Run out table |
1set |
Inner Diameter:460--510mm
Outer diameter:1200mm
Max.Capacity: 5T;
Manual power expands the coil inner surface;
Material thickness: 2---4 mm,
Color: Blue (or base on customer request)
Dimensions:1700mm*1000mm*800mm
Working rolls: 11 rolls, up 4/down 5,the residual 2 rolls is clamp deliver rolls,
Roller diameter:180mm,
Drive power: 5.5kw frequency conversion electromotor,
Speed reducer model: ZQ250,
Flatting Speed:3-10m/min,
Material : 45# steel, quenching 48--52degree, the surface treatment of black,
Forming stations: 14 Rows,
Roller material: Gcr15 air-hardening hardness of HCR58-62 ,
Shaft material: 45# steel precision machined conditioning treatmennt,
Shaft diameter: ¢75,
Main Engine power: 22 KW with cycloidal reducer
Voltage :380 v 3 phase,
Capacity: 8-12m/min,
Transmission type: Gear-box driving,
Dimension: *1500*1400mm,
PLC Brand : EURA or Customized
Language: English and Chinese
Control panel: Button or Touch Sreen
Frequency converter : EURA or customized
HMI : Easy to operate
Size: 1500*1300*700mm
Quantity: 2 sets
We also have Auto stacker for automatic production line
Packaging & Shipping
1.Nude,with waterproof cloth and stow-wood.Imported computer control system packedwith waterproof cloth and card board.
2.This producing line is maintained free of charge for 18 months.When the machine isused in China,we will install and debug the machine for free;if it is used at abroad,we willsend the professional technician to debug. Buyers should take all the fees for technicianstravelling abroad.
3. AlI the parts in the roll forming machine is free to maintain all the life,if in 18 months ourcompany bear the cost for exchanged the broken part like the new parts cost and expresscost,if more than 18 month,we also free to maintain the broken parts but for send the newparts,the buyer need bear the express cost.
4.When ship the roll forming machine,We will also send one set CD and specification(Chi-nese and English) to you with the machine,they can teach you how to operater themachines.
