Product Details:
|
| Product Name: | Roofing House Section Full Automatic Galvanized Steel H Purlin Roll Forming Machine | Color: | Blue Or As Your Request |
|---|---|---|---|
| Machine Speed: | 10m/min | Machine Dimention: | 7.5mx1.8mx1.4m |
| Machine Power: | 11kw+5.5kw | Driven System: | Chain Or Gear Box |
| High Light: | c channel roll forming machine,steel frame roll forming machine |
||

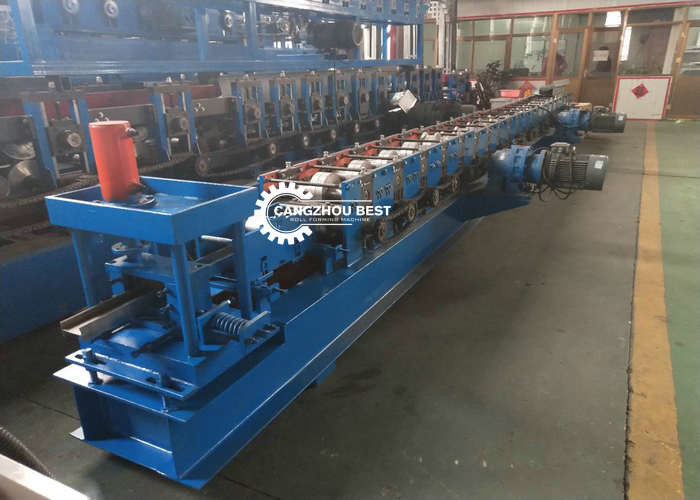

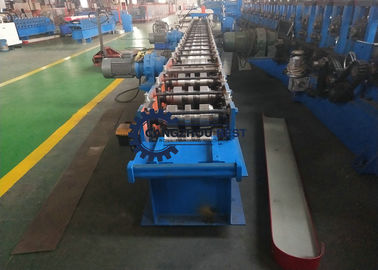

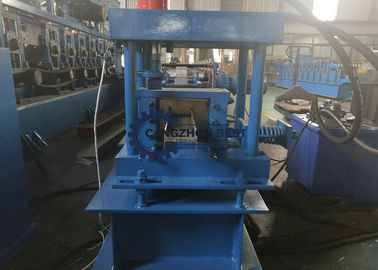

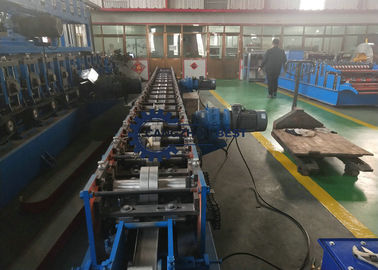

Roofing House Section Full Automatic Galvanized Steel H Purlin Roll Forming Machine
Parameter
| o. | Item | parameter |
| 1 | Machine size | 10000mm*1200mm*1500mm |
| 2 | Machine weight | 7000kg |
| 3 | Machine power | 7.5kw |
| 4 | Hydraulic engine | 3kw |
| 5 | Roll speed | 10000-18000mm/Min Max |
| 6 | Roll stations | 15 |
| 7 | Roller material | GCr15 |
| 8 | Effective width | 60 mm |
| 9 | Feeding width | 110mm |
| 10 | Voltage | 380V 50Hz 3PH/Customized |
| 11 | Material thickness | 1.0-3.0mm/Customized |
| 12 | Control System | Schneider/Delta/Customized |
Specifications
Decoiler
Usage:It is used to support the steel coil and Material of rollers:45# steel,roller surfaces
uncoil it in a turnable way. The steel coil is polishing, hard plating .The polished surface and the
uncoiled by hand. heat treatment towards the molds also can keep the
Loading capacity:5T molding plate surface smooth and not easy to be
Inner diameter: 500-508mm
Roller Material
Material of rollers:45# steel,roller surfaces
uncoil it in a turnable way. The steel coil is polishing, hard plating .The polished surface and the
uncoiled by hand. heat treatment towards the molds also can keep the
Hydraulic System
Power:4kw, The target piece's length is adjustable and digit of
Hydraulic oil: 40# it can be adjusted.Computed mode has
hydraulic oil into the hydraulic oil tank , the pump two modes: automatic and manual one.
drive the cutter machine to begin the cutting job.
Cutting System
Material of the cutting:Cr12Mov with quenched It adopts welded steel and supported roller to
treatment.It can decide cut panel dimension transmit the products,which is used to collect
according to the hydraulic drive and PLC computer the finished products.
Our service:
1). Our machine warranty is 3 years (non-man-made damage, accessories, technical support)
2). Technical guide is provided during whole life of the machine.
3). Oversea services will be provided but any cost thus incurred will be paid by the buyers.
4). We support customes inspect our factory or machines by video call.
5).After customer inspect the factory,if need translator service,we also can supply this service.10USD/H for salary.
6).Customer LOGO,Tel, can customize on our machines.
7).Voltage can customize according to customers’requirement.
8).If need raw material,we can supply the good suppliers for steel coil,alumium coil,steel strip and so on.
9).If need more machine pictures or videos,please contact me soon.
WHY CHOOOSE US
1. Resistant to frost, heat,hail and gales; 100% waterproof, due to the lateral run-off channel on each
sheet for several models.
2. High-solid forming stand guarantees the goods and uniform high quality of final productd
3. Precise forming, The operation automatically minimizes the tolerance of cutting length
4. A stylish and attractive design, giving the apperance of a traditional roof tile.
5.The raw material can be in different color, with elegant and noble looking.
