Product Details:
|
| Product Name: | High Speed 25m/min Roofing Frame Section C Channel Purlin Roll Forming Machine | Machine Speed: | 4-6m/min |
|---|---|---|---|
| Machine Power: | 11kw+5.5kw | Driven System: | Chain Or Gear Box |
| Control System: | PLC | Cutting Type: | Hydraulic |
| Warranty: | 2 Years | Life Time: | More Than 10 Years |
| High Light: | c channel roll forming machine,steel frame roll forming machine |
||

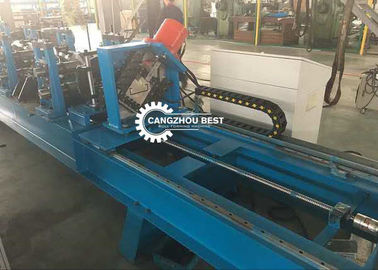

High Speed 25m/min Roofing Frame Section C Channel Purlin Roll Forming Machine
Specifications
| Decoiler (manual/automatic) | Weight Capacity | 3T |
| Inner Diameter | 460-520mm | |
| Outside Diameter | 1400mm | |
| Coil width | Max 600mm | |
|

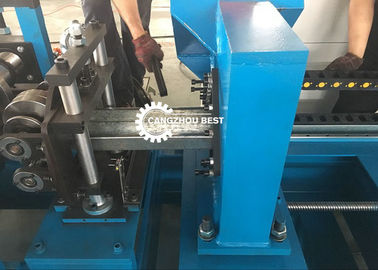

Feeding and straightening device |
Pinch rollers | one pair, up and down |
| Straightening rollers | up three, down four | |
| Diameter of rollers | 75mm | |

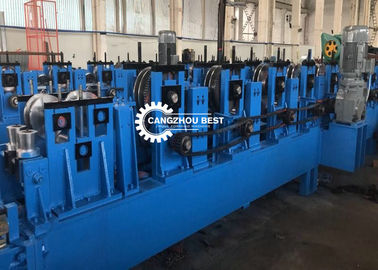

| Roll Former | Frame type | single station |
| Forming Roller stand | about 14 Groups | |
| Shaft material | First grade 45# steel, | |
| Shaft diameter | 75mm | |
| Roller material | GCr15 | |
| Drive Type | Chain of transmission | |
| Motor |
15KW reducer with frequency control |
|
| Roll stand type |
split type, two sides forming separately |
|
| Size changing time | 15 min | |
| Automatic size changed by slide screw and angle gear which guarantee the complete synchronization and the material thickness is adjusted by eccentric distance of passive rollers. | ||
| Punching | Type | Hydraulic |
| Mould material | Cr12 | |
| Holes distance | Can be adjusted | |
|
Cutting A: Hydraulic cutter |
Type | After-cutting, hydraulic |
| Material of mould | Cr12 | |
| Cutting tolerance | 10M+/- 2.0 mm | |
|
Cutting B: Fly saw |
option | |
| PLC system | PLC | PANASONIC/Taida/Sanjing |
| Length Controller | Encoder | |
| Operation | Touch Screen/Button | |
| Transducer | Mitsubishi | |
| Hydraulic station | Power | 7.5 KW |
| Hydraulic pressure | 11 Mpa | |
| Runout Table | Non-power type | |

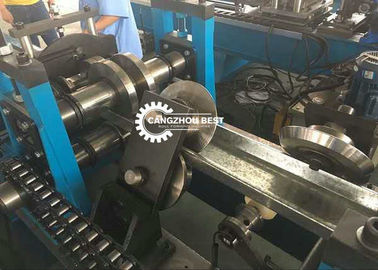

Rollers
Rollers manufactured from high quality bearing steel GCr15, CNC lathes, Heat Treatment.
with black treatment or Hard-Chrome Coating for options.
With feeding material guide, body framemade from 400# H type steel by welding
Cutter
No need to change cutter for different size,
made by high quality mold steel Cr12 with heat treatment
Cutter frame made from high quality 30mm steel plate by welding
Pre-punching & Pre-cutting, stop to punch, stop to cut
hydraulic motor:7.5KW, Hydraulic pressure range: 0-16Mpa
Control system
PLC Control System Omron (Touch screen: WUXI xinjie)
Inverter brand:Taiwan DELTA,Encoder brand:Japan OMRON)
Combined with: PLC, Inverter, TouchScreen, Encoder, etc
User's manualin English
Terms of trade
1. Minimum order quantity (MOQ): 1 piece
2. Delivery time: about 45 workdays
3. Port of loading: port of Tianjin
4. Type of payment: by T/T or by L/C
5. Export: Australia, UK, Ireland, Mexico, Brazil ,Israel ,Dubai, Russia ,India, Singapore,
Malaysia ,Thailand, Philippines, Vietnam, South Africa,Egypt,etc.
Training and Installation
1 We offer installation service local in paid, reasonable charge.
2 QT test is welcome and professional.
3. manual and using guide is optional if no visiting and no installation.
Certification and after service
1. Match the technology standard, ISO producing certification
2. CE certification
3. 12 months warranty since the delivery. Board.
Our advantage:
1. Short delivery period.
2. Effective communication
3. Interface customized.
