Product Details:
|
| Name: | IBR Metal Glazed Roof Tile Roll Making Forming Machine With High Quality | Voltage: | 380V, 380V 50Hz 3phases |
|---|---|---|---|
| Control SystemControl System: | PLC | Roller Material: | 45#steel |
| Shaft Diameter: | 70mm | Place Of Origin: | Hebei,China |
| Driven Type: | Chain | Sheet Thickness: | 0.3-0.8mm |
| Power: | 7.5kw | Cutting Blade: | Cr112 |
| High Light: | roof panel roll forming machine,steel roof tile forming machine |
||
IBR Metal Glazed Roof Tile Roll Making Forming Machine With High Quality
1. Working Flow:
Decoiler--feeding materil--roll formng--pressing and cutting--output table
2. Technology Index
Cutting distance≥150mm
Temperature of the working environment of the production line: 0—40 Celsius
Humidity of the working environment of the production line: 5-85 (No dew)
Working Voltage: Three Phase Voltages 380V (AC)
Working Environment: No corrosive gases, less dust.
Error of Cutting Distance of Glazed Tile: ±1-2mm
The main description
Roll Forming Machine: CLASIC
Control System: PLC
Un-coiler:
UnCoiler : 5 ton manual
Decoiling Holder: 2200mm×1620mm×1700mm
inside diameter of the uncoiler: 510-610mm
Roll forming machine:
Color Steel Sheet Thickness: Color Sheet 0.3~0.8mm
Color Steel Sheet width: 1220mm
Roller Stations: about 16 stations
Way Of Drive: 1.2 inch single chain
The speed of the roll forming machine: 5-6m/min
Roller Material: 45# forge steel, coated with chrome
Shaft Material and DIA: 76mm, material is 45# forge steel
Maim Motor Power: 7.5kw
Error of Cutting Distance of Glazed Tile: ±1-2mm
Roll Forming Machine: 8700mm×1622mm×1400mm
Roll Forming Machine: 8000kg
Press parts
Type Hydraulic
Hydraulic Station Power: 5.5kw
Size of the press parts: 2000*1800*1500mm
Cutting parts
Type Hydraulic
Max. cutting thickness: 1mm
Hydraulic Station Power: 5.5kw
Automatic Hydraulic Cutting Machine: 400mm×1500mm×1100mm
Material Of Cutting: Cr12Mov quenching 58-62℃
Automatic Hydraulic Cutting Machine: 400kg
Passive Out table
Size of the out table: 2000*1350*1000mm, two pieces
3. Our service:
| 1. Installation and training: |
|
A. If buyers visit our factory and check the machine, we will teach you how to install and use the machine, and also trainyour workers/technician face to face. |
| B. Without visiting, we will send you user manual and video to teach you to install and operate. |
|
C. If buyer needs our technician to go to your local factory, please arrange board and lodging and other necessary things. |
| 2. after Service |
| A. One year guarantee for whole machine. |
| B. 24 hours technical support by email or phone call. |
| C. If there is any problem found of the machine, we will repair it for free in one year. |
4. Packing:
Before loading to container, we will check the machine first. Second, make some protection on the machine. Such as, we will make the plastic package on the easy damage parts, paint the oil on the roller and shaft, in case the roller and shaft gor corrosion and rusty during long time delivery.
Third, we will fix all the parts into container by the steel wire rope. And ensure the glazed tile roofing sheet roll forming machine will not damage when shaking on sea.
At last, we will take photos and videos for customer when loading to container, so that the customer can take out the machine easily when receive the goods.

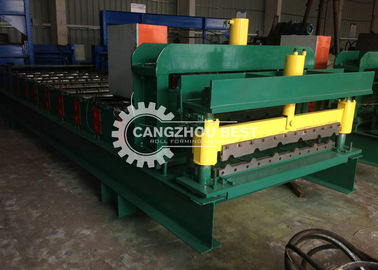

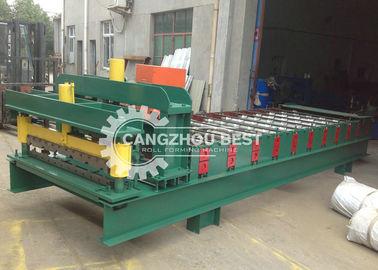

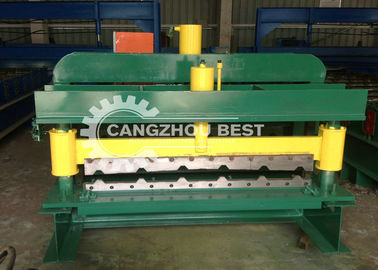

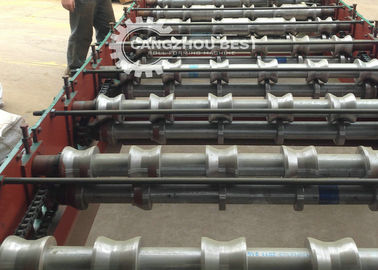

5. Machine photos:
