Product Details:
|
| Place Of Origin: | Hebei,China | Name: | New Type Pressing Glazed Roofing Tile Roll Forming Machine Line |
|---|---|---|---|
| Usage: | Buidling | Roller Material: | 45# Steel |
| Voltage: | 380V 50Hz 3phases(customized) | Speed: | 8-12m/min |
| Roller Driven Type: | Chain Transmission | Way Of Drive: | 1.0 Inch Single Chain |
| Under Frame: | 350H Steel | Control System: | PLC Control |
| High Light: | roof panel roll forming machine,steel roof tile forming machine |
||

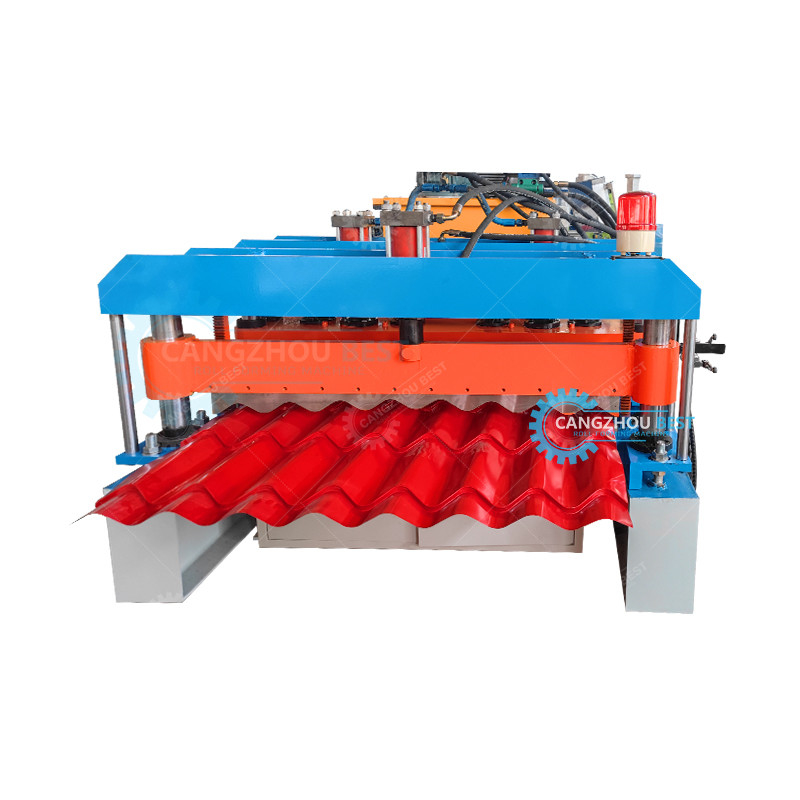

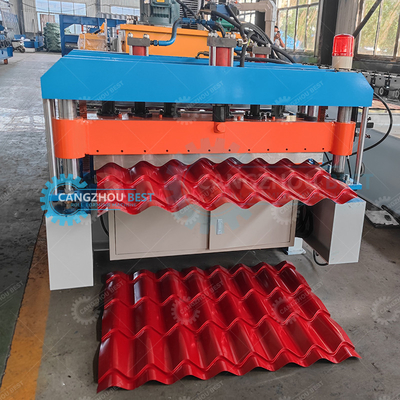

New Type Pressing Glazed Roofing Tile Roll Forming Machine Line
Main features

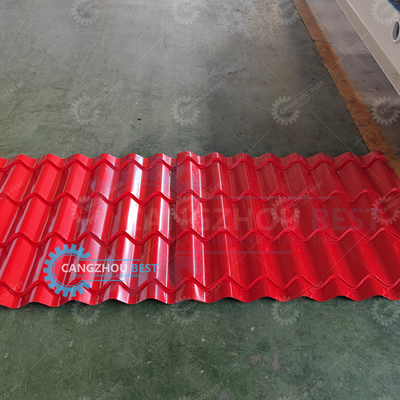

The metal roof glazed tile roofing sheet making machine is used to make the glazed tile roofing sheet for house roofing. Application to shopping malls, trade markets, stadiums, holiday villages, sanatoriums, hotels, villas, residences, and Glazed Tile are widely used in building: the steel-structured large-scale warehouses, plants,supermarkets. Our all machine can be designed and manufactured as customers' requests.
Technical parameters
| Product name | Glazed tile roll forming machine | ||
| NO. | Items | Parameters | |
|
1
|
Suitable Material
|
Type | GI/PPGI/AL |
| Width | 1000/1200/1220/1250mm | ||
| Thickness | 0.30-0.80mm | ||
| 2 | Decoiler | Manual or hydraulic | 5 tons |
| 3 | Working Speed | 5-8 m/min | |
| 4 | Control System | Panasonic/Siemens PLC& transducer | |
| 5 | Main Power | About 5.5KW | |
| 6 | Roller stations | 18 stations | |
| 7 | Roller material | 45# Steel | |
| 8 | Shaft material | 45# Steel | |
Machine Details:
Usage: It is used to support the steel coil and uncoil it The steel coil is expansion by hand.
Loading capacity:5T
Inner diameter: 450-508mm
Wall Tiles Making Machine
Cr12 material with chrome coating, CNC Lathes.
It is designed according to the customers' profile drawing. It adopts motor reducer drive, chain transmission, roller surfaces polishing, hard plating, heat treatment and galvanization treatment. The polished surface and the heat treatment towards the molds also can keep the molding plate surface smooth and not easy to be marked when it is being stamped
It is controlled by gear wheel oil pump. After filling the hydraulic oil into the hydraulic oil tank, the pump drives the cutter machine to begin the cutting job.Power:4kw Hydraulic oil: 40#
Components: The system includes a set of hydraulic tank, a set of hydraulic oil pump, and two hydraulic pipes. And two sets of electromagnetism valves.With reducer combination, long life, high precision
It adopts the hydraulic drive and automatic location to decide the dimension and cut the target products. Material of blades: Cr12
Components: It contains one set of cutting tools, one hydraulic tank and one cutter machine.
Roofing Tile Making Equipments
It adopts Delta/Siemens PLC to control. The target piece's length is adjustable and digit of it can be adjusted. Computed mode has two modes: automatic and manual one. The system is easy to operate and use.Touching screen
Our service:
| 1. Installation and training: |
|
A.If buyers visit our factory and check the machine, we will teach you how to install and use the machine, and also trainyour workers/technician face to face. |
| B.Without visiting, we will send you user manual and video to teach you to install and operate. |
|
C.If buyer needs our technician to go to your local factory, please arrange board and lodging and other necessary things. |
| 2. after Service |
| A.One year guarantee for whole machine. |
| B.24 hours technical support by email or phone call. |
| C.If there is any problem found of the machine, we will repair it for free in one year. |
FAQ:
1. Can you make the machine according to my design or photo type?
A: Yes. We have an experienced engineers to work out the most suitable design and production plan for the machine.
2: How can we be assured that you will deliver us quality machine with spare parts?
A: 1. Customers to send the technical people to our factory for checking the quality.
2. We can send the technicians to the buyer`s factory for the installation and trainning .
3. What about your warrenty?
A: Within the 18 month period, we could supply you the replacement parts for free .
If any damaged parts caused by quality problems after two years,we will also help but customer pay the cost .
If you are interested in our machine, please contact me to get more details...
