Product Details:
|
| Product Name: | Galvanized Roofing Sheet Profile Automatic Building Material Roll Forming Machine | Color: | Blue Or As Your Request |
|---|---|---|---|
| Machine Speed: | 8-12m/min | Driven System: | Chain Or Gear Box |
| Control System: | PLC | Cutting Type: | Hydraulic |
| Warranty: | 2 Years | Life Time: | More Than 10 Years |
| High Light: | roofing sheet making machine,metal sheet roof roll forming machine |
||

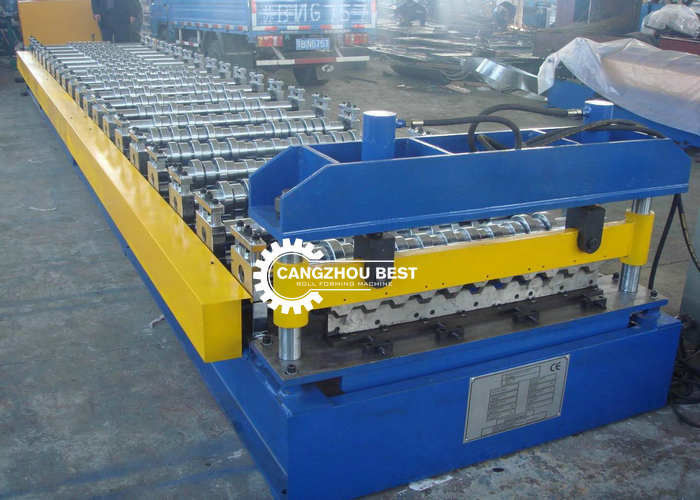

Galvanized Roofing Sheet Profile Automatic Building Material Roll Forming Machine
Specifications
|
Machine specification
|
Electric power
|
kW
|
11 kW-30 kW
|
|
Machine Weight
|
Tons
|
10.0-18.0 tons
|
|
|
Machine Dimensions
|
m
|
(9-16) m x 1.8 m x 1.5 m
|
|
|

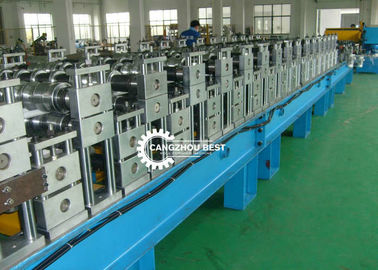

Station quantity
|
stations
|
18-24 stations
|
|
|
Raw material
|
Steel Thickness (BMT)
|
GI, GL, PPGI, PPGL
|
0.2-0.8 mm
|
|
Coil Width
|
mm
|
914-1450 mm
|
|
|
Material Strength
|
|
G300-G550
|
|
|
Production specification
|
Rolling speed
|
m/min
|
8-12m/min
25-35m/min (hi-speed) |
|
Control System
|
|
PLC, Touch Screen HMI
|
|
|
Rolling transmission punching system
|
|
Gear motor, driven by Inverter
|
|
|
Cutting system
|
Automatic
|
Hydraulic
|
|
|
Length Tolerance
|
|
± 2 mm
|
The sturcture we use for this machine has the higher duty mechanical behavior;
Column stand type, Europe strandard;

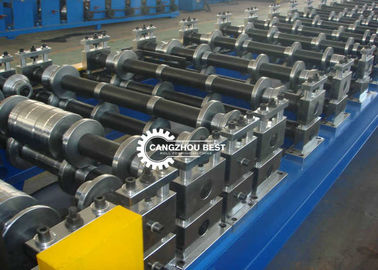

The rollers processing by twice CNC machining and hard chromed, HRC 58-62;
Shaft diameter is 76mm for standard;
Roll forming speed is 15-20m/min;
Cutting blade material CR12 MOV;
1. PLC controller -- Siemens
2. Transducer -- Yaskawa
3. Encoder -- KOYO
4. Other electronic component- Schneider

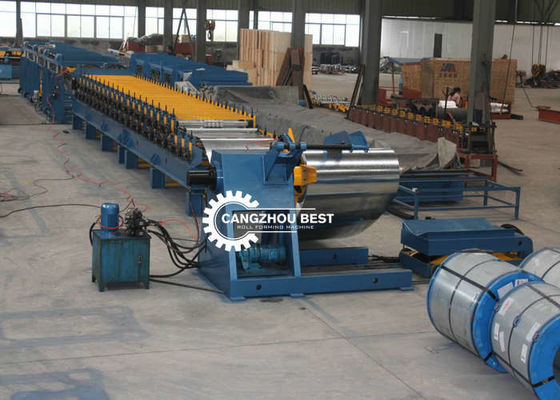

5 tons hydraulic decoiler with coil cart;
Automatic loading & unloading ;
Expanding tight by hydraulic station;
To make the profiled sheet curved, using for ridge cap;
Hydraulic punching or servo punching.
After-sell Service
In correct operation & maintaining, the machine is guaranteed for one year since leaving our factory excludes the electric elements.
Installation
If installation is needed, the seller will dispatch a technician to the buyer’s factory abroad to assist regulating the machine with charge free. The buyer should assist the seller to get the Chinese technician's visa and should pay for the roundtrip air ticket and the local accommodation.If installation is needed, the buyer shall make the following preparation before arrival of technicians.
Position the machine in the buyer’s factory.
Prepare necessary electric wiring.
Prepare material of trial running.
Provide labors for assistance and installation during installation.
