Product Details:
|
| Product Name: | Automatic Cold Steel Strip Profile C Z Purlin Roof Truss Roll Forming Machine | Machine Speed: | 4-6m/min |
|---|---|---|---|
| Machine Dimention: | 7.5mx1.8mx1.4m | Machine Power: | 11kw+5.5kw |
| Driven System: | Chain Or Gear Box | Control System: | PLC |
| High Light: | c channel roll forming machine,steel frame roll forming machine |
||

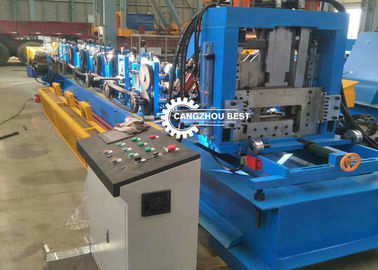

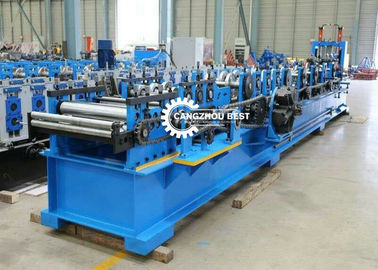

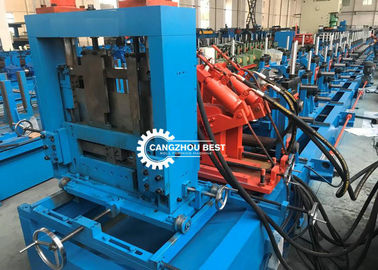

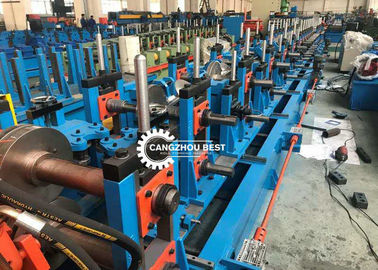

Automatic Cold Steel Strip Profile C Z Purlin Roof Truss Roll Forming Machine
Fully automatic CZ steel machine, can exchange CZ steel, realize 80-300mm any type of quick change in one minute, and achieve the product change specifications you need. The forming cutter can realize 80-300 any type of stepless cutting. No need to change tools. Feeding port automatic centering adjustment, fixed length cutting, precise precision, fast pressing speed, 8-15m/min per minute, saving labor costs and improving production efficiency.
Technical parameters
| Article No. | Item Name | Specification |
| 1 | Width of feeding material | According the profile |
| 2 | Thickness of feeding material | Max 3.0mm |
| 3 | Purlin Width | 100-300mm |
| 4 | Purlin Height | 40-80mm |
| 5 | Roller station | 14 stations |
| 6 | Roller material | Gcr15, quench treatment hardness 55-58 |
| 7 | Forming speed | 10-15 m/min |
| 8 | Main motor | 15 kw |
| 9 | Driving way | Chain transmission |
| 10 | Hydraulic power | 5.5kw |
| 11 | Punching | Hydraulic pre-punching |
| 12 | Punching mould material | Cr12 |
| 13 | Cutting system | Hydraulic pre-cutting |
| 14 | Blade material | Cr12 |
| 15 | Tolerance | +-1.5mm |
| 16 | Voltage | 380V 50Hz 3phases |
| 17 | Machine height | 13 tons |
| 18 | Machine length | 10m |
| 19 | Control | Panasonic PLC |
| 20 | Decoiler | 5 tons |
The sturcture we use for this machine has the higher duty mechanical behavior.
The rollers processing by twice CNC machining and quenched, HRC 58-62;
Design as flexiable width change from 80-300mm as standard;
We can do max size at 120*350mm;
1. PLC controller -- Siemens
2. Transducer -- Yaskawa
3. Encoder -- KOYO
4. Other electronic component- Schneider
Advantages
1.With C-Z interchangeable equipment, our machine is able to change purlin specification within 5-10 minutes.
2.In addition, all of our machines are equipped with Fourth generation C/Z quickly cutting and punching system, purlin in any size can be made without changing cutting mold. It's different from traditional cutting device.
Traditional cutting device need to change cutting mold frenquently, it wastes much time to exchange cutting mold, also occupy lots of spaces.
Packaging: Important Components Wiped Anti Rust Oil, Rollers and Shafters covered by foam film, Hydraulic station, PLC control Box, Spare parts and some small parts
Packed in plywood box. All Components Fixed by steel wire with Container.
Payment Terms: 30%T/T after signed the contract,balanced before delivery
Warranty
1).18months, and we will provide the technical support for the whole life.
2).Training: the buyer should charge of visa, return ticket, food and accommodation overseas and USD100/person/day for salary.
3).Need one technicians
4).Training time: one week (contains the time of installation and adjustment)
