80-300mm C Purlin Section Purlin Making Machine For Steel Cold Strips

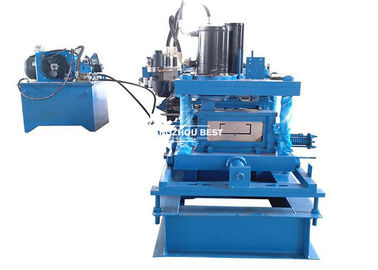

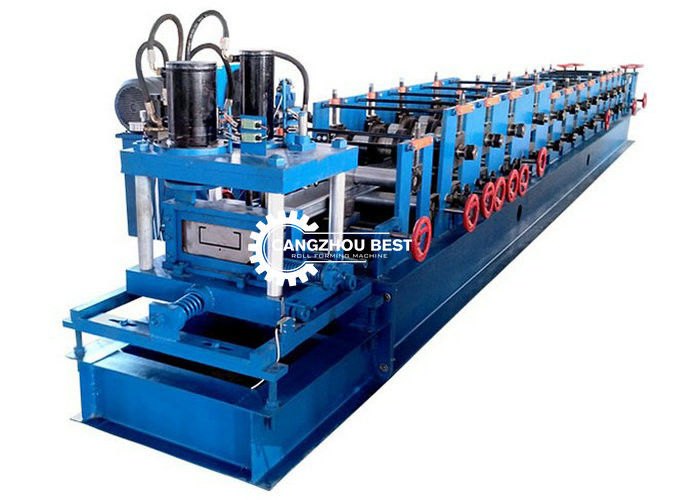

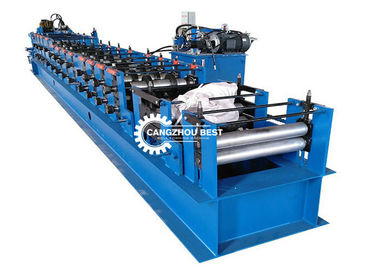

Large Image : 80-300mm C Purlin Section Purlin Making Machine For Steel Cold Strips

Product Details:

Place of Origin:	China Hebei
Brand Name:	CHBEST
Certification:	CE/BV/SGS
Model Number:	XY80-300

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	$13500-$28500/set
Packaging Details:	plastic film for naked machine
Delivery Time:	30-40 days
Supply Ability:	20 sets/month

Contact Now

80-300mm C Purlin Section Purlin Making Machine For Steel Cold Strips

Description

Product Name:	80-300mm C Purlin Section Profile Steel Cold Strips Roll Forming Machine	Color:	Blue Or As Your Request
Driven System:	Chain Or Gear Box	Control System:	PLC
Cutting Type:	Hydraulic	Warranty:	2 Years
Highlight:	c channel roll forming machine , steel frame roll forming machine

80-300mm C Purlin Section Profile Steel Cold Strips Roll Forming Machine

Machine Components

No.	Name	Unit	Qty
1	Decoiler	set	1
2	Entry Beach	set	1
3	Main Machine for roll forming	set	1
4	Cutting System	set	1
5	punching	set	1
6	Output Table	set	1
7	Control System(PLC)	set	1
8	hydraulic station	set	1

Specifications

5T hydraulic decoiler:

Steel coil width: from 200 mm to 600 mm;

Internal diameter of coil: variable, from 470 mm to 510 mm
Maximal out diameter:1600mm
Maximum coil weight: 5000 Kg;
Oil cylinder dia.:100mm
Working speed: 0-15m/min adjustable
Main motor power: 5.5KW AC motor
Hydraulic power: 3kw
Speed controlled by frequency converter brand: Yaskawa
De-coiler should be with Loop control and hold down, and with baffle for forbid coil fall down
The decoiler have 4 segments

Flattener:

The quantity of leveler rolls must be planned according to thickness 2mm to 3.0mm.
Flattener roller: upper is 3 rollers, down is 4 stations(total is 7 rollers)
Flattener roller material: SAE 1045 thermal treatment hardness 48-52 HRC.
Diameter of flattener shaft: ￠76mm, material is SAE 1045, hardening and tempering
Drive by motor: 4kw AC motor (Guomao of China)

Punching:

Base on customer provide punching drawing, this machine need adopt two units hydraulic punching system
The punches and dollies will be CR-12, hardness HRC 58-62 and chrome coating both punches and dolies should be easily replaceable without requiring disassembly of complete units.
The whole punching operation should be automated and controlled by a program installed in the PC which is located in the operator's console.
Hydraulic power: 5.5kw
Working pressure: 12-16Mpa

Forming section

Thickness range: 1.5-3.0mm
Maximum production speed: not less than 10 meters per minute (for non-perforated profiles, excluding cutting)
Main motor power:15kw, AC motor, motor inside of main machine (Brand: Guomao of China)
Adjust flange and width motor: 1.5KW x3 motor inside of main machine (Brand: Guomao of China)
Machine Voltage, Frequency, Phase: 380 V, 50 Hz, 3Phase
Roll station: 20 stations
Roller material:ASTM52100 chrome plated surface with hardness 58-62 degree ,CNC,
Shaft diameter: ￠76mm material: SAE1045 with quenching and tempering
Transmission: by gear box for each station

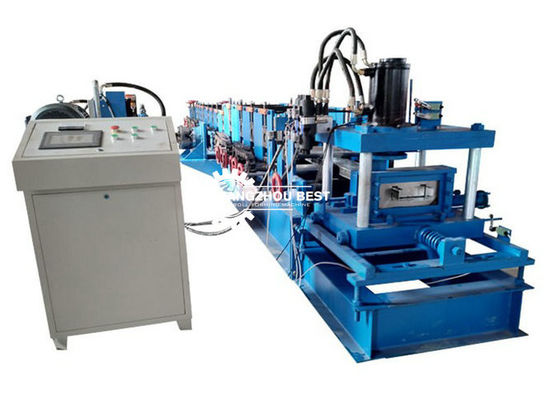

Control box:

1)Programmable setting of profile length and quantity
2)Automatic stopping of the equipment after completion of the cutting programme.

3)Operating system language: English and Chinese

4)Computer used to control length & quantity. Machine will automatically cut tolength and stop when required quantity is achieved
5)PLC brand: Panasonic
6)Frequency converter brand: Yaskawa, quantity: 1
7)Touch screen: Taiwan Weinview
