Product Details:
|
| Name: | Building Material Glazed Roofing Tile Roll Forming Making Machine 3KW Main Power | Certification: | CE ISO SGS |
|---|---|---|---|
| Roller Material: | 45# Steel | Voltage: | 380V 50Hz 3phases(customized) |
| Condition: | New | Key Selling Points: | High-accuracy |
| Roller Driven Type: | Chain Transmission | Cutting Blade: | Cr12 |
| Driving: | Motor | Control System: | PLC Control |
| High Light: | roof panel roll forming machine,steel roof tile forming machine |
||
Building Material Glazed Roofing Tile Roll Forming Making Machine 3KW Main Power
Features
1.The structure is simple and the appearance of the machine is beautiful because we adopt the shape-steel structure and most of the screw is which make the machine flexible and stronger.
2.All the components of machine are from brand-famous enterprise so that they ensure the machine normal function very effectively.
3. We adopt the automatic length-fixed forming and cutting to guarantee the length to be precise and the finished product clear without deforming.
4. It is very easy to install the equipment and suitable for producing in the factory.
5. Low noise with high efficiency.
Technical parameters
| The machine is composed by the following elements | ||
| NO. | Item name | Quantity |
| 1 | Manual decoiler | 1 set |
| 2 | Leveling beach with manual shearing system | 1 set |
| 3 | Main roll forming machine | 1 set |
| 4 | Step-formed mechanism | 1 set |
| 5 | Shearing Mechanism | 1 set |
| 6 | Hydraulic Station | 1 set |
| 7 | PLC control system | 1 set |
| 8 | Runout table | 1 set |
| 9 |
Spare parts: 1.Easy damaged parts: conk 2 pcs, fuse-link 4 pcs 2. Rubber mat 1 pcs; 3.Bolt spanner 1 pcs 4. One set of cutting balde |
1 set |
| Size | about 8500-1400-1500 |
| Weight | 7.5 tons |
| Voltage | 380V/50HZ 3Phase or customize |
| Roller fixer : | middle plate |
| Frame | 350 H steel |
| Transmission | Double cChain of 1.25mm |
| Material of rollers | 45# steel, surface hard chromium plating |
| Material of shafts | 45# steel |
| Diameter of shafts | φ80mm |
| Number of rollers | 13 rollers |
| Main power | 5.5kw |
Our Difference
1. Each hydraulic part, we will use two hydraulic jack to make sure the shearing more poweful.
2. We use the pillar post as the shearing pole, it can add oil more easily.
3. All the rollers we will use the hard chroming, to make sure not damage the surface of the coil.
4. At the leveling part, we will add the filming system for the tile making machine.
5. And for the leveling part, we will manual cutter, hydraulic cutter or the others.
Our service:
| 1. Installation and training: |
|
A.If buyers visit our factory and check the machine, we will teach you how to install and use the machine, and also trainyour workers/technician face to face. |
| B.Without visiting, we will send you user manual and video to teach you to install and operate. |
|
C.If buyer needs our technician to go to your local factory, please arrange board and lodging and other necessary things. |
| 2. after Service |
| A.One year guarantee for whole machine. |
| B.24 hours technical support by email or phone call. |
| C.If there is any problem found of the machine, we will repair it for free in one year. |
FAQ:
1. Can you make the machine according to my design or photo type?
A: Yes. We have an experienced engineers to work out the most suitable design and production plan for the machine.
2: How can we be assured that you will deliver us quality machine with spare parts?
A: 1. Customers to send the technical people to our factory for checking the quality.
2. We can send the technicians to the buyer`s factory for the installation and trainning .
3. What about your warrenty?
A: Within the 18 month period, we could supply you the replacement parts for free .
If any damaged parts caused by quality problems after two years,we will also help but customer pay the cost .
If you are interested in our machine, please contact me to get more details...

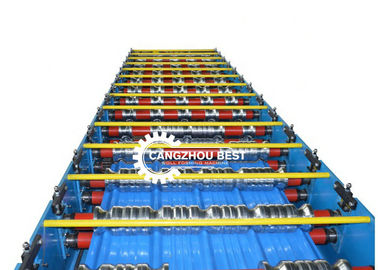

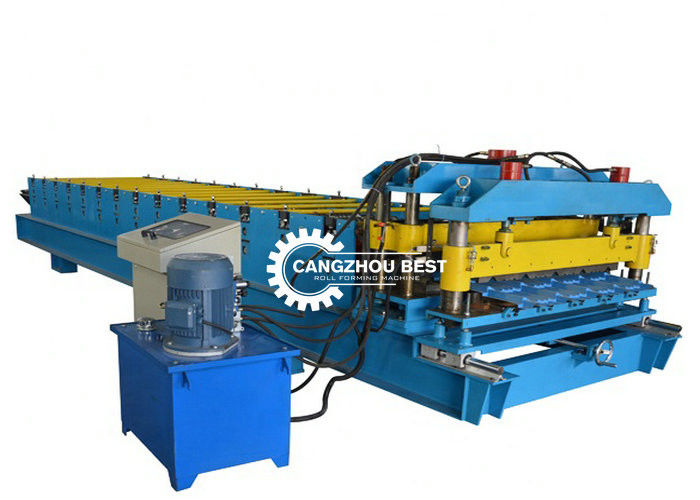

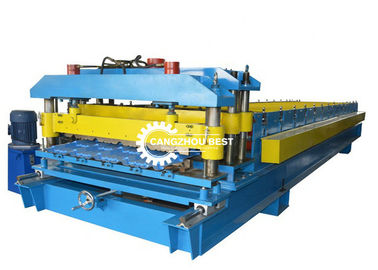

Photos:
