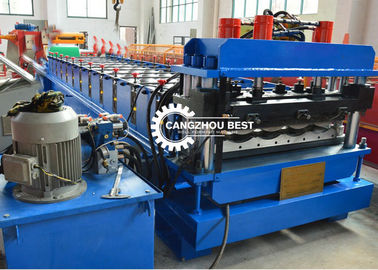

0.3-0.8mm Color Steel Glazed Roofing Tile Roll Forming Machine Chain Driven
Technology Index
Cutting distance≥150mm
Temperature of the working environment of the production line: 0—40 Celsius
Humidity of the working environment of the production line: 5-85 (No dew)
Working Voltage: Three Phase Voltages 380V (AC)
Working Environment: No corrosive gases, less dust.
Error of Cutting Distance of Glazed Tile: ±1-2mm
Main description
Roll Forming Machine: CLASSIC
Control System: PLC:( Panasonic)
Un-coiler:
Un-Coiler: 5 ton manual
De-coiling Holder: 2200mm×1620mm×1700mm
inside diameter of the uncoiler:510-610mm

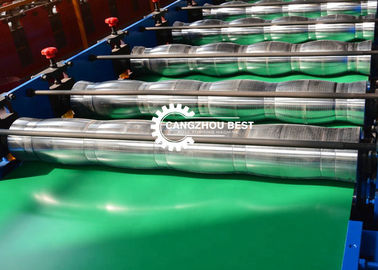

Roll forming machine:
Color Steel Sheet Thickness: Color Sheet 0.3~0.8mm
Color Steel Sheet width: 1220mm
Roller Stations: about 13 stations
Way of Drive: 1.2 inch single chain
The speed of the roll forming machine:5-6m/min
Roller Material: 40Cr steel, coated with chrome
Shaft Material and DIA:76mm, material is 45# forge steel
Maim Motor Power: 7.5kw
Error of Cutting Distance of Glazed Tile: ±1-2mm
Roll Forming Machine: 8700mm×1622mm×1400mm
Roll Forming Machine: 8000kg

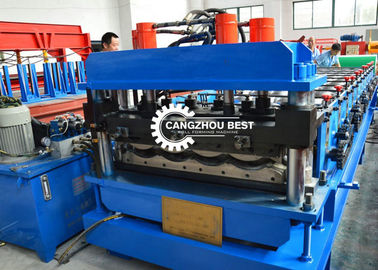

Press parts:
Type: Hydraulic
Hydraulic Station Power: 4kw
Size of the press parts: 2000*1800*1500mm
Cutting parts:
Type: Hydraulic
Max. Cutting thickness: 0.8mm
Hydraulic Station Power: 5.5kw
Automatic Hydraulic Cutting Machine: 400mm×1500mm×1100mm
Material Of Cutting: Cr12Mov quenching 58-62℃
Automatic Hydraulic Cutting Machine: 400kg
Out table:
Size of the out table: 4000*1350*1200mm
Equipment Constitution
A. Decoiling Holder
B. Membrane Apparatus

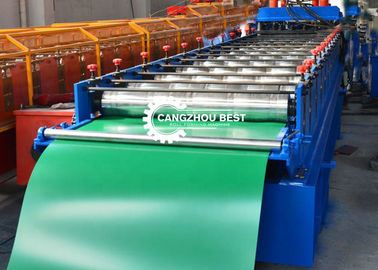

C. Color Steel Sheet Molding Machine
D. Corrugating Molding Block Press Machine
E. Molding Shears
F. Out table
Main Parameters:
|
Mainframe/Marco principal
|
350 H beams, 45# steel
|
|
Chain size/ Cadena
|
1 inch
|
|
Middle plate/ Placa media
|
16mm, 45# steel
|
|
Productivity / Productividad
|
8-12m/min
|
|
Main motor power/Potencia de motor
|
4 KW(Lichao)
|
|
Pump station motor power /Potencia del motor de la estación de bombeo
|
3kw(Delta)
|
|
Voltage/Voltaje
|
220V, 50HZ, single phase power/ monofasico
|
|
Cutting method/Metodo de corte
|
Hydraulic guide column cutting
|
|
Shearing knife/Materia de corte
|
Cr12, heat treatment, HRC 58-60℃
|
|
Cr-plating size/ Espesor de cuchillo
|
0.05 mm
|
|
Number of rollers/ Numero de rodillo
|
13 rows
|
|
Roller material/Materia de rodillo
|
45# steel, surface heat treatment chrome plating, hardness HRC 58-60℃
|
|
Shaft diameter/Diametro de eje
|
70mm, solid shaft, high-quality 45# forged steel, with an anti-return pad.
|
|
Hydraulic pump station/Estacion hidraulica
|
gear pump
|
|
Control System/ Sistema de control
|
PLC Control System, 360 degree rotation, Delta
|
|
Reducer/Reductor
|
8# Gear Reducer, Delta
|
|
Length tolerance/
Tolerancia de longitud
|
±2mm
|
|
Cutting tolerance/Tolerancia de corte
|
±1mm
|
|
Feeding material/Materia prima
|
Galvanized steel coil / color steel coil / aluminum steel coil
|
|
Decoiler / Uncoiler/Desenrollador
|
5t manual decoiler, 1000mm
|
Terms:
1. Delivery:30days after receive deposite
2. Package:export standard package for container
3. Payment:TT (30% by TT in advance,70% by TT after you inspect machine we need)
4. Delivery date:within 30 working days after receiving deposit
5. Products Warranty:18months,and we will provide the technical support for whole life of the equipment.
Services
A. The customer service department of our Group consists of knowledgeable machine experts and technicians who can answer and submit solutions to customer problems in the fastest time.
B. For us, sales are not selling products, and then go away. Our aim is to serve our customers wholeheartedly. To this end, we offer our clients free advice.
C. In the communication with customers, we not only have an in-depth understanding of the actual needs of our customers, but also provide professional advice, including the choice of raw material types and raw material thickness.
D. We provide remote services to our customers, allowing them to purchase products without any worries.
E. Warmly welcome to visit our Chinese factory and choose the machine you need
Finished Product Photo
