Steel Structure Fast Change Roll Forming Machine C Z U Purlin Section Profile

Steel Structure Fast Change Roll Forming Machine C Z U Purlin Section Profile
Steel Structure Fast Change Roll Forming Machine C Z U Purlin Section Profile Steel Structure Fast Change Roll Forming Machine C Z U Purlin Section Profile Steel Structure Fast Change Roll Forming Machine C Z U Purlin Section Profile Steel Structure Fast Change Roll Forming Machine C Z U Purlin Section Profile

Large Image :  Steel Structure Fast Change Roll Forming Machine C Z U Purlin Section Profile

Product Details:
Place of Origin: China Hebei
Brand Name: CHBEST
Certification: CE/BV/SGS
Model Number: XY80-300
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: $13500-$28500/set
Packaging Details: plastic film for naked machine
Delivery Time: 30-40 days
Supply Ability: 20 sets/month

Steel Structure Fast Change Roll Forming Machine C Z U Purlin Section Profile

Description
Product Name: Steel Structure C Z U Purlin Section Profile Fast Change Roll Forming Machine Color: Blue Or As Your Request
Machine Speed: 4-6m/min Machine Dimention: 7.5mx1.8mx1.4m
Machine Power: 11kw+5.5kw Driven System: Chain Or Gear Box
High Light:

c channel roll forming machine

,

steel frame roll forming machine



Steel Structure C Z U Purlin Section Profile Fast Change Roll Forming Machine



Technical Parameter:



Item Specification



Material

Type Galvanized coils
Thickness 1.5-3.5mm
Yield strength 235Mpa
Roller material Cr12 mould steel
Forming speed 10-15m/min
Output speed 6-8m/min
Speed adjusting mode AC Frequency
Roller drive Decelerating motor + Gear boxes drive
Cutting mode Hydraulic cutting
Cutter material Cr12 mould steel
Length measurement Encoder
Control mode Mitsubishi PLC
Operating mode Button + Mitsubishi Touch screen
Main motor 15KW
Hydraulic Station motor 5.5KW

Components:

Decoiler 1set
Feeding & guiding device 1set
Leveling device 1 set
Punching device Depend on final design
Main roll forming machine 1set
Hydraulic cutting system 1set
Controlling system 1set
Run out table 1set

Process flow:

Decoiler ---- Feeding & Guiding----Leveling----Punching----Cutting to length----Roll forming----product to run out table

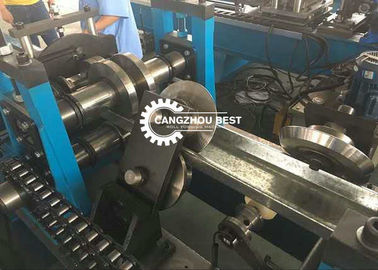

CZ purlin machine rollers

Rollers manufactured from high quality bearing steel GCr15, CNC lathes, Heat Treatment.

with black treatment or Hard-Chrome Coating for options.

With feeding material guide, body framemade from 400# H type steel by welding

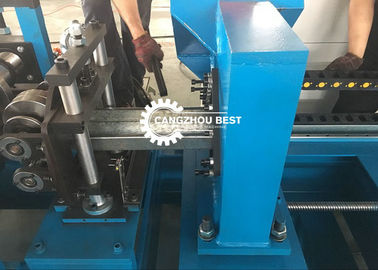

CZ purlin machine post cutter

No need to change cutter for different size,

made by high quality mold steel Cr12 with heat treatment

Cutter frame made from high quality 30mm steel plate by welding
Pre-punching & Pre-cutting, stop to punch, stop to cut
hydraulic motor:7.5KW, Hydraulic pressure range: 0-16Mpa



Decoiler

Manual Decoiler: one set

Un-powered,manually control steel coil inner bore shrinkage and stop

Max. feeding width: 500mm, coil ID range 470mm±30mm

Capacity: Max. 5Ton



Other detailes of CZ purlin machine

Suitable for material with thickness 1-3mm

Shafts manufactured from 45#,Main shaft diameter=φ80mm,precision machined

Motor driving,Gear chain transmission, 16 rollers to form and 7 rollers for straightening and levelling

Main motor=22KW , Frequency speed control. Forming speed approx.18m/min



PLC Control System Omron (Touch screen: WUXI xinjie)

Inverter brand:Taiwan DELTA,Encoder brand:Japan OMRON)

It takes only 5-10 minutes to finish all. No need to change rollers or spacers or cutters

Combined with: PLC, Inverter, TouchScreen, Encoder, etc



Guarantee:

18 Months guarantee. if some part of the machine is broken. we will supply the best part,but if the damaged parts due to operate error,buyer will pay for the shipping fee.

After-sale service:

We sent technician to your country to fix the machine.the buyer shoule bear all the cost includng:visa,roundtrip ticket and suitable accommodation,also buyer should pay the salary 100USD/DAY.

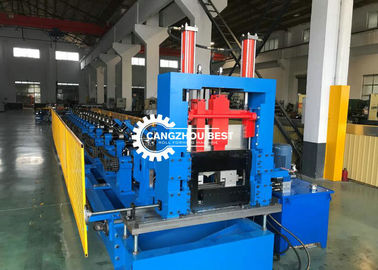

Steel Structure Fast Change Roll Forming Machine C Z U Purlin Section Profile 0
