Product Details:
|
| Product Name: | 80-300mm Interchangable C Z U Purlin Steel Frame Profile Roll Forming Machine | Warranty: | 2 Years |
|---|---|---|---|
| Machine Speed: | 10m/min | Material Thickness: | 0.3-0.8mm |
| Driven System: | Chain Or Gear Box | Control System: | PLC |
| High Light: | c channel roll forming machine,steel frame roll forming machine |
||
80-300mm Interchangable C Z U Purlin Steel Frame Profile Roll Forming Machine
Specifications
| No. | 80-300mm Interchangable C Z U Purlin Steel Frame Profile Roll Forming Machine | |
| 1 | Suitable to process | Color steel plate, galvanized sheet, aluminum coils and etc. |
| 2 | Width of the feeding material | 500mm |
| 3 | Roller station | 18 rows |
| 4 | Thickness of feeding material | 1-3mm |
| 5 | Power | 15kw |
| 7 | Productivity | 8-12m/min |
| 8 | Diameter of the roller | Φ80mm |
| 9 | Weight | About 12 T |
| 10 | Size | 9500*1300*1400mm |
| 11 | Voltage | 380V 50Hz 3phases |
| 12 | Rolling material | Gcr15 steel |
| 13 | Material of the cutting plate | Cr12 |
| 14 | Wall thickness of main forming machine | 20mm steel plate |
| 15 | Main forming machine body4 | 00 mm H steel |
| 16 | Control system | PLC control |
|
Can be customized according to customer requirements or drawings |
||
Forming
Forming and Cutting: Cut the sheet after roll forming to required length
Material of blade: Cr12, 58-62 HRC hardness
Hydraulic power : 3KW
Length measuring : Automatic encoder length measuringTolerance of length : +/- 1.5mm for each piece
Hydraulic Station
Power: 4kw
Hydraulic oil: 46# hydraulic oil
Working pressure:12-16Mpa adjustable
It is controlled by gear pump. After filling the hydraulic oil into the hydraulic oil tank, the pump drives the cutter machine to begin the cutting job.
PLC control system
Taida PLC is adopted to organize all actions of the machine. The length of workpiece is adjustable according to the setting of on the PLC. Two optional control modes: automatic and manual. By automatic mode, the machine can realize fully automatic working. In order to make the machine has a long service life and easy maintenance; we only adopt globally famous electrical components. And by our special designed program, the human-computer interface is very easy to be adopted by any level of operators.

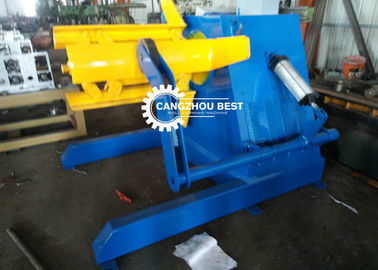

Colour steel feeding rack
The feeder rack has large load-carrying capacity and long service life. Its characteristics are as follows: it includes a machine base, two ends of which are respectively installed with screw rods, one side of which is connected with pulley. The screw rods on both sides are respectively sleeved with connection rings, and the sleeve rings are respectively connected with brackets. The brackets are respectively mounted on the surface of the machine base through side plates on both sides, and the brackets are respectively connected with conical brackets through rotating axles.
Our service
Terms of Payment: 30% of the total contract value paid by T/T as down payment, the rest 70% of the total contract value to be paid by T/T after inspection by buyer in seller’s factory while before delivery.
Delivery: 45 days after receipt of advance payment
Service: we send technician to your country to fix the machine.The buyer should bear all the cost including: visa, Round trip tickets and suitable accommodation, also buyer should pay salary 80USD/day.
Warranty: 18 months limited warranty
During warranty: parts are free but buyer pay for the shipping fee.
Contact Person: Mr. Arno Hao
Tel: +8618717894416
