Product Details:
|
| Certification: | CE/ISO9001 | Voltage: | 380V 50Hz 3phases |
|---|---|---|---|
| Condition: | New | Weight: | About 3 Tons |
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas | Use: | Produce Ridge Cap Tile |
| High Light: | ridge cap machine,steel roof tile forming machine |
||

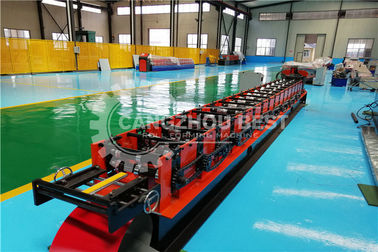

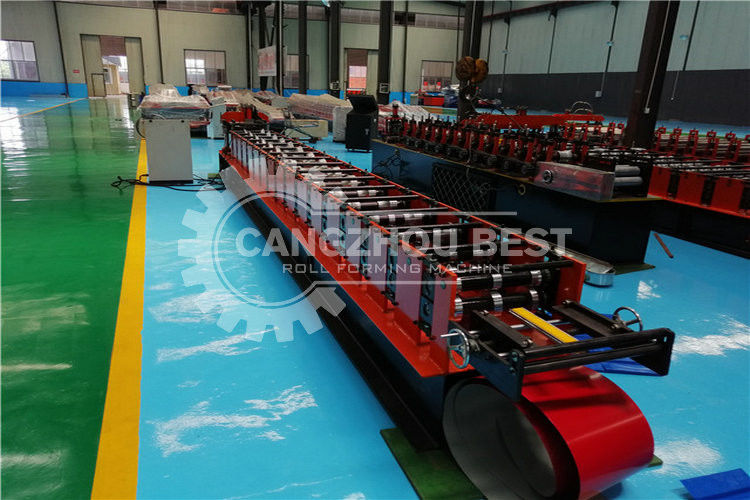

Roof Ridge Cap Roll Forming Machine With Single Chain Transmission, 15 Stands of Forming Stations
Description of Roof Ridge Cap Roll Forming Machine
Main Components
| Decoiler | 1 Unit |
| Feeding guide | 1 Unit |
| Main roll forming machine | 1 Unit |
| Hydraulic cutting | 1 Unit |
| Hydraulic station | 1 Unit |
| PLC computer control | 1 Unit |
| Output table | 1 Unit |
Main Specifications of Roof Ridge Cap Roll Forming Machine
| 1. Manual Decoiler | |
| Capacity | Max load 3000KG |
| De-coiler type | Manual passive type de-coiler |
| 2. Feeding Guide | |
| Function | It is used to release the head of coil and feed into the forming machine, making the coil straight and flat after de-coiling. |
| 3. Main roll forming machine | |
| Main motor power | 5.5KW |
| Roller Stands | Approx. 15 stations (depend on final design) |
| Machine frame stand | Welded structural steel with shot blasting treatment |
| Forming Structure | Guiding Column |
| Transmission | Chain drive |
| Material of Roller | High grade 45# steel, roller surface with 0.05mm hard chrome HRC58-62 |
| Material Shaft | High grade 45# steel with heat treatment |
| Shaft Diameter | ¢70mm |
| 4. Cutting Device & Hydraulic Station | |
| Adopts cutting die with same profile as the product, there is no waste when cutting | |
| Hydraulic cutting | |
| Blade material | Cr12 with quenched treatment |
| Cutting Tolerance | +/-1.5mm |
| Heat Treatment of Cutting Blade | HRC50-60 |
| Hydraulic Power | 2.2KW |
| 5. PLC Control System | |
| Adopts PLC control technology, frequency adjust speed technology, realize the automatic production | |
| Provide good man and machine screen, which can set the batches, plate length, and quantity | |
| Using encoder to calculate the number and measuring the length | |
| Operation Type | Touch screen + Button |
| Electrical Control | PLC frequency control system with touch screen |
| PLC Brand | PANASONIC |
| Encoder | Omron Brand |
| Size of PLC control board | 700mm (L) x 1000mm (H) x 300mm (W) |
| 6. Run-out Table | |
| It is used to support the finished panels | |
| The table we supply is 2 pieces, it can support panels with 10000mm at normal condition | |
| The frame of supporter is welded by square-steel. | |
| Simple non-power table type. | |
