Product Details:
|
Certification: | CE/ISO9001 | Voltage: | 380V 50Hz 3phases |
---|---|---|---|
Condition: | New | After-sales Service Provided: | Engineers Available To Service Machinery Overseas |
Tile Type: | Colored Steel | Warranty: | Ppgi Or Galvanized Sheet Coil |
Raw Material: | Ppgi Or Galvanized Sheet Coil | ||
High Light: | ridge cap machine,steel roof tile forming machine |

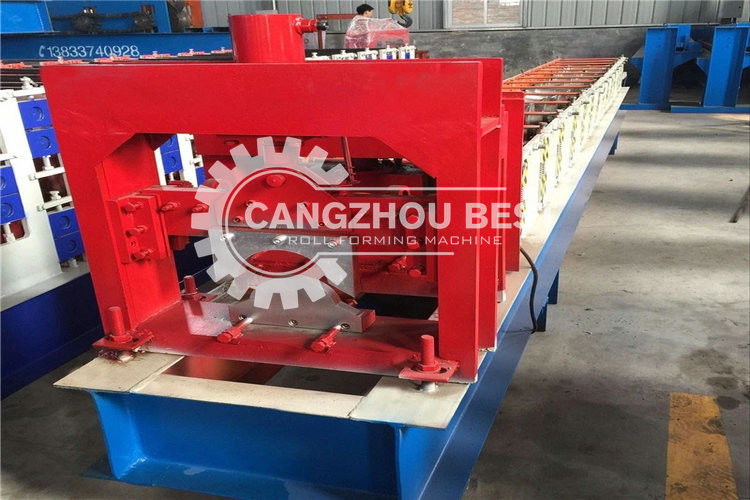

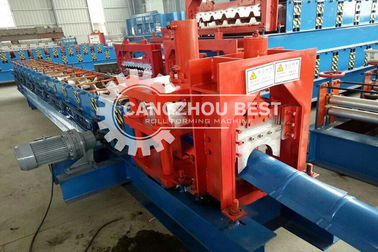

2020 new type glazed roof sheeting metal ridge cap profile roll forming machine price
Product Discription
We test our machine strictly to make sure every customer get it satisfied. Your profile drawing is welcomed and acceptable. We can also design the roll forming machine as your requirement.
What we can offer is a versatility and meanwhile quality assurance for any panel machines from economic basic production speed to fast panel lines;
We offer a range different panel roll formers for wall, roof, steel decks, step tiles &standing seam profiles.
Equipment components:
Man-made uncoiler →Roll forming machine →computer control system →hydraulic control system →cutting
Our products are widely used in various industrial factory, civilian building, warehouse and easy steel building manufacturing, and have features such as nice appearance and durable.
Configurations | Manual Uncoiler ,Guiding Platform ,Coil Strip Leveler ,Main Machine Of Roll Forming ,Electric-Motor, Glazed Tile Pressing Device ,Cutting Device ,Hydraulic Station ,PLC Control, Supporter Table. |
Control System | PLC Delta Inverter |
Main Frame | 400mm H-Beam |
Main Power | 4 kw |
Pump Power | 3 kw |
Power Supply | 380V, 3-Phase,50Hz |
Forming Speed | 4-8m/min |
Roll Station | 14 stands |
Roller Diameter | 65mm |
Hydraulic Pressure | 10-12MPa |
Forming Size | 312mm |
Feeding Thickness | 0.27-0.8mm |
Feeding Width | 600mm |
Backboard Thickness | 18mm |
Chain Size | 33mm |
Cutter Standard | Cr12 |
Roller Standard | Cr12 |
Cr-Plating Size | 0.05mm |
Overall Size | 7500×1000×1200mm |
Total Weight | 3T |
All technical parameters can be changed, according to user s need.
2.Process flow:
Decoiler -- Feeding & Guiding -- Roll forming---Hydraulic pressing ---Hydraulic Cutting – product to run out table
3.Components of machine:
Decoiler | 1set |
Feeding & guiding device | 1set |

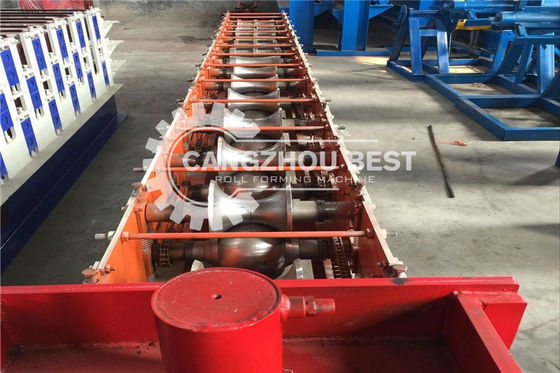

Main roll forming machine | 1set |
Hydraulic pressing system | 1set |
Hydraulic cutting system | 1set |
Controlling system | 1set |
Run out table | 1set |
