Product Details:
|
| Voltage: | 380V 50Hz 3phases | Condition: | New |
|---|---|---|---|
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas | Tile Type: | Colored Steel |
| Use: | Roofing | Warranty: | 1 Year |
| High Light: | ridge cap machine,steel roof tile forming machine |
||

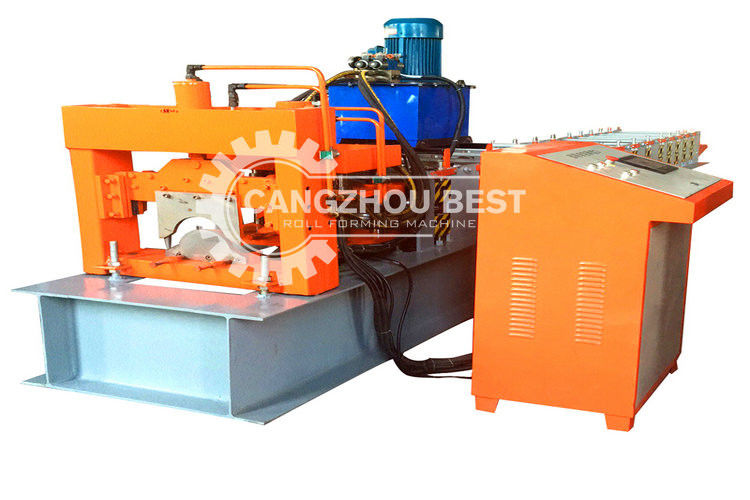

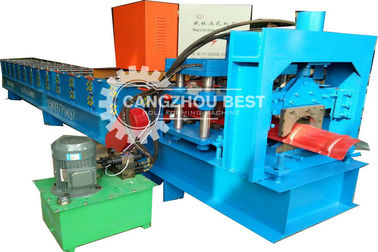

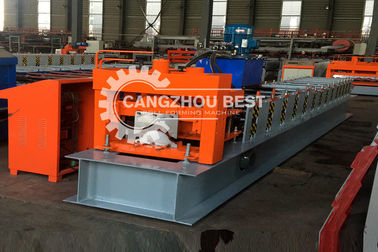

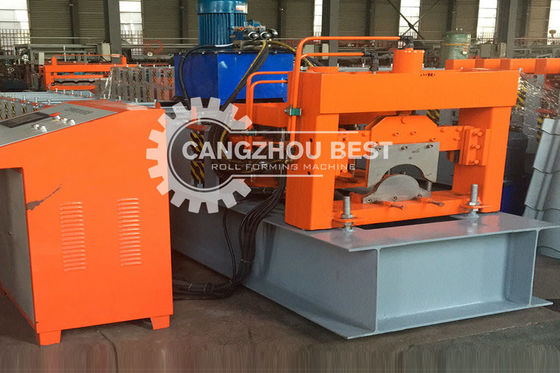

High quality sheet metal colour steel roof ridge cap rollformer equipment / ridge tile forming machine for spanish tile
Product Description
Our Roof Ridge Cap Press Roll Forming Machine adopts station to increase its solid nature, meanwhile
making it more attractive.Additionally, it is controlled by control panel as well as simple push-button.So that it is more convenient for the worker to operate the machine.The machine are widely used in some temporary construction or civil buildings.
Process flow of roof ridge cap press roll forming machine
Decoiling--feeding---forming---pressing---cutting---production
Features
1. low noise, easily operate
2. PLC control system, full automatic
3. adopt after-cutting
4. good after-service
| No. | Used metal ridge cap machine | |
| 1 | Suitable to process | Color alu-zinc steel coil |
| 2 | Roller | 12-16Rows |
| 3 | Dimensions | 6.7*1*1.5m |
| 4 | Motor Power | 5.5Kw |
| 5 | Pump Station Motor | 4Kw.Lichao Brand |
| 6 | Thickness of the plate | 0.3-0.8mm |
| 7 | Productivity | 3-5m/min |
| 8 | Material of the cutting blade | Cr12,Quenched treatment 58℃-60℃ |
| 9 | Diameter of the roller | Φ50mm |
| 10 | Weight | About 3200kgs |
| 11 | Main structure of the machine | 350H beams |
| 12 | Processing precision | Within 1.0mm |
| 13 | Side panel of machine | 16mm |
| 14 | Chain Wheel and Cycle Chain | 1 Inch |
| 15 | Voltage | 380V 50Hz 3phases or as customer's need |
| 16 | Control system | PLC control (Delta) |
| 17 | Frequency system | Delta |
| 18 | Drive mode | Motor driver |
| 19 | Touch screen | Delta |
| 20 | Rolling materials | 45# forging steel with chromium plate |
| 21 | Length Tolerance | ±2mm |
Details Images
Name:Manual decoiler |
||
| Usage | t is used to support the steel coil and uncoil it in a turnable way. The steel coil is uncoiled by hand. Loading |  |
| capacity | 5T | |
| Inner diameter | 500-508mm | |
| Name:Feeding table | ||
| Put the raw material(steel plate) through the beach to manufacture and process, it can guarantee that the products are neat, parallel and everything is uniformity. Please refer to the equipment regulation to know the function of locate angle iron. | |
|
| Name: Main rollers | ||
| Material of rollers | High grade 45# Forging Steel ,roller surfaces polishing, hard plating , The polished surface and the heat treatment towards the molds also can keep the molding plate surface smooth and not easy to be marked when it is being stamped. | |
| Name:Computer Control Cabinet | ||
| PLC | Delta PLC(or according to customer's inquirement) | |
| Touch Screen | Delta | |
| Frequency system | Delta | |
| Language | Chinese/English and Russian Or Spanish | |
| Name: Motor driver | ||
| Main motor size | 5.5Kw | |
| Brand | The famous brand from Jermany or according to customer's need | |
| Name :Hydraulic station power | ||
| Hydraulic station power | 4Kw | |
| the brand | Lichao, Shanghai | |
| Name: Cutting head | ||
| It adopts the Motor drive and automatic location to decide the dimension and cut the target products. | |
|
| Material of blades | Cr12,quenching treatment | |
| Name: Received goods table | ||
| It adopts welded steel and supported roller to transmit the products,which is used to collect the finished products. | |
|
| 2 pieces 3meters | ||
