Product Details:
|
| Name: | Steel Profile Vasetile Roof Sheet Roll Forming Machine Fir Kenya Market | Control System: | PLC |
|---|---|---|---|
| Machine Speed: | 8-12m/min | Shaft Diameter: | 70mm |
| Shaft Material: | 45#steel | Material Thickness: | 0.3-0.8mm |
| High Light: | roof panel roll forming machine,steel roof tile forming machine |
||

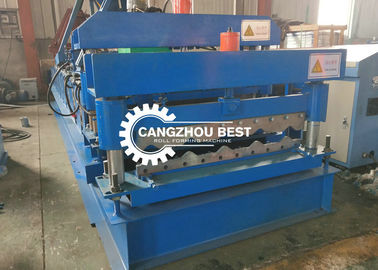

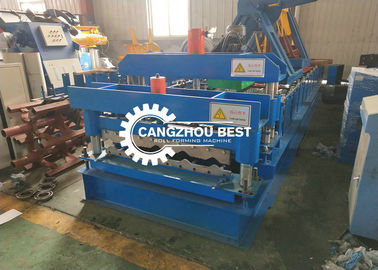

Steel Profile Vasetile Roof Sheet Roll Forming Machine for Kenya Market
Working flow:
Decoiler------feeding------roll forming------pressing&cut to length-----output table
Machine components list:
| Name | NO. | Unit |
| 1.De-coiler | 1 | set |
| 2.Forming machine | 1 | set |
| 3.Pressing&Cutting device | 1 | set |
| 4.PLC control box | 1 | set |
| 5.Hydraulic pump station | 1 | set |
| 6.Production support table | 1 | set |
Main technical parameter:
1. DECOILER
(1) Max. Width: 1000 mm
(2) Inner Diameter: Φ450 – Φ550 mm
(3) Out Diameter: 1500 mm
(4) Max. Loading Capacity: 5000 kgs
2. ROLL FORMING MACHINE
(1) Material Thickness: 0.3-0.8 mm PPGI and GI
(2) NO. of roller Stations:11groups
(3) Material for Rollers: high grade 45# steel polished and coated with chrome HRC55-60°
(4) Material for shaft: high grade 45# steel polished and coated with chrome HRC55-60°
(5) Diameter of shaft: 70mm
(6) Frame panel thickness:14mm
(7) Bottom frame: 36# H-section steel
(8) Motor Power: 3kw
(9)Driven type:0.6＂Chain

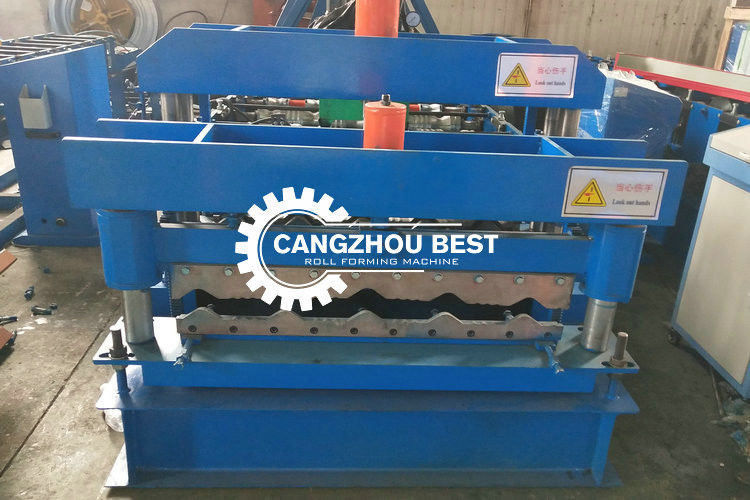

3. CUT-OFF DEVICE
(1)Material for Cut-Off Modular:Cr12 steel after treatment
(2)Hardness for Heat Treatment:HRC55 – 60°
(3)Cut-Off Type: Hydraulic, Automatic Cut-Off
(4) Motor for Hydraulic Stand: 3kW
4.PLC CONTROL BOX
(1) Type: PLC Frequency Control System with touch screen
(2) PLC Brand: Delta
(3) Encoder Brand: Omron
(4)Length Error: ±2mm
(5)Language: English and Chinese
(6)Voltage: 380v/50HZ, 3Phase (it depends on customer requirement)
5. HYDRAULIC PUMP STATION
(1) Motor power: 3 kw
(2)Oil type: 46# hydraulic oil
(3) Pump brand: China brand
PLC Oil pump
6. PRODUCTION SUPPORT TABLE
(1) No power type
(2)Length: 2m
Spare parts
Chain x 1, bearings x1, limit switch x1
Installation
① If buyers visit our factory and check the machine, we will teach you how to install and use the machine, and also train your workers/technician face to face.
② Without visiting, we will send you user manual and video to teach you to install and operate.
③ If buyer needs our technician to go to your local factory,please arrange board and lodging and other necessary things.
Our Advantage
| 1. We are a factory with nearly 20 years experiences on Roll Forming Machines; |
| 2. We have our own research and development team with strong ability to solve all kinds of problems; | ||||||
| 3. We have stable raw material suppliers to ensure the best quality and on time supplying with low cost; | ||||||
| 4. We have more than 20 technicians that can go abroad for the after-sale service; | ||||||
|
5. We have more than 100 kinds and models products for your choice, you can find the most kind of roll forming machines from us; |
||||||
|
6. We have Laser Cutting Machine, CNC Machining Center, Polishing Line, Painting Line, etc. advanced production equipments to ensure the quality of each part and the best appearance of our machines; |
||||||
| 7. Our machines have reached the International Inspection Standards; | ||||||
| 8. We have got the ISO9001:2008 Certificate and CE Certificate; | ||||||
| 9. We are always waiting to serve you 7 days a week and 24 hours a day. | ||||||
