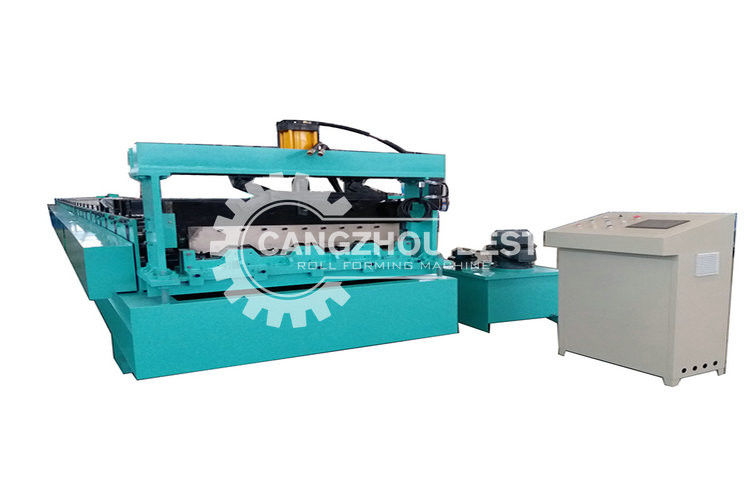

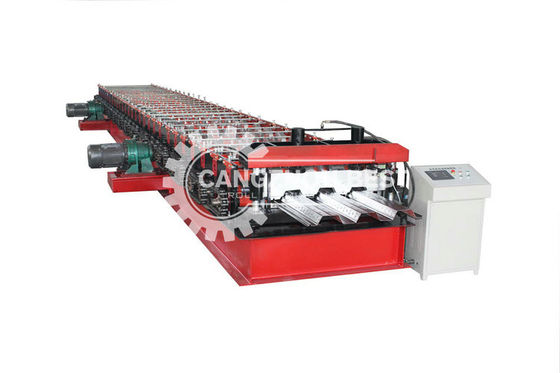

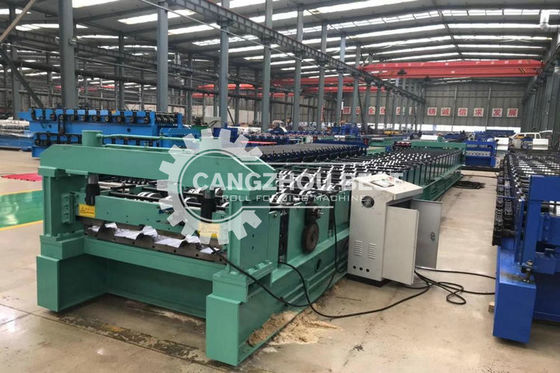

Galvanized Metal Roofing Sheet Making Machine For Steel Decking Floor Tile

Tile Galvanized Sheet Metal Roofing Used Steel Decking Floor Tile Making Machine Price

Technical Detail

1. Machine specification: forming thickness(0.3-1.0)xL, yield strength≤G250Mpa

2. Forming speed: 12-15M/min (EXCLUDING CUTTING STOP TIME)

3. Forming roller: about 20 groups

4. Main motor power: 7.5KW

5. Hydraulic station power:4KW

6. Roller material: 45# forged steel, surface coated with chrome

7. Main shaft material: 45# steel

8. Main axis dia.: 68mm

9. Hydraulic cutting pressure: 10-12Mpa

10. Cutting method: hydraulic powered, cutting after roll forming.

11. Cutting blade material: Cr12 quenching treatment

12. Electrical controlling system: Whole line adopted PLC control, cut to length tolerance≤2mm

4)Our advantages
1. Anti-rust roller: CNC machine tooled, Plated with 0.05mm hard chrome .to protect surface shiniing and strong
2. Heat treatment: Heat treatment for cutting frame to remove the steel stress, to avoid deformation.and hardness 60 degree.
3. Cutter blade: Cr12 mould steel with quenched treatment, long life time.
4. High precision: shafts for rollers are tooled by grinding machine. Rollers are CNC processed to ensure precision performance.
5 .automatic PLC : introduced Mitsubishi PLC with touch screen ,inverter,transformer.
6. powerful driving system: big inch train,or gear box driving system.
7. Excellent services: Technician can be sent to your factory to install the machine and train your workers. Lifttime services for our machines.

Detailed Images
5T manual decoiler
Dimensions	1700mm*1000mm*800mm
Width of feeding	1300mm
Internal diameter of coil	variable, from 480 mm to 570 mm Maximum coil weight: 5000 Kg;
Mode of expand & fight	inner expand &fight by manual Way of feeding: manual

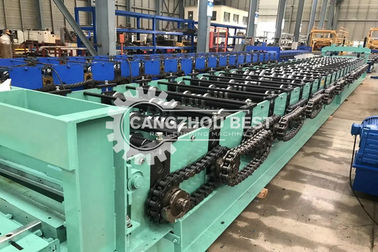

Forming section
Material of the profile	Q195, Q235, GI or color steel
Thickness range	0.5-1.2mm
Main motor power	15kwx2, AC motor, motor inside of main machine (Brand: Guomao of China) (according the final design)
Machine Voltage, Frequency, Phase	380 V, 50 Hz, 3Phase Roll station:30 stations (according the final design)
Roller material	ASTM1045 chrome plated surface with hardnesss,CNC,
Shaft diameter	￠85mm material: SAE1045 with quenching and tempering
Machine roll forming speed	￠85mm material: SAE1045 with quenching and tempering
Machine roll forming speed	not less than 15m/min Transmission: by chain, one inch, double line
Cutting
Material of blade	Cr12, 58-62 HRC hardness
Cutting power by hydraulic	5.5KW
Working pressure	12-20Mpa adjustable
Length measuring	Automatic encoder length measuring, brand: Omron
brand	Omron
	The cutting sequence is also contained and controlled by the same PLC program
Tolerance of length	+/- 1.5mm for each piece end product
out table
Frame	welding by tube
Size	about 1.0m long*1.0mwide*0.9mhigh One out table with some support roller
Supporter roller	ASTM 1045 with chrome Diameter of rollers: 55mm
Color	Blue
Quantity	2units
Hydraulic station
Hydraulic power	5.5kW
Working pressure	12Mpa adjustable
Solenoid valve	1 group
Hydraulic oil	46# hydraulic oil
Color	Blue (or base on customer request)
Control carbinet
	Programmable setting of profile length and quantity
	Automatic stopping of the equipment after completion of the cutting programme
Operating system language	English and Chinese
	Computer used to control length & quantity. Machine will automatically cut tolength and stop when required quantity is achieved
)PLC brand	Panasonic
Frequency converter brand	Yaskawa, quantity: 1
Touch screen	Taiwan Weinview
