Galvanized Steel Big Power 8-25m/min Metal Deck Roll Forming Machine

Galvanized Steel Big Power 8-25m/min Metal Deck Roll Forming Machine
Galvanized Steel Big Power 8-25m/min Metal Deck Roll Forming Machine
Galvanized Steel Big Power 8-25m/min Metal Deck Roll Forming Machine Galvanized Steel Big Power 8-25m/min Metal Deck Roll Forming Machine Galvanized Steel Big Power 8-25m/min Metal Deck Roll Forming Machine Galvanized Steel Big Power 8-25m/min Metal Deck Roll Forming Machine Galvanized Steel Big Power 8-25m/min Metal Deck Roll Forming Machine

Large Image :  Galvanized Steel Big Power 8-25m/min Metal Deck Roll Forming Machine

Product Details:
Place of Origin: CHINA
Brand Name: BEST
Certification: CE
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD6000--10000
Packaging Details: a.need one 40ft container b.Fit for ocean shipping c.Main body of roll forming machine fixed to container by 8mm diameter steel wire; Rollers and shaft is covered with anti-rust oil; Spare parts in carton box
Delivery Time: 30 work days
Payment Terms: L/C,T/T
Supply Ability: 20 sets/month
Contact Now

Galvanized Steel Big Power 8-25m/min Metal Deck Roll Forming Machine

Description
After-sales Service Provided: Engineers Available To Service Machinery Overseas Voltage: 380V 50Hz 3phases
Condition: New Weight: About 15T
Use: Roof And Wall Or Any Certification: CE/ISO9001
Highlight:

panel roll forming machine

,

cold roll forming machine

Galvanized Steel Big Power 8-25m/min Metal Deck Roll Forming Machine
High-performance metal deck roll forming machine designed for steel floor deck systems with operating speeds of 8-25 meters per minute.
Production Workflow
Complete floor deck roll forming system includes:
  • 5-ton manual decoiler
  • Feeding table
  • Roll forming machine
  • Hydraulic cutter
  • Receiving table
Machine is controlled by Delta PLC control system with Mitsubishi PLC available as an option.
Galvanized Steel Big Power 8-25m/min Metal Deck Roll Forming Machine 0
Technical Specifications
Category Parameter Specification
Raw Material Type GI (Galvanized Iron)
Feeding Width Customizable to customer requirements
Thickness 0.8-2 mm
Decoiler Operation Manual
Weight Capacity 5 Tons
Main Body Roller Station 24 row
Shaft Diameter 75 mm
Shaft Material 45# steel with 0.05mm chrome plating
Roller Material Bearing steel
Type Chinese type
Frame 400mm H-beam
Frame Thickness 20 mm
Material Cr12 tool steel
Operation Type Hydraulic automatic
Working Speed 8-15 m/min
Power System Driving Method Chain 2 inch
Main Motor 11 KW
Voltage 380V/50HZ, 3 phase
Control System Electric Box PLC control system with inverter
PLC Brand Delta (Made in Taiwan)
Inverter Brand Delta (Made in Taiwan)
Language Chinese and English

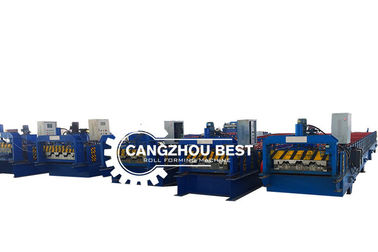

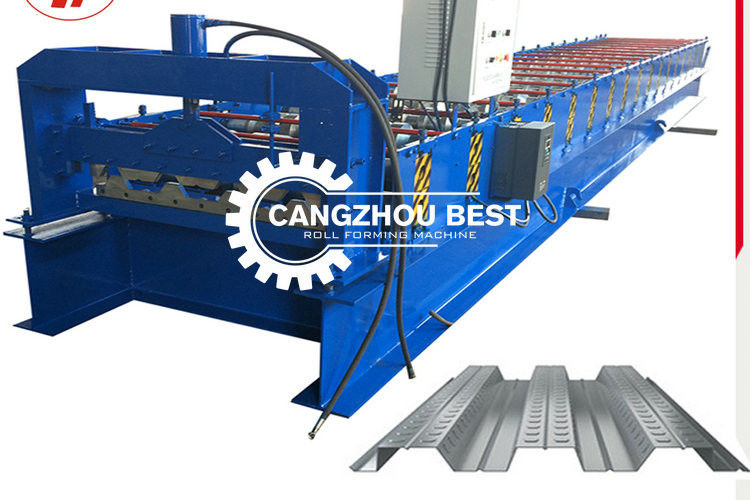

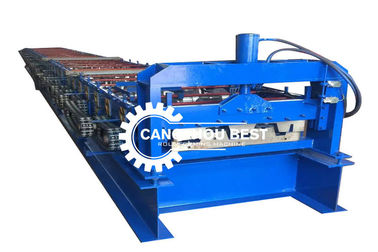

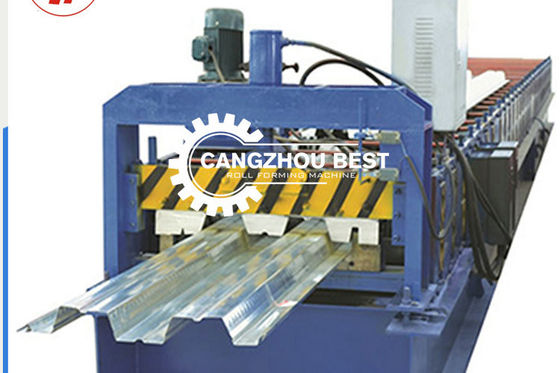

Machine Gallery
Galvanized Steel Big Power 8-25m/min Metal Deck Roll Forming Machine 1
Galvanized Steel Big Power 8-25m/min Metal Deck Roll Forming Machine 2
