Galvanized Steel Double Decking Sheet Floor Roll Forming Machine

Large Image : Galvanized Steel Double Decking Sheet Floor Roll Forming Machine

Product Details:

Place of Origin:	CHINA
Brand Name:	BEST
Certification:	CE
Model Number:	YX1025

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	USD6000--10000
Packaging Details:	a.need one 40ft container b.Fit for ocean shipping c.Main body of roll forming machine fixed to container by 8mm diameter steel wire; Rollers and shaft is covered with anti-rust oil; Spare parts in carton box
Delivery Time:	30 work days
Payment Terms:	L/C, T/T
Supply Ability:	20 sets/month

Contact Now

Galvanized Steel Double Decking Sheet Floor Roll Forming Machine

Description

After-sales Service Provided:	Engineers Available To Service Machinery Overseas	Voltage:	380V 50Hz 3phases
Condition:	New	Weight:	About 15T
Use:	Roof And Wall Or Any	Certification:	CE/ISO9001
Highlight:	galvanized steel decking machine , double deck floor forming machine , roll forming machine for steel sheets

Galvanized Steel Double Decking Sheet Floor Roll Forming Machine

Working flow of floor deck roll forming machine

Floor deck roll forming machine include one set 5 ton manual decoiler, feeding table, roll forming machine , hydraulic cutter and receiving table.Machine is controled by Delta PLC control system, we also have Mitsibishi PLC for option.

QQ截图20170329205629

Floor deck roll forming machineParameters

Component:

Decoiler ----------------------------1set

Forming Machine ----------------1set

Cutting device---------------------1set

control box-------------------------1set

Hydraulic oil pump---------------1set

NO	Type		Specification
1	Raw material	Type	GI
		Feeding width	As customer need
		Thickness	0.8-2 mm
2	Decoiler	Operation	Manual
2	Decoiler	Weight apacity	5 Tons
3	Main body	Roller station	24 row
		Diameter of shaft	75 mm
		Shaft material	45# with 0.05mm chrome
		Roller material	Bearign steel
		Type	Chinese type
		Frame	400mm H-beam
		Frame thickness	20 mm
		Material	Cr 12
		Operation	Hydraulic automatic
		Working speed	8-15 m/min
4	Power	Driving way	Chain 2 inch
		Main motor	11 KW
		Voltage	380V/50HZ, 3 phase
5	Control box	Electric box	PLC control system, inventer
		PLC brand	Delta made in Taiwan
		Inverter brand	Delta made in Taiwan
		Language	Chinese and English

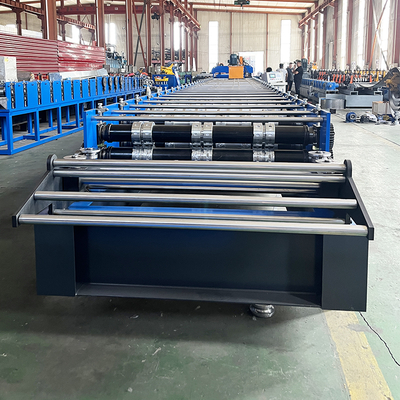

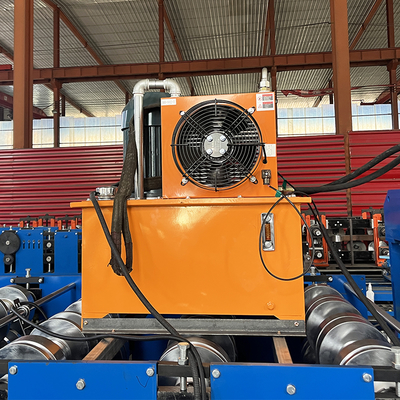

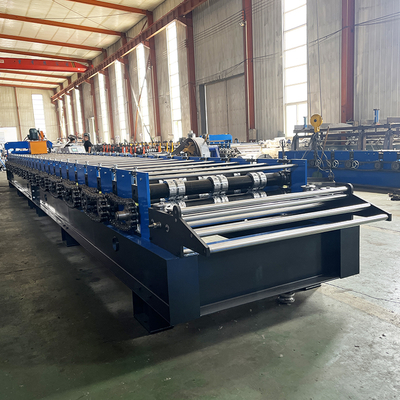

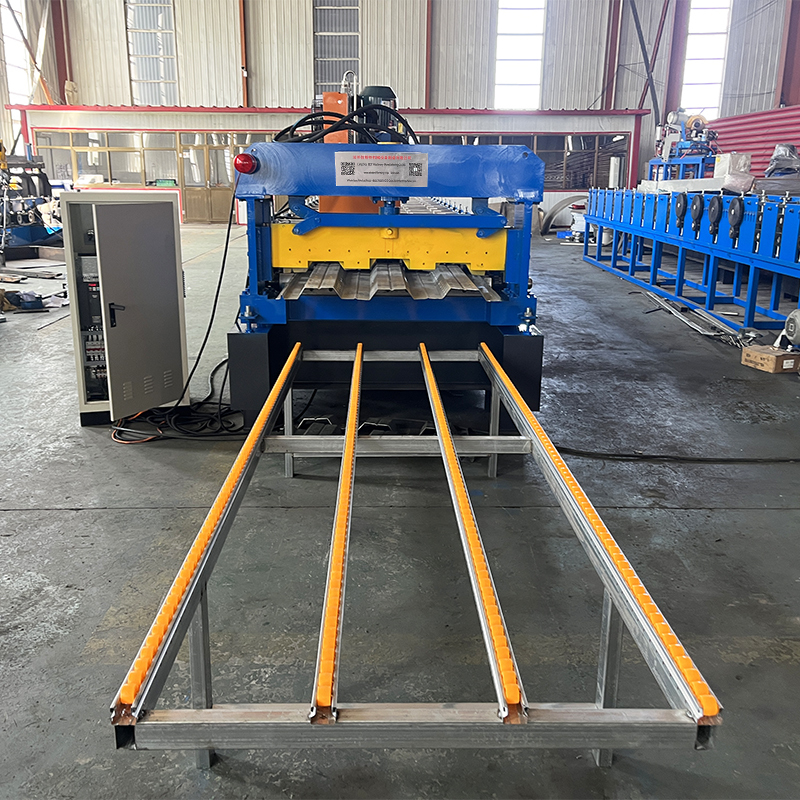

Galvanized Steel Double Decking Sheet Floor Roll Forming Machine 1

Galvanized Steel Double Decking Sheet Floor Roll Forming Machine 2
