Product Details:
|
| Name: | Building Material Single Sink Zinc Sheet Metal Roof Tile Roll Forming Making Machine | Power: | 5.5kw |
|---|---|---|---|
| Cutting: | Hydraulic | Thickness: | 0.3-0.8MM |
| Control System: | PLC | PLC Brand: | DELTA |
| High Light: | roof panel roll forming machine,steel roof tile forming machine |
||

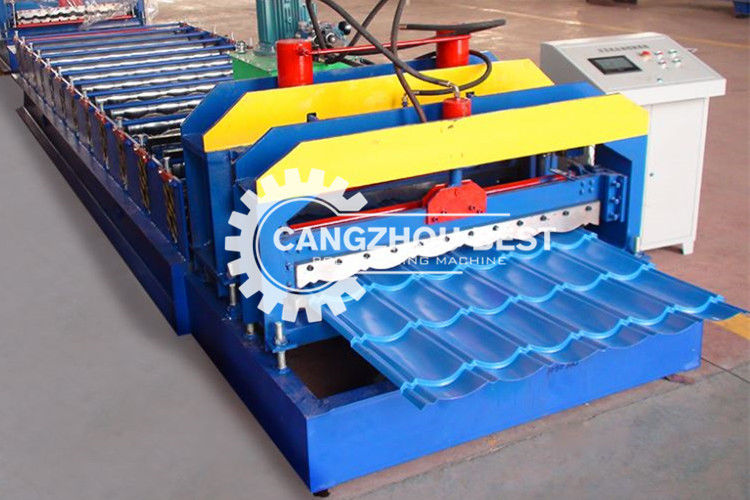

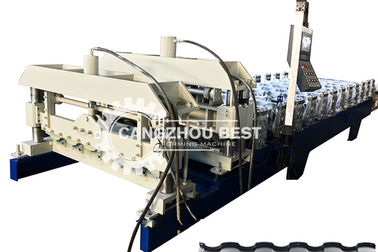

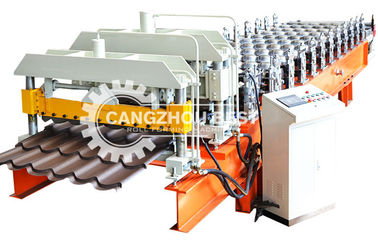

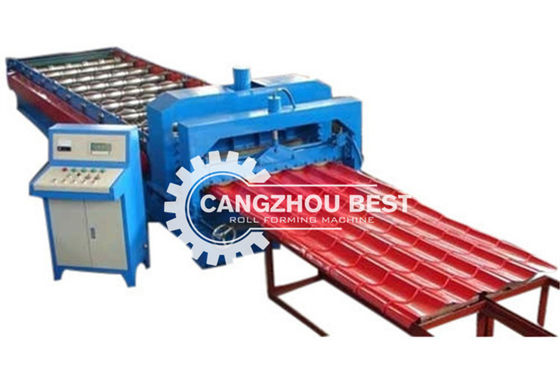

Building Material Single Sink Zinc Sheet Metal Roof Tile Roll Forming Making Machine
| Name | NO. | Unit |
| 1.De-coiler | 1 | set |
| 2.Forming machine | 1 | set |
| 3.Pressing&Cutting device | 1 | set |
| 4.PLC control box | 1 | set |
| 5.Hydraulic pump station | 1 | set |
| 6.Production support table | 1 | set |
| 1.Suitable material | Color steel sheet , galvanized steel sheet,aluminum sheet |
| 2.Installation Dimension (L*W*H): | 6.5m*1.5m*1.4m(depend on design) |
| 3.Main motor power | 3KW ~4KW with Cycloidal reducer |
| 4.Hydraulic station power | 3KW ~4KW |
| 5. Hydraulic oil pump | CB-E 310 |
| 6.Thickness of material | 0.2mm~0.8mm |
| 7.Diameter of principal axis | Φ70-90mm |
| 8.Material expand width | 1000,1200,1250mm |
| 9.Electric tension | 380V 3phase 50HZ or as the customer's requirements |
| 10.Material of roller | High grade 45# forged steel plated with hard chrome plating |
| 11.Controlling system | PLC |
| 12.Processing speed | 3-6m/min |
| 13.Processing precision within | 1.00mm (depend on design) |
| 14.Material of cutting blade | Cr12 mould steel with quenched treatment |
| 15.Kind of drive | 0.6 inch chain link bearing model 6210 |
| 16.Roller station | 8-20 Rollers |
| 17.Roller material | high grade 45#steel; Cr12 quenching |
| 18. Leak frame load-bearing | 4.6T |
1. DECOILER
(1) Max. Width: 1000 mm
(2) Inner Diameter: Φ450 – Φ550 mm
(3) Out Diameter: 1500 mm
(4) Max. Loading Capacity: 5000 kgs
2. ROLL FORMING MACHINE
(1) Material Thickness: 0.3-0.8 mm PPGI and GI
(2) NO. of roller Stations:11groups
(3) Material for Rollers: high grade 45# steel polished and coated with chrome HRC55-60°
(4) Material for shaft: high grade 45# steel polished and coated with chrome HRC55-60°
(5) Diameter of shaft: 70mm
(6) Frame panel thickness:14mm
(7) Bottom frame: 36# H-section steel
(8) Motor Power: 3kw
(9)Driven type:0.6＂Chain
3. CUT-OFF DEVICE
(1)Material for Cut-Off Modular:Cr12 steel after treatment
(2)Hardness for Heat Treatment:HRC55 – 60°
(3)Cut-Off Type: Hydraulic, Automatic Cut-Off
(4) Motor for Hydraulic Stand: 3kW
4.PLC CONTROL BOX
(1) Type: PLC Frequency Control System with touch screen
(2) PLC Brand: Delta
(3) Encoder Brand: Omron
(4)Length Error: ±2mm
(5)Language: English and Chinese
(6)Voltage: 380v/50HZ, 3Phase (it depends on customer requirement)
5. HYDRAULIC PUMP STATION
(1) Motor power: 3 kw
(2)Oil type: 46# hydraulic oil
(3) Pump brand: China brand
PLC Oil pump
6. PRODUCTION SUPPORT TABLE
(1) No power type
(2)Length: 2m
Spare parts
Chain x 1, bearings x1, limit switch x1
