Metal Profile Spandrel Roofing Sheet Roll Forming Machine With Punching Holes

Metal Profile Spandrel Roofing Sheet Roll Forming Machine With Punching Holes
Metal Profile Spandrel Roofing Sheet Roll Forming Machine With Punching Holes Metal Profile Spandrel Roofing Sheet Roll Forming Machine With Punching Holes

Large Image :  Metal Profile Spandrel Roofing Sheet Roll Forming Machine With Punching Holes

Product Details:
Place of Origin: China
Brand Name: CHBEST
Certification: CE BV SGS
Model Number: YX-98
Payment & Shipping Terms:
Minimum Order Quantity: 1set/month
Price: USD6500-25500/set
Packaging Details: 20GP/40GP container
Delivery Time: 5-60days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 20sets/month

Metal Profile Spandrel Roofing Sheet Roll Forming Machine With Punching Holes

Description
Name: Metal Profile Spandrel Roofing Sheet Roll Forming Machine With Punching Holes Thickness: 0.3-0.8mm
Bottom Frame: 35# H-section Steel Motor Power: 3kw
Color: Blue Or Customized Raw Material: GI, PPGI
Roller Material: 45#steel Cutting Blade: Cr12
PLC Brand: Delta Speed: 8-12m/min
High Light:

roofing sheet making machine

,

metal sheet roof roll forming machine



Metal Profile Spandrel Roofing Sheet Roll Forming Machine With Punching Holes



1. The spandrel profile roll forming machine features
Small profile forming machine , Ceiling panel cold Roll Forming Machine is the special equipment for continuous rolling and cold-forming on steel sheet. It adopts coiling steel sheet as the raw material, decoiling, continuous rolling and cold-forming, automatically cut to the size and specification which is required, and output the finished panels. The equipment adopts PLC control, AC frequency and adjusting the speed technology, and it realizes the continuous automatically production, therefore, it is really a new type of energy-saving and high-effective producing equipment for steel structure.



2. Machine details:

(1) Max. Width: 1200 mm
(2) Inner Diameter: Φ450 – Φ550 mm
(3) Out Diameter: 1500 mm
(4) Max. Loading Capacity: 5000 kgs



(1) Material Thickness: 0.3-0.8mm PPGI and GI

(2) NO. of roller Stations: 10groups
(3) Material for Rollers: high grade 45# steel polished and coated with chrome HRC58-62°
(4) Material for shaft: high grade 45# steel polished and coated with chrome HRC58-62°

(5) Diameter of shaft: 70mm

(1)Material for Cut-Off Modular:Cr12 steel after treatment
(2)Hardness for Heat Treatment:HRC58 – 62°
(3)Cut-Off Type: Hydraulic, Automatic Cut-Off
(4) Motor for Hydraulic Stand: 3 kw

(1) Type: PLC Frequency Control System with touch screen
(2) PLC Brand:Delta
(3) Encoder Brand: Omron

(4)Length Error: ±2mm

(5)Language: English and Chinese

(6)Voltage: 380v/50HZ, 3Phase (it depends on customer requirement)

(1) Motor power: 3 kw
(2)Oil type: 46# hydraulic oil
(3) Pump brand: China brand

(1) No power type
(2)Length: 2m

Chain x1; Bearing x 1; limit switch x1





3. Company information:

  Cangzhou Best Machinery Manufacturing co., LTD is specialized in the manufacture of high-end equipment cold bending forming equipment manufacturer,has a professional engineer for technical guidance.Engineers engaged in cold bending mechanical equipment design for more than 20 years,has a wealth of design concept.Can provide users with a special type of design and manufacture.At the same time to sell equipment for installation,guidance,production,commissioning one-stop service.



4. Installation and Training:

① If buyers visit our factory and check the machine, we will teach you how to install and use the machine, and also train your workers/technician face to face.
② Without visiting, we will send you user manual and video to teach you to install and operate.
③ If buyer needs our technician to go to your local factory,please arrange board and lodging and other necessary things.





5.Standard Export Packing.

1.One 40ft container for loading one set machine with manual decoiler;
2. The whole Wiped Anti Rust Oil, PLC controller covered by foam film;
3. Spare parts and some small parts packed in plastic tooling box;
4. All Components Fixed by steel wire with Container.





6. Our Machine Advantage
1).Good quality: We have a professional designer and experienced engineer team.And
the raw material and accessories we use are good.
2).Good service: we provide the technical support for whole life of our machines.
3).Guarantee period: within one year since the date of finishing commissioning. The guarantee covers all the electric, mechanic and hydraulic parts in the line except for the easy-worn parts.
4).Easy operation:All machine cotrolling by PLC computer controlling systerm.
5).Elegant apperance:Protect the machine from rust and the painted colour can be customized
6).Reasonable price:We offer the best price in our industry.

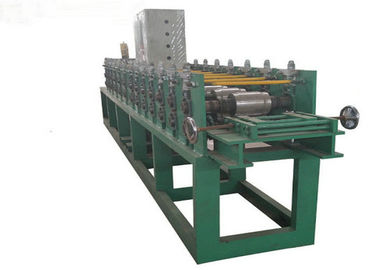

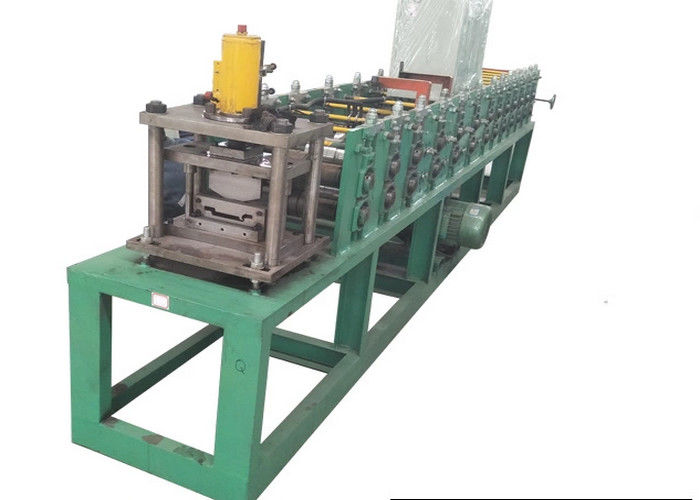

7. Photos for reference:

Metal Profile Spandrel Roofing Sheet Roll Forming Machine With Punching Holes 0
