Newest Design For Wold Wide Market Roofing Sheet Roll Forming Machine With PLC Control

Large Image : Newest Design For Wold Wide Market Roofing Sheet Roll Forming Machine With PLC Control

Product Details:

Place of Origin:	CHINA
Brand Name:	BEST
Certification:	CE
Model Number:	YX800

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	USD6000--10000
Delivery Time:	30 work days
Payment Terms:	L/C, T/T
Supply Ability:	20 sets/month

Contact Now

Newest Design For Wold Wide Market Roofing Sheet Roll Forming Machine With PLC Control

Description

Tile Type:	Colored Glaze Steel	Condition:	New
Weight:	6T Roof Sheet Roll Forming Machine	Use:	Roof/wall
After-sales Service Provided:	Engineers Available To Service Machinery Overseas	Control System:	PLC(imported Brand)
Highlight:	roofing sheet making machine , metal sheet roof roll forming machine

Newest Design For Wold Wide Market Roofing Sheet Roll Forming Machine With PLC Control

Features

-The structure is simple, the appearance is beautiful, because the whole Double Layer Roll Forming Machine uses the shape steel structure.

-Other important parts and components of the equipment are used as accessories of well-known domestic enterprises, thus effectively ensuring the performance of the equipment.

-Automatic fixed-length cutting is adopted with accurate fixed-length positioning, neat plate head without deformation.

-It is easy to install and debug, simple and easy to operate, suitable for both production in the factory and transportation to the site for processing.

-Low noise, no pollution and low consumption of equipment.

SPECIFICATIONS FOR Double Layer Roll Forming Machine
Main structure	Manual Decoiler	Feeding part	roll forming part
	Hydraulic part	computer box	receiving table
	pre cutter	free spare parts	Chain corver
Main performance parameters	roller material :45#steel	solid shaft	4KW main motor
	Shaft material :45#steel .0.05mm chrome plated	Blade material :Cr12	Guide pillar cutter
	Speed :10-15/min	3 meters receiving table	400 H steel frame
Hydraulic system	One set	4KW motor	20 Mpa
	hydraulic cutter	GCR12 blade material	Mould material GCR12
	quenched treated 60-62℃	no distorting or wasting	high level safety factor

Technical Detail

A. General

Suitable Material	Q235 or equivalent
Material Thickness	0.25-0.8 mm
Material Width	914, 1000, 1200, 1220 or 1250, as per the drawing
Dimension	About 5.91.31.1m(LWH) , as per the drawing
Working Space	About 15.92.8m(LW) , as per the drawing
Length of the Sheet	You can set the length according to your need. It is controlled by PLC which can ensure the accuracy of ±1mm.
Cutting	Automatically stop and cutting when it comes to the set length.

B. Components Details

Roller Material	High grade 45# steel. Hard chrome plating, 0.05mm.
Main Frame	350# steel. More stable and no shaking.
Middle Plate	16mm. We use thicker plates to ensure stability of our products.
Forming Steps	11-16, according to the drawing.
Shaft Material	Φ70 mm, high grade 45# steel.
Shaft Material	Treating process: tempering- finish turning, high rigidity, hard to deform.
Cutting Blade Material	Cr12, hardness HRC60-62.
Cutting Blade Material	Treating process: heat treatment- plane abrasion- wire electrode cutting.

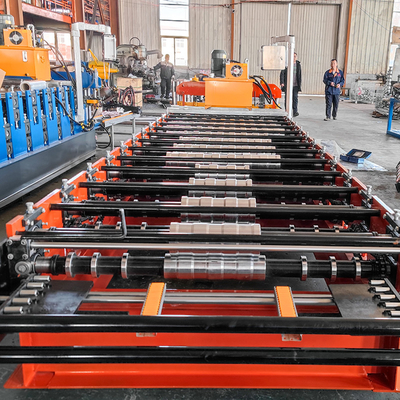

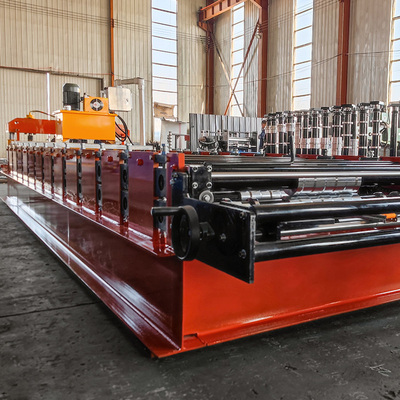

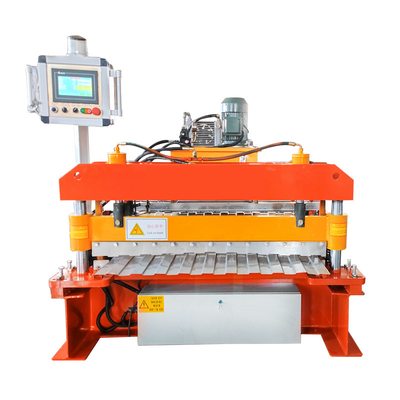

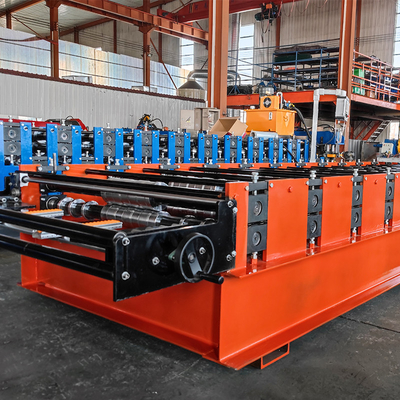

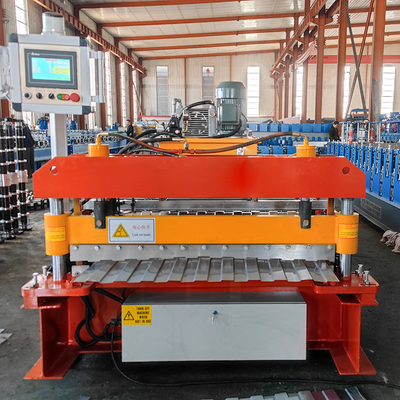

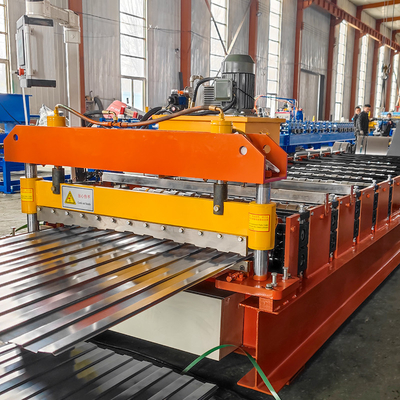

machine picture

Newest Design For Wold Wide Market Roofing Sheet Roll Forming Machine With PLC Control 0
