Product Details:
|
| Weight: | According To The Model | Condition: | New |
|---|---|---|---|
| Warranty: | Warranty | Use: | Roof |
| Control System: | PLC(imported Brand) | Name: | Purlin Roll Forming Machine |
| High Light: | purlin making machine,purlin forming machine |
||

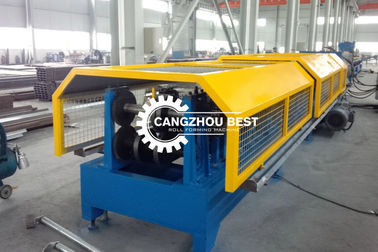

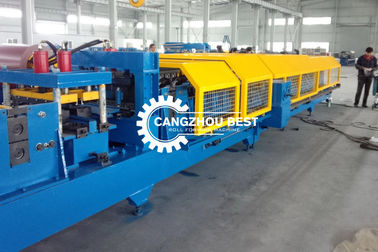

Automatic Changeable C Z Purlin in Line Press Galvanized Metal Roofing Used Roll Forming Machine Machine
Specifications:
1.Suitable material:strip steel
2.working speed:8-10m/min not including punching and cutting
3.main motor power:11.5kw with cycloidal reducer
4.hydraulic station power:7.5kw
5.electric control system:PLC control system with famous brand
6.thickness of material: 1-3mm
7.shaft diameter:80mm
8.roller station:12 stations
9.material expand axis:200-600mm
10.dimension:11*1.3*1.35
11.driving mode:chain
12.electric tension:380V 3 phase 50HZ or as customer's requirements
13.material of roller:high grade 45# forged steel with quenched treatment
14.material of cutting:cr12 mould steel with quenched treatment
15.working time:can be 24 hours
16.workers:1-2 only
|
Product Name
|
Steel purlin roll forming machine
|
|||
|
Profile
|
C shape, Z shape, U shape
|
|||
|
Material
|
Type
|
Galvanized steel coil
|
||
|
Thickness(mm)
|
1.5-3.0mm
|
|||
|
Tield stress(Mpa)
|
Q235-345
|
|||
|
Max.forming speed (m/min)
|
10-15m/min
|
|||
|
Roller material
|
Bearing steel GCr15
|
|||
|
Roller driven type
|
Chain transmission
|
|||
|
Controller
|
PLC
|
|||
|
Operation
|
Touch screen and button
|
|||
|
Hydraulic system pressure(Mpa)
|
20
|
|||
|
Main motor power(KW)
|
18.5-22
|
|||
|
Hydraulic station motor power
|
5.5
|
|||
|
Dimension (L*W*H)
|
about 10000*1000*1500mm
|
|||
|
Weight (KG)
|
about 10000
|
|||
|
Configurations
|
Manual Uncoiler, Guiding Platform, 9 Shaft Strip Leveler, Main Machine Of Roll Forming, Hydraulic Motor, Pre-Punching Device,Pre-Cutting Device, Hydraulic Station, PLC Control, Supporter Table.
|
|
Control System
|
PLC Inverter Encoder Touch Screen
|
|
Main Frame
|
400mm H-Beam
|
|
Total Power
|
22 kw
|
|
Power Supply
|
380V, 3-Phase,50Hz
|
|
Forming Speed
|
12-24m/min
|
|
Roll Station
|
18 stands
|
|
Decoiler capacity
|
3.5 tons
|
|
Roller Diameter
|
80mm
|
|
Effective Width
|
80-300mm
|
|
Feeding Thickness
|
1.5-3.0mm
|
|
Backboard Thickness
|
20mm
|
|
Cutter Standard
|
GCr12
|
|
Roller Standard
|
Gcr15#
|
|
Overall Size
|
About 8500×1000×1400mm
|
|
Total Weight
|
About 10T
|
|
Custom
|
According to customer's requirements
|
NOTE: All technical parameters can be changed according to user s need, and only as a reference.
2.Components specification
(1) Manual Uncoiler
Max.Capacity:5T
(2)Pre- Cutting Device& Pre-Punching Device
It adopts hydraulic motor drive and PLC computer-controlled to fix length of die cutting.
Cutting length tolerance:±2mm
Material:GCr12 with quenched treatment 60-62°C
(3)Hydraulic System
Match equipment: Electro motor, a set of hydraulic tank, a set of hydraulic oil pump, and electromagnetic valve.
Power: 22 KW
(4)Control System
It adopts PLC control system, Color Touch Screen; the target length can be adjusted by it.
Computed mode: automatic or manual
(5)Encoder
The counter gauges length, and modulates pulses.
(6)Simple Stack
It is used for loading the formed plate.
Product Description
FAQ
Q1: Are you manufacturer or trading company?
A1: We are manufacturer
Q2: Do you have overseas engineers?
A2: Yes, we not only provide overseas engineers, but also provide technical training.
Q3: Do you provide customized?
A3: Sure, we can design the equipment according to your request. We are professional sheet metal forming machine designer and manufacturer.
Q4: How does your factory do regarding quality control?
A4: There is no tolerance regarding quality control. Quality control complies with ISO 9001.every machine has to past testing running before it's packed for shipment.
Q5: How can I trust you that machines pasted testing running before shipping?
A5: 1) We record the testing video for your reference
2) We welcome you visit us and test machine by yourself in our factory.
Q6. Do you have after-sales support?
A6: Yes, we are happy to provide advice and we also have skilled technicians available to install or maintain for your in your place.
Q7:Can I visit you factory to check machines on-site? What Should I bring when I visit your factory?
A7: We are manufacturer, and we welcome customers to visit our factory. For special product design and develop, we request you bring a piece of testing material, you can test on our machines on-site.
Q8. What's your payment terms and delivery time?
A8: We prefer 30% as the deposit by T/T, 70% balance payment by T/T after your inspect the machine well and before delivery. Or irrevocable LC at sight is acceptable.
After we receive deposit, we will arrange production. delivery time is about 60-70 day.
