Product Details:
|
| Product Name: | Factory Produce Steel Coils Color Roofing Glazed Tile Roll Forming Machine | Color: | Blue Or As Your Requirement |
|---|---|---|---|
| Machine Dimention: | 6.5mx1.4mx1.4m | Machine Power: | 3kw+4kw |
| Warranty: | 2 Years | Control System: | PLC |
| High Light: | 1250mm Roof Tile Roll Forming Machine,5 tons Roof Tile Roll Forming Machine |
||
| Type | Manual type(standard) |
| Width | 1250mm |
| Capacity | Max 5 tons |
| Inner diameter | φ508-610mm |
| Outer diameter | φ1500mm |

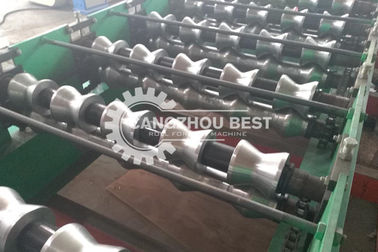

roll forming
| Forming stations | 13-22 stations(according to the profiles) |
| Machine rollers | high grade No.45 forged steel,plated hard chroming with thickness 0.05mm Processing way:cutting--drilling--CNC lathing--quenching--CNC lathing--chroming |

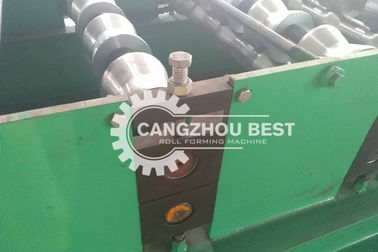

| Machine Shaft | φ70-80mm high garde No.45 steel after treatment, |
| Machine spacers | CNC lathing in high-precision |
| Machine bearings | China Haerbin bearing or SKF international bearing(option) |
| Driving system | 1 inch chain or gear box(option) |
| Machine power | 3kw-11kw(according to the profiles) |
| Machine working speed | 8-12m/min or 10-30m/min(option) |
| Machine adjust type | After machine installation, we will test it ourselves, compare with the profile drawing, the difference is controlled in 0.5mm |
| Type |
bearing sliding type |
| Blade material | Cr12mov quenching and grinding |
| Frame processing |
the whole bottom frame is grinding for high-precision |
| Blade processing | wire-electrode cutting, but the upper balde can not be straight. this is technology |
| Working | Hydraulic type |

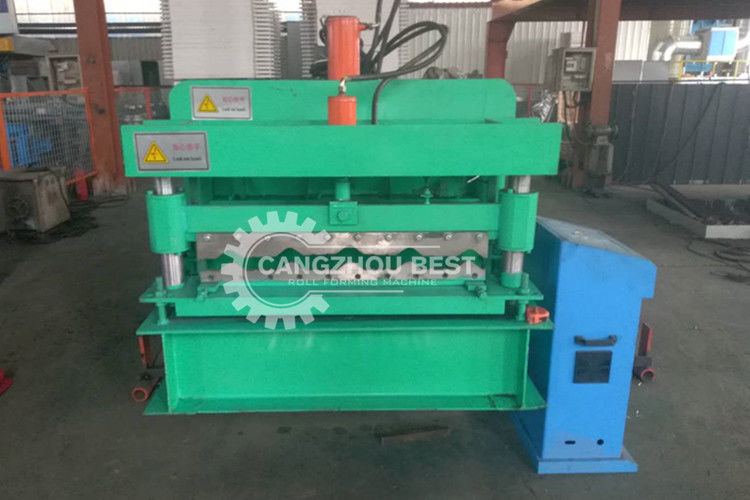

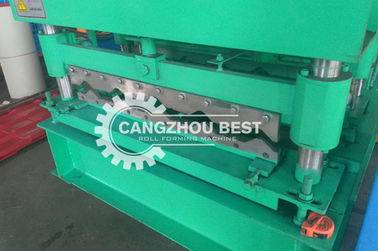

Pressing and cutting device
Stacker
| Type |
Manual |
|
| Length | 1.5m-2m | 6m or 12m |
Hydraulic Pump
Oil type: 46# hydraulic oil
Pump brand: China brand
Output Table
No power type
Length: 2m
Q1. What's your payment terms and delivery time?
A1: 30% as the deposit by T/T in advance, 70% as the balance payment by T/T after your inspect the machine well and before delivery. Of course your payment terms are acceptable.
After we get down payment, we will arrange production. about 30-45 days for delivery.
Q2. Do you have after-sales support?
A2: Yes, we are happy to provide advice and we also have skilled technicians available across the world.
Q3. Do you sell only standard machines?
A3: No, most of our machines are built according to customers specifications, using top brand components.
Q4. What will you do if the machine is broken?
A4: We provide 12 months free warranty and free technical support for the whole life of any machine.
If the broken parts can't repair, we can send the new parts replace the broken parts freely, but you need pay the express cost by yourself. If it is beyond the warranty period, we can negotiate to solve the problem, and we supply the technical support for the whole life of the equipment.
Q5. Can you be responsible for transport?
A5: Yes, please tell me the destination port or address. we have rich experience in transporting.
Q6. How to visit your company?
A6: 1) Fly to Beijing airport, By high speed train From Beijing Nan to Cangzhou Xi (1 hour).
2) Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5 hours), then we can pick up you.
Contact Person: Mr. Arno Hao
Tel: +8618717894416
