Product Details:
|
| Name: | Metal Galvanized Color Steel Profile Ridge Cap Roll Forming Machine 380V | Color: | As Your Require |
|---|---|---|---|
| Material: | PPGI/GI | Warranty: | 2 Year |
| Power: | 3kw | Shaft Material: | 45# Steel |
| High Light: | 3kw Ridge Cap Roll Forming Machine,550mm Ridge Cap Roll Forming Machine |
||

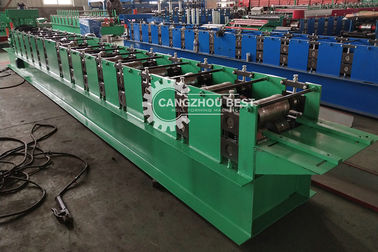

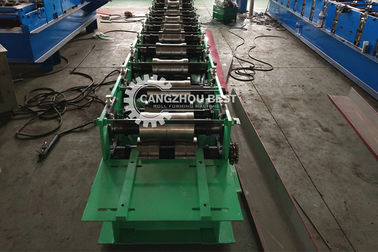

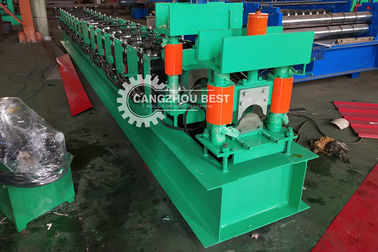

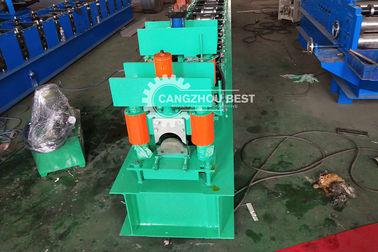

Metal Galvanized Color Steel Profile Ridge Cap Roll Forming Machine 380V
Machine Component
| Decoiler | 1set |
| Roll Forming Machine | 1set |
| Cutting Device | 1set |
| Hydraulic Pump | 1set |
| PLC Control System | 1set |
| Output Table | 1set |
Decoiler
|
Inner Diameter |
450-550mm |
|
Out Diameter |
1200mm |
| Capacity | 3000kgs |
| Type | Hydraulic Or Manual |
Roll Forming Machine
Rolled Material: PPGI and GI
Material Thickness: 0.4-0.5mm
Rollers: 12steps
Material for Rollers: 45# steel polished and coated with chrome HRC55-60℃
Frame panel thickness: 14mm
Bottom frame: 35# H-section steel
Motor Power: 3 kw
Rolling Speed: 8-10 m / min
Driven type: 1.0＂Chain
Diameter of shaft: 70mm
Material for shaft: High grade No.45 steel after treatment Hardness for Heat Treatment: HRC55 – 60℃
Control System
Type: PLC Frequency Control System with touch screen
PLC Brand: Deta
Encoder Brand: Omron
Length Error: ±2mm
Language: English and Chinese
Voltage: 380v/50HZ, 3Phase (it depends on customer requirement)
Hydraulic Pump
Motor power: 3 kw
Oil type: 46# hydraulic oil
Pump brand: China brand
Output Table
No power type
Length: 2m
Packing Detall
| 1 |
1*40 GP container ; main machine naked and fastened with iron wire in the container. |
| 2 | Rollers were painted with oil and packed with plastic film. |
| 3 |
Electrics devices be packed with wooden box.for Standard export packing. |
| 4 |
All Components Fixed by steel wire with Container. |
| Motor Power | 3Kw+3Kw | Operating Voltage | 380V | ||
| Production speed | 8 - 10 m / min | ||||
| transfer method | Chain drive | ||||
| Machine forming shaft |
A total of 10 rows of large shaft: 250H steel, vertical plate 12mm |
||||
| Adjust the set | Using 45 # steel seamless steel pipe finishing | ||||
| Wheel material | 45 # steel hard chrome plated | ||||
| Shaft material | 45 # steel shaft diameter: 65mm solid shaft | ||||
| Forming part | Divided into Seiko wheel rotation molding, forming effect is good, reduce the wheel and the friction between the raw materials, debugging convenient, fast. | ||||
| Numerical control system |
PLC panel, KEL-320 displa |
||||
| counter | The use of domestic photoelectric rotary encoder, A40S6-600-2-12-ACP | ||||
| Cut | 3Kw pumping station, shear pressure type equipment | ||||
| Pressure plate thickness | 0.3—0.8mm | ||||
| Random attachments |
The use of a manual, a gift rack |
||||
| warranty period | 12 months | ||||
Our Service
a. If buyers visit our factory and check the machine, we will teach you how to install and use the machine, and also train your workers/technician face to face.
b. Without visiting, we will send you operation manual book and video to teach you to install and operate.
c. If buyer needs our technician to go to your local factory, please arrange board and lodging and
other necessary things.
a. One year guarantee for whole machine.
b. 24 hours technical support by email or calling
c. If there is any problem found of the machine, we will repair it for free in one year.
