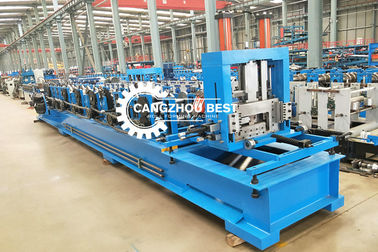

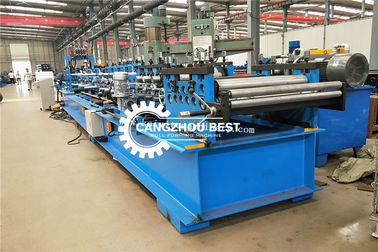

CZ Profile Fast Interchange Making Purlin Roll Former

CZ Profile Fast Interchange Making Purlin Roll Former
CZ Profile Fast Interchange Making Purlin Roll Former CZ Profile Fast Interchange Making Purlin Roll Former CZ Profile Fast Interchange Making Purlin Roll Former CZ Profile Fast Interchange Making Purlin Roll Former

Large Image :  CZ Profile Fast Interchange Making Purlin Roll Former

Product Details:
Place of Origin: CHINA
Brand Name: BEST
Certification: CE
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD35000--40000
Delivery Time: 30 work days
Payment Terms: L/C, T/T
Supply Ability: 20 sets/month

CZ Profile Fast Interchange Making Purlin Roll Former

Description
Tile Type: Colored Glaze Steel Voltage: 380V 50Hz 3phases
Condition: New Weight: 6T Roof Sheet Roll Forming Machine
Use: Roof/wall After-sales Service Provided: Engineers Available To Service Machinery Overseas
High Light:

purlin making machine

,

purlin forming machine

Full Automatic CZ Purlin Profile Fast Interchange Making Roll Forming Machine

Application:

used in the production of frame structure and CZ purlin in the construction industry

Products specification:

CZ purlin width is 80-350mm,height is 50-100mm,board thickness is 1.5-4.0mm

Production line :

Manual uncoiler,Feeding device,Leveling device,punching,roll cold forming,cut device, material collection device, Electronic control.

parameter

Material specification Q235 galvanized steel,hot rolled steel
Material thickness 1-3mm
Working speed 4-8m/min
Cut-off dimension tolerance ≤ ±1mm(L≤3000mm)
Total motor power 27kw
Hydraulic system power 5.5kw
Maximum width of steel strip 450mm
Number of main rollers 18 sets station
Cutting type Hydraulic cutting
Voltage parameter 380,50Hz(60Hz),3P
Hydraulic oil type 46# hydraulic oil
Gear oil type 18 # Double Chain Gear Oil
Occupying space 20× 3×1.5m (L×W×H)m
Roll material GCr15 , QuenchHRC58°-62°
Driving motor Frequency conversion motor drive
Electronic control PLC control
Material of cutting blade Cr12MoV



Techincal Parameter

Item parameters
Coil Thickness (mm) 1.5-3
Max Speed (m/min) 30
Roll Stand 18
Main Motor (KW) Hydraulic Motor, 22
Main Shaft (mm) 100/75/60
Cutting Way Hydraulic cutting
Cutter Material Cr12 Mov
Punching 3 Sets
Control System PLC
Size Change PLC control / Press button
C Z Interchange PLC control / Reverse roller

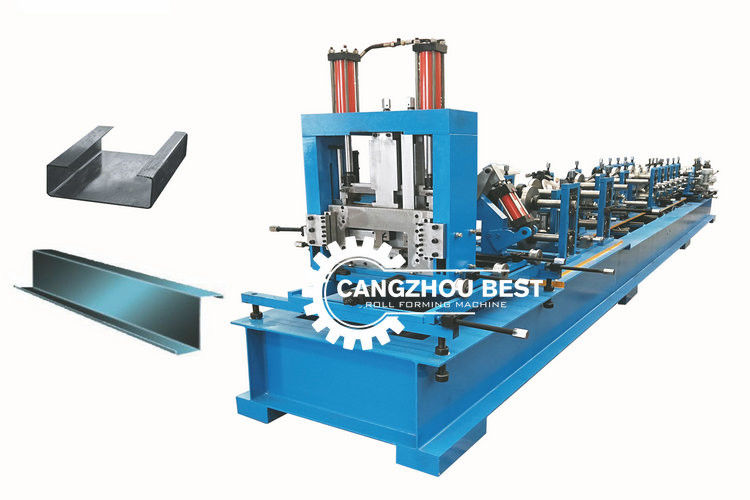

Standard Shape Profile ( Also can be customized)

C Purlin: A=80-300mm ; B=35-80mm ; C=10-25mm ; T=1.5-3mm

Z Purlin: A=120-300mm ; B=35-80mm ; C=10-25mm ; T=1.5-3mm



No.
Name
Details
1
Material
PPGI,GI or as your Customized
2
Profile design
Standard or as custom
3
Size
8500*1500*1500mm
4
Weight
8.6T
5
Speed
10m/min
6
Rollers
High Grade No.45 steel
7
Drive
Chain or Gear
8
Cutter
Cr12
9
Control system
PLC Delta or custom
10
Auto operation
1 or 2 workers



CZ Profile Fast Interchange Making Purlin Roll Former 0CZ Profile Fast Interchange Making Purlin Roll Former 1
