Product Details:
|
| Voltage: | 380V 50Hz 3phases | Condition: | New |
|---|---|---|---|
| Warranty: | Warranty | Type: | Tile Forming Machine |
| Production Capacity: | 10-25m/min | Use: | Purlin |
| High Light: | purlin making machine,purlin forming machine |
||

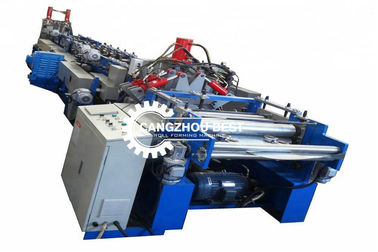

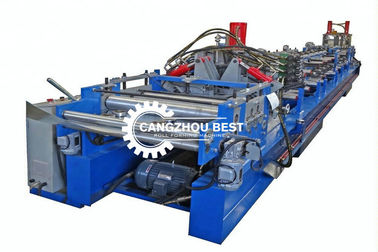

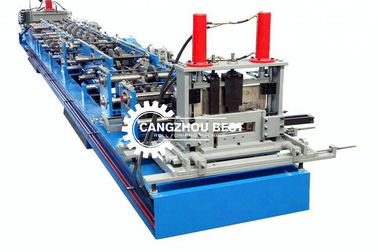

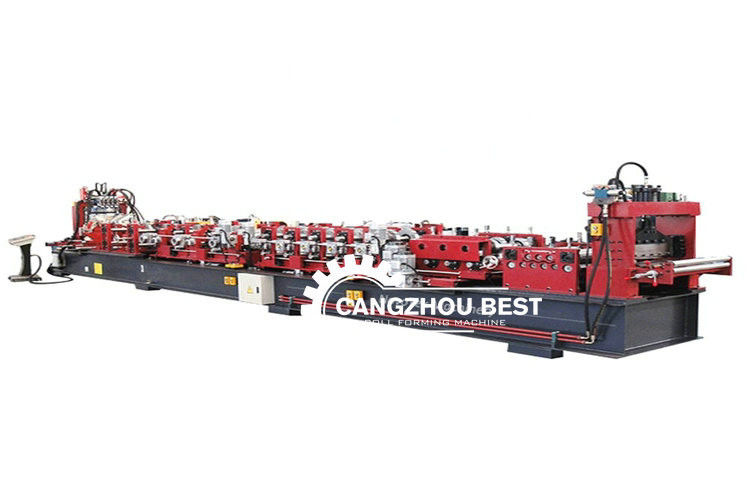

High Speed Fully Automatic Hydraulic Cutting CZ Purlin Cold Roll Forming Machine
product details
| Suitable to process | Glazed Steel Coil |
| Width of the coil | 300mm |
| Rollers | 13rows |
| Dimensions | About 9*1.9*1.3m |
| Power | 20kw |
| Thickness of the plate | 1.5-3mm |
| Productivity | 5--10m/min |
| Diameter of the roller | φ80mm |
| Weight | About 7T |
| Voltage | 380V 50Hz |
| Uncoiler | one setUnpowered rack |
| Feeding platform | one set |
| Rolling material |
Gcr15 |
|
Rolling galvanization thickness
|
0.05 mm |
| Shearing machine | one set |
| Material of the cutting blade | Cr12 |
| Hydraulic system | one set |
| PLC | one set |
| Processing precision | Processing precision |
|
21Main Roll forming system
|
|||
|
Roller Station
|
21 Steps
|
||
|
Roller material
|
Cr12
|
||
|
Forming Speed
|
0-35m/min(Non-Stop)
|
||
|
Shaft material
|
40Cr
|
||
|
Purlin width/height/lip/thickness
|
width:80-300mm
height:30-100mm
lip:8-20mm
thickness:1-3mm
|
||
|
Meterial
|
Q195, Q235,Q345B
|
||
|
Decoiler (Automatic)
|
|||
|
Bearing
|
6T
|
||
|
Others
|
Spindle double holding brake/
Self-driven feeding |
||
|
Servo/Hydraulic System
|
|||
|
Hydraulic System Working Pressure
|
16Mpa
|
||
|
Main pump motor power
|
7.5KW380V 1Set
|
||
|
Voltage Standard
|
380V/3 Phases/50HZ
|
||
|
Control System
|
|||
|
PLC System
|
Panasonic, Japan
|
||
|
Length Controller
|
Omron, Japan
|
||
|
Support table
|
|||
|
Length
|
6M(Fixed Storage Table)
|
||
Main Components:
1.Mechnical decoiler 1 set (can be updated to hydraulic decoiler)
2.Feeding and leveling
Entrance and guide roller, Material 40CR, HRC28-35 surface chrome plated
3.Pre-punching device
Punch on flat sheet. PLC control punch quantity and horizontal position; vertical position adjust by manual. Punching die raw material is Cr12. Punching holes quantity and size are as per customer`s request. Punching bar and punching die can be changed easily.
4.Pre-shear equipment
It used to cut raw materials before roll forming.
5.Main roll forming
Machine base frame adopt H beam welding steel
With leveling bolts in the base to adjust the leveling
Transmission type: by chain
Main motor type: 3 phase asynchronous motor
Speed of forming: 0-30m/min
Roller Material is Cr12 mould steel, 21 groups rollers.
Material of main shaft: 40Cr Shafts of rollers are tooled by grinding machine for two times to ensure the precision of final product. Diameter of main shaft: ø75-85mm
Changing purlin size automaticly
6.Hydraulic cutting device
Adopt our innovative cutting system, CZ integrated & adjustable cutting mold do not need to replace cutting mold when purlin sizes changed.
7.Product support frame
Size: L 6m x W 0.5m
Qty: 1
8.PLC Control System
Control the quantity &punching length& cutting length automatically
The Machine will be stopped while it is punching and cutting
Automatic Length measurement and quantity counting (precision 3m+/- 2mm)
