Product Details:
|
| Type: | Steel Frame & Purlin Machine | Warranty: | Tile Forming Machine |
|---|---|---|---|
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas | Production Capacity: | 10-25 M/min |
| Use: | C&Z | ||
| High Light: | purlin making machine,purlin forming machine |
||

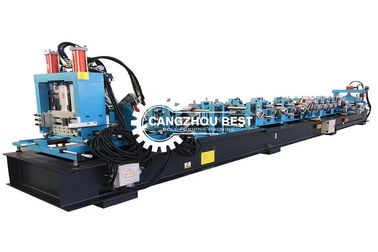

2020 New Type C Z Channel Shaped Steel Roof Purlin Roll Forming Machinery
1)Decoiler
De-coiler Type:Hydraulicauto de-coiler
Weight capacity: Max 3.0T

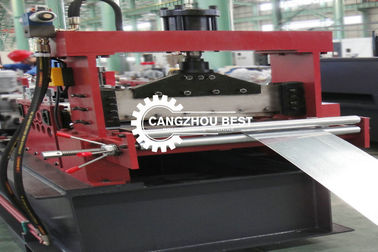

2) Guiding
Guiding device is used to guide and fasten the raw material raw material into roll forming station steadily.

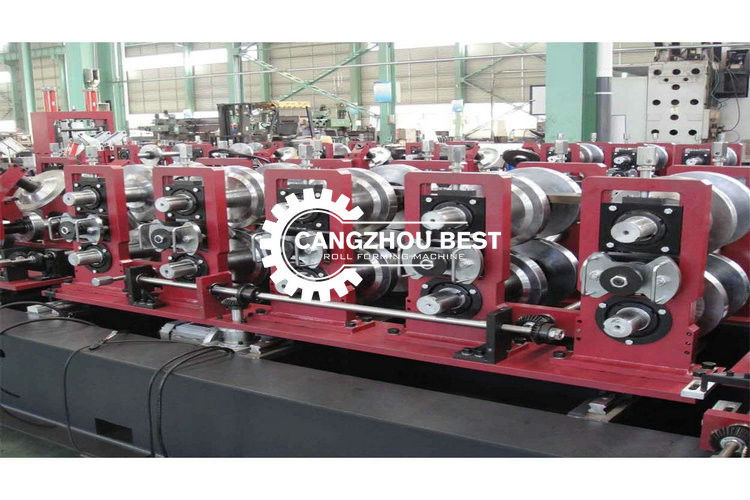

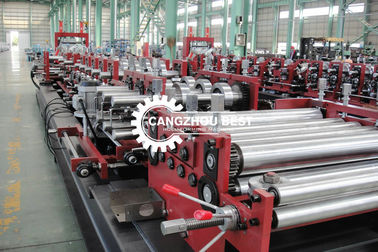

3) Rolling Forming System
Speed of forming: 35m/min
Roller stands : 15rolling stands.
4) Shaft & Frame
Shafts of rollers are tooled by grinding machine for two times to ensure the precisionof final product.
5) Bearing
NTN brand from Japan.
6)Machine Frame
The frame of machine are designed as square tube shape and thickness of frame is 30mm in order to make sure the machine is capable to bear all accessories of this machine.
7) Flare control rollers
Flare device is made of two group rollers with manual adjusting device.
8)Changing sizes: Full-automatic
Machine is able to change purlin size within 1 minutes.
9)Hydraulic Punching
All punching dies are made from Cr12. Driven by hydraulic station.Holes locations are able to set by PC panel.
| Suitable to process | Glazed Steel Coil |
| Width of the coil | 300mm |
| Rollers | 13rows |
| Dimensions | About 9*1.9*1.3m |
| Power | 20kw |
| Thickness of the plate | 1.5-3mm |
| Productivity | 5--10m/min |
| Diameter of the roller | φ80mm |
| Weight | About 7T |
| Voltage | 380V 50Hz |
| Uncoiler | one setUnpowered rack |
| Feeding platform | one set |
| Rolling material |
Gcr15 |
|
Rolling galvanization thickness
|
0.05 mm |
| Shearing machine | one set |
| Material of the cutting blade | Cr12 |
| Hydraulic system | one set |
| PLC | one set |
| Processing precision | Processing precision |
