Product Details:
|
| Voltage: | 380V 50Hz 3phases | Condition: | New |
|---|---|---|---|
| Weight: | According To The Model | Type: | Tile Forming Machine |
| Warranty: | 2 Years | After-sales Service Provided: | Engineers Available To Service Machinery Overseas |
| High Light: | purlin making machine,purlin forming machine |
||
Automatic C shape purlin roll forming machine with PLC Control System
1. Automatic C shape purlin roll forming machine with PLC Control System
---- Produce different purlin size by changing rollers or spacers.
---- No need changing cutter for different size.
---- Easy operation, low maintenance cost
---- Optional Punch hole at any position of purlin web side and flange side
2. Automatic C shape purlin roll forming machine with PLC Control System parameters
| Raw material | |
| material spec | sheet, galvanized steel sheet, aluminum sheet |
| thickness of coil sheet | 1-3mm |
| Machine details | |
| roller material | High grade NO. 45 forged steel with 0.05mm hard chrome plating |
| shaft material | High grade NO. 45 carbon wrought steel |
| cutting blade | Cr12 mould steel with quenched treatment |
| diameter of shaft | 70 mm |
| forming steps | 12 rows |
| productivity | 15-20 m/min |
| hydraulic station power | 22 KW |
| hydraulic pressure | 10-12MPa |
| controlling system | famous PLC computer control |
| material of cutting table | Cr 12 mould steel with quenched treatment |
| appearance size | 7500mm*1150mm*1510mm |
| hydraulic oil | 40# hydraulic oil |
| Electric tension | 380V 50 Hz 3 Phase or as your requirements |
| Machine Components | ||
| No. | Name | QTY |
| 1 | Manual uncoiler | 1 set |
| 2 | Feeding and leveling device | 1 set |
| 3 | Roll forming system | 1 set |
| 4 | Hydraulic punching and cutting | 1 set |
| 5 | Product support frame | 1 set |
| 6 | PLC Control System | 1 set |
3. roll forming machine company profiles
The company is specialized in manufacturing Color steel forming machinery, C and Z purling machine, Glazed tile forming machine, steel structural floor panel roll forming machine, sandwich panel roll forming machine, highway guardrail forming machine, downspout forming machine, car panel roll forming machine, roll shutter door roll forming machine, sheet slitting equipment, and other equipment accessories.
4. FAQ (about our roll forming machine)
1. Does one machine can only produce one style panel profile?
Not exactly.For wider and double layer making machine. It can produce more than 6 kinds of panels.
2. Do you have after sales support?
Yes, we are happy to give advice and we also have skilled technicians available across the world.We needyour machines running in order to keep your business running.
3. How to visit your company?
A. Fly to Beijing airport: By high speed train From Beijing Nan to Cangzhou Xi (1 hour), then we can pick up you.
B. Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi (4.5 hours), then we can pick up you.
4. What can you do if the machine broken?
Our machine's warranty period is 12months, if the broken parts can't repair, we can send the new parts replace the broken parts freell, but you need pay the express cost yourself.if after warranty period, we can through negotiationfor to solve the problems, and we supply the technical support for the whole life of the equipment.
5. Can you be responsible for transport?
Yes, please tell me the destination port or address.we have rich experience in transport.
6. You are Trade Company or factory?
We are trade company but we also have own factories. Building Trade Company is just for exporting various types of cold roll forming machines.
7. Why your price is higher than others?
As we persist on that each factory should put quality at the first place. We spend time and money on developing how to make machines much more automatic, accurate and high quality. We can make sure that our machine could use more than 20 years without any problem. We can provide 2 years free quality assurance.
8. How long the machine could be made?
Normally speaking, welded pipe making machine could be made without 45 working days. If you need machines in a hurry, we can make it for you less than a month.

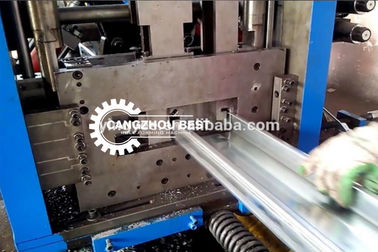

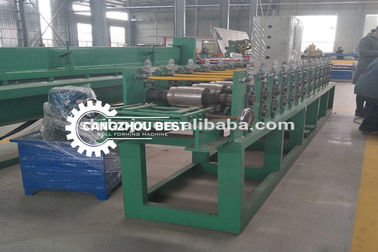

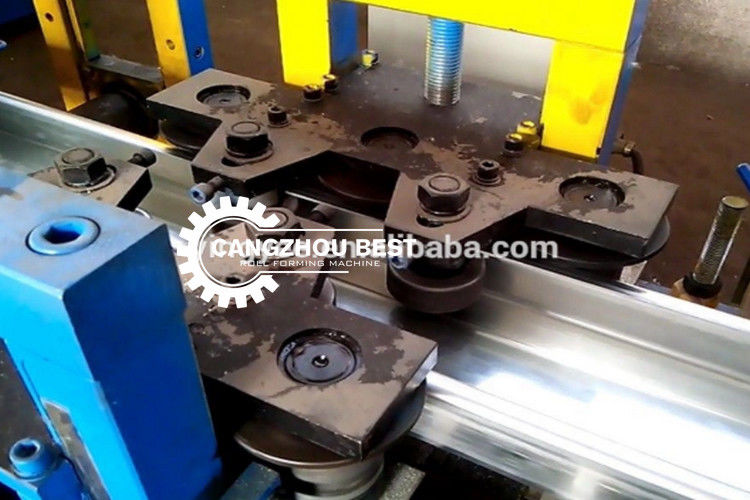

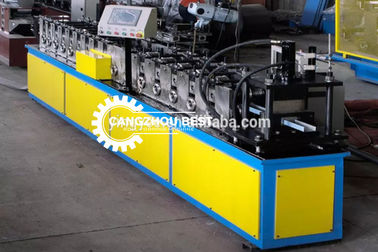

5. Roll forming machine pictures:
