Product Details:
|
| Voltage: | 380V 50Hz 3phases | Condition: | New |
|---|---|---|---|
| Warranty: | 2 Years | Type: | Steel Frame & Purlin Machine |
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas | Name: | Purlin Roll Forming Machine |
| High Light: | purlin making machine,purlin forming machine |
||
Fully Automatic Cold Steel Strip Profile Used C Z Purlin Roll Forming machine
quick detail:
Type: Purlin Forming Machine
Production Capacity: 12-15meter/min
Certification: CE
Condition: New
Tile Type: Steel
Place of Origin: Hebei, China (Mainland)
Voltage: 380v 50hz 3 phase
Dimension(L*W*H): 7.8*1.5*1.3
After-sales Service Provided: Engineers available to service machinery overseas
forming speed: 8-15 m/minute
Diameter of Shaft: 70-90mm
Controlling system: PLC control
warranty: one year
material: prepainted or galvanized steel,aluminum
Middle plate thick: 12-20mm
Control system: PLC(imported Brand)
| Hydraulic wring C/Z purlin roll forming machine | ||
| Items | Specifications | |
| Material of coil | Material Thickness | 2.5-3mm |
| Main frame | Material | 400H-beam steel |
| Wall plate | welded steel plate | |
| Reducer | 8# cycloid reducer | |
| De-coiler | Weight | 3 ton manual decoiler |
| Roll Forming system | Rolling Speed | 0-12 m/min |
| Roller Stations | About 14 stations forming | |
| Roller Material | GCR15 steel with Hard chromium plated on the surface | |
| Diameter of shaft | 80 solid | |
| Shaft Material | 45# Steel Diameter 80mm shaft | |
| Maim Motor Power | 15 kw | |
| Hydraulic cutting Power | 5.5 kw | |
| Cutting | Material Of Cutting | CR12 with quench treatment |
| Tolerance | ±1mm | |
| Cutting blade | hydraulic shearing | |
| Electrical control system | Electric Source | 380V, 50HZ, 3phase |
| Control System | PLC(Delta) with touch screen | |
| Weight | About 6 tons | |
| Way Of Drive | By chain(2.0 inch) link bearing model 6210 | |
| Size of machine | 8.2m*1.2m*1.2m | |

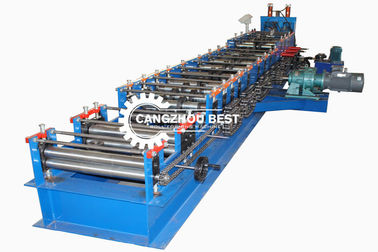

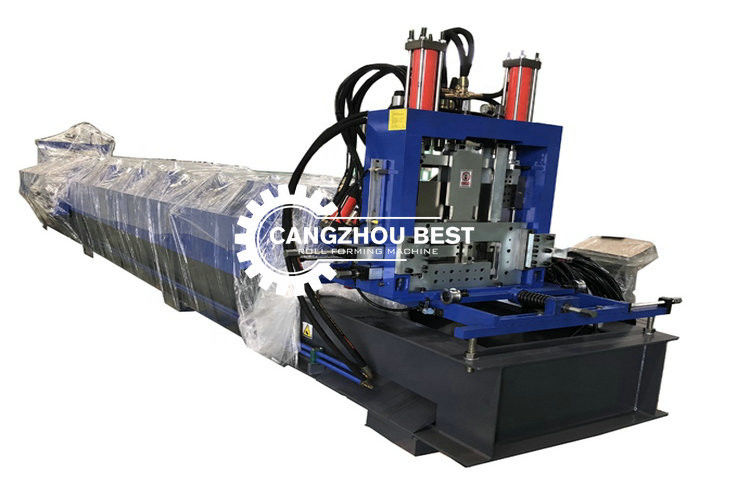

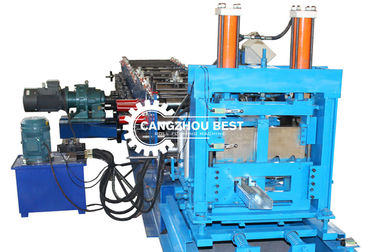

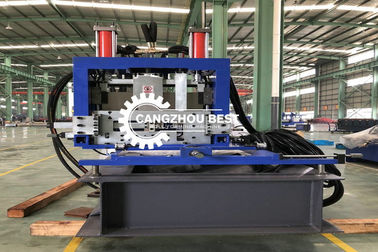

machine pictures:
