Product Details:
|
| Voltage: | 380V 50Hz 3phases | Condition: | New |
|---|---|---|---|
| Warranty: | 2 Years | Type: | Steel Frame & Purlin Machine |
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas | Use: | C&Z |
| High Light: | purlin making machine,purlin forming machine |
||
CZ100 - 300 Purlin Roll Forming Machine Automatic Adjustable Type
| C/Z Purlin Roll Forming Machine | ||
| 1.Raw material | Thickness | 1.5-3mm |
| 2.Decoiler | Operation | automatic |
| Weight apacity | 5-9t | |
| 3.Main body | Roller station | 12-15 rows |
| Diameter of shaft | 80-120mm | |
| Material of rollers | cr12/gcr15 | |
| Material of shaft | cr12/gcr15 | |
| Frame | 25-30mm | |
| Chain | 1.97-13.28inch | |
| 4.Cutter | Operate | auto |
| Blade Material | cr12mov | |
| 5. Power | Voltage | customized |
| Power | 22kw | |
| 6.Control system | Electric Box | customized/Delta |
| Language | english chinese/customzied | |
| 7.Forming Speed | Forming Speed | 15-20m/min |
Technical parameter
| NO. | Item | Unit | Parameter | Remark | |
|
1 |
Material | Type | galvanized sheet,strip steel,etc | ||
| Strength of material sheet | Map | ≥350 | |||
| Thickness of material sheet | mm | 1~3 | Adjustable | ||
| 2 | Profile sizes | mm |
As the profile pictures shows |
Adjustable
|
|
| 3 | Production speed | m/min | Forming speed:about 6m/min | Adjustable | |
| 4 | Material of roller | GCr15 quenching treatment | |||
| 5 | Drive type | Gearbox driven | |||
| 6 | Motor Power | kw | About 68Kw | ||
| 7 | Electric control system | PLC variable frequency control | |||
| 8 | Dimensions(Length*width*height) | m | 35X4X3.9 | ||
Technial Specification
|
Profile
|
Web
|
Flange
|
Lip
|
Thickness
|
|
C
|
80-300mm
|
40-80mm
|
10-25mm
|
1.2-3.2mm
|
|
Z
|
120-300mm
|
40-80mm
|
10-25mm
|
1.2-3.2mm
|
Machine List
| Machine list | 3 ton passive de-coiler | 1 set |
| Feeding with guide | 1 set | |
| Main roll forming machine | 1 set | |
| PLC Control system | 1 unit | |
| Hydraulic station | 1 unit | |
| Stop cutting device | 1 unit | |
| Safety cover | 1 unit | |
| Out table | 2 units |
Working Flow of Roll Forming Machine
De-coiler—→Level device —→Main roll forming machine—→Hydraulic cutting—→ Run out table

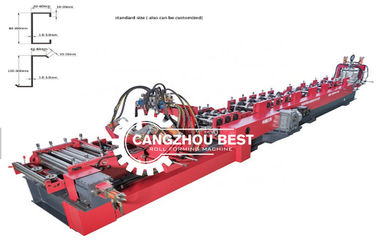

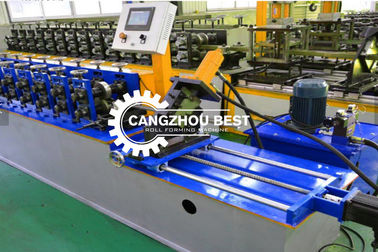

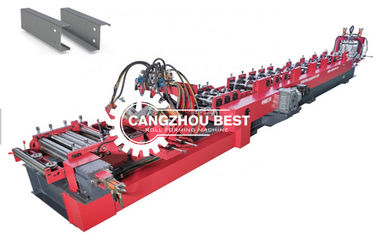

MACHINE PICTURE
FAQ
1.Q: Are you manufacturer or trading company?
A: We are manufacture and trading company.
2.Q:What info you need before you make the proposal?
A:The pipe diameter and thickness range which you need or the profile drawings, material information, your special requirements.
3.Q: what is the MOQ?
A: One set
4.Q: Do you provide installing and debugging overseas?
A: Overseas machine install and worker training services are optional.
5.Q: Can you make the machine according to my design or prototype?
A: Yes, we have an experienced team for working out the most suitable design and production plan for the machine that you are going to book with us.
6.Q: How does your factory do regarding quality control?
A :There is no tolerance regarding quality control. Quality control complies with ISO 9001.every machine has to past testing running before it's packed for shipment.
7.Q: How can I trust you that machines pasted testing running before shipping?
A: 1) We record the testing video for your reference
2) We welcome you visit us and test machine by yourself in our factory.
8.Q: What about our after-sale service?
A: we provide technical support on line as well as overseas services by skillful technicians.
9.Q: What should I do if I just start a new business?
A:Contact us immediately ,we provide free consultant pre-sales service.Also we can help you to solve the material(steel coil)purchase,worker train,international market price.
10. Q:Can I visit you factory to check machines on-site ? What Should I bring when I visit your factory?
A: We are manufacturer, and we welcome customers to visit our factory. For special product design and develop, we request you bring a piece of testing material, you can test on our machines on-site.
