Product Details:
|
Product Name: | Best Automatic Safety Road Steel W Beam Making Machine Highway Guardrail Roll Forming Machine | Color: | Blue Or As Your Request |
---|---|---|---|
Coil Diamter: | 450-550 | Control System: | PLC |
Cutting Type: | Hydraulic | Warranty: | 2 Years |
High Light: | guardrail roll forming machine,800mm W Beam Making Machine |
Best Automatic Safety Road Steel W Beam Making Machine Highway Guardrail Roll Forming Machine
Machine Component
De-coiler | 1 set |
Leveling device | 1 set |
Forming machine | 1 set |
punching device | 1 set |
Cutting device | 1 set |
PLC control box | 1 set |
Hydraulic pump station | 1 set |
Production support table | 1 se |
Decoiler
Type | Manual type(standard) | Hydraulic type(option) |
Photo | ||
Width | 600mm | 800mm |
Capacity | 5000kgs | 5000kgs-15000kgs |
Inner diameter | 450-550mm | 450-550mm |
Outter dimater | 1500mm | 1800mm |

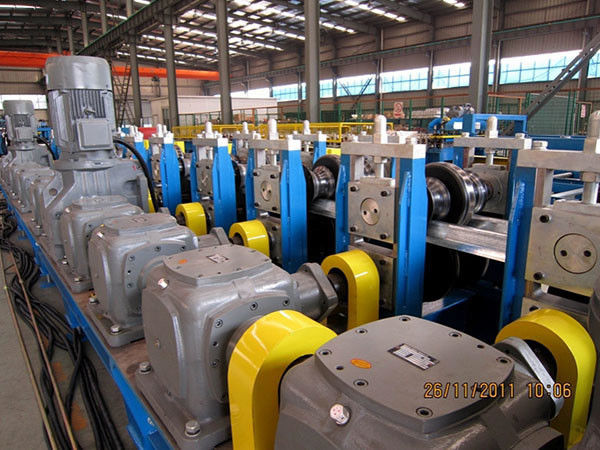

roll forming machine
Item | Parameter detail | ||||||
Processing Material | GI and Black Coils | ||||||
Material thickness | 3-4mm(standard), 3-5mm(customized) | ||||||
Machine frame | 360#H steel, Adopt diagonal line welding, leveling instrument measurement to make sure the final frame is high-precision | ||||||
Machine siding panel |
|
||||||
Forming stations | 14-18 stations (according to the material thickness) | ||||||

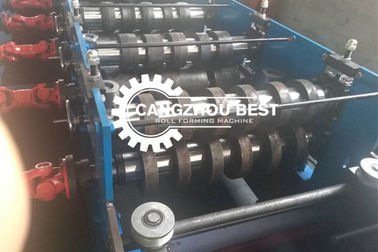

Machine rollers |
high grade Gcr15 forged steel(bearing material), Hard quenching and hard chroming with thickness 0.05mm |
||||||
Machine Shaft | φ90-100mm high garde No.45 steel after treatment, | ||||||
Machine spacers | CNC lathing in high-precision and wire-electrode cutting | ||||||
Machine bearings | China Haerbin bearing or SKF international bearing(option) | ||||||

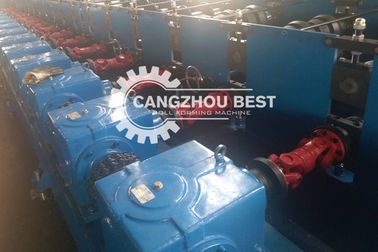

Driving system | 2 inch chain or gear box(option) | ||||||
Machine power | 30kw-15kw(according to the size and thickness) | ||||||
Machine working speed | without punching:8-12m/min or 10-30m/min(option) | ||||||
Machine testing method | After machine installation, we will test it ourselves, compare with the profile drawing, the difference is controlled in 0.5mm |
Punching device
Item | Parameter detail |
Photo | |
Frame processing | the whole levelling surface is made by drilling machine |
Mould material | Cr12mov |
Mould processing | wire eletrode-cutting for the mould shape, it will save pressure |
Hole size | According to your request |
Hole number | According to your request |
Pressure | 20Mpa |

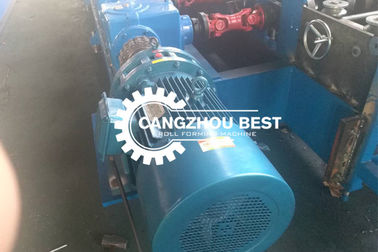

Hydraulic pump
Main Item | Parameter detail |
Motor |
3kw China brand or according to your request |
Pump | China brand or according to your request |
Solenoid valve | China brand or according to your request |
Cooling system |
Cooling fan |
Re-sale Service :
1. Send you invitation letter, if you want to visit our factory and check the machines.
2. Good Quality + Competitive price + Quick Response + Reliable Service.
Selling Service :
1. Email the production schedule and make prompt delivery.
2. Count the cheapest shipping cost, look for the fastest forwarder and send relevant documents promptly.
3. Be here for your service at any time.
After-sale Service :
Any questions, contact us by WhatsApp or Telephone.
1) Q: Do you have after sales support?
A: Yes, we are happy to give advice and we also have skilled technicians available across the world. We need your machines running in order to keep your business running.
2) Q: How do your machines compare with other big companies in this market?
A: We are up to date with the latest technology and improve our machines accordingly
3) Q: Will you deliver the right goods as ordered? How can I trust you?
A: Yes, we will. The core of our company culture is honesty and credit. AOFA is ALIBAB’s Gold supplier with BV assessment and CE certificate.
